Monday, January 28, 2008
Ninja JX21 B-01 buggy motor Categories - Engines, Exhausts, Ninja, Off Road, Products , trackback

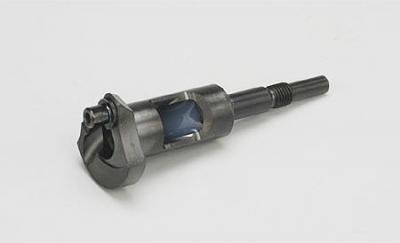

The other day we wrote about the new O.S. made Ninja motors, and today Mugen have placed images and specifications of their new buggy motor online. Featuring a lightened and hardened 14mm crankshaft, the JX21 B-01 is a 5 port motor that is said to output 2.48 bhp at 33,000 rpm. Expect to see the full range on display at next months toy fair in Nuremberg.
Click here to see the full specs and more images…
Specifications:
Engine displacement - 3.46 cc (0.211 cu.in.)
Bore - 16.6 mm (0.64in.)
Stroke - 16.0 mm (0.630in).
Rev range - 3,000 - 40,000 r.p.m.
Output - 2.48 ps / 33,000 r.p.m.
Ports - 5 port

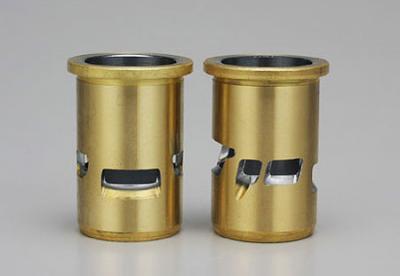

Sleeve type - ABC
Crank shaft diameter - 14mm

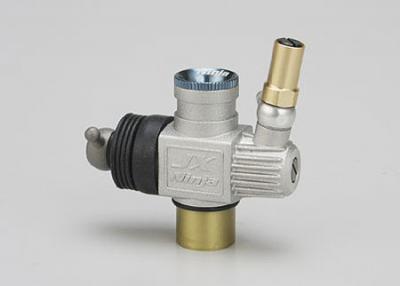

Carburettor diameter - 8mm with adjustable venturi
Carburettor diameter - Aluminium
Carburettor adjustment - 2 needles
Weight - 374 grams
Source: Mugen [mugenseiki.com]
