Etronix PowerPal 4 Multi Balance charger/discharger

Categories - Balancer, Chargers, Discharger, Electric, Products - trackback

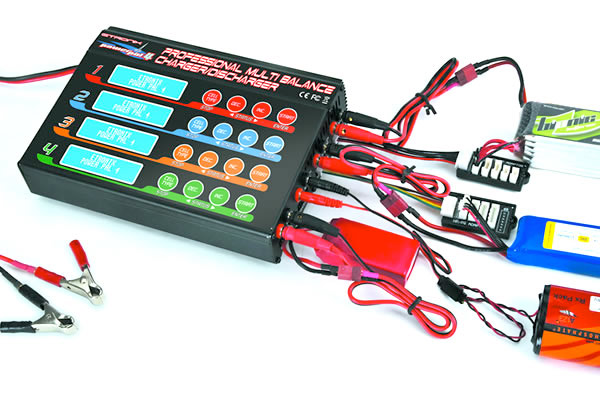

The new PowerPal 4 charger from Etronix allows you to plug 4 batteries into one charger simultaneously and will intelligently and automatically charge all 4 of them to their maximum capacity. The batteries being charged do not even need to have the same configuration and you can connect different types, such as Ni-Mh, Ni-Cd, LiPo & LiFe batteries, into any of the charging ports. PowerPal 4 has a maximum output power of 200W and as a result it can charge or discharge 15 cells of NiCd/NiMH at 5.0A and 8 series of Lithium Batteries with maximum current of 5.0A. Furthermore the cooling system is so efficient that can hold such power output without any trouble of ruining the CPU or the operating program. When using a 12v car battery source, input power monitoring will avoid damage to the battery by ending charging automatically if the voltage drops below the required limit.

Specifications
- Operating voltage range – DC 11-15V
- Power Source – 12V DC (recommended 20-30A 12V Power Supply)
- Charge Power – 50Watts, current is regulated accordingly (e.g. 11.1V battery, charge current approx. 4.5A)
- Discharge Power – 5 watts, current is regulated accordingly
- Cell Count – 1-15 NiCd/NiMH cells, 1-6 LiPo/LiIon/LiFe cells, 1-10 Lead acid (2-20V)
- Current Drain for balancing lithium – 300mA
- Charger Dimensions – 225.4 x 158.6 x 62.4mm
- Net Weight – 1.09kg

Source: CML [cmldistribution.co.uk]
