AMR Tech Gears 10 buggy

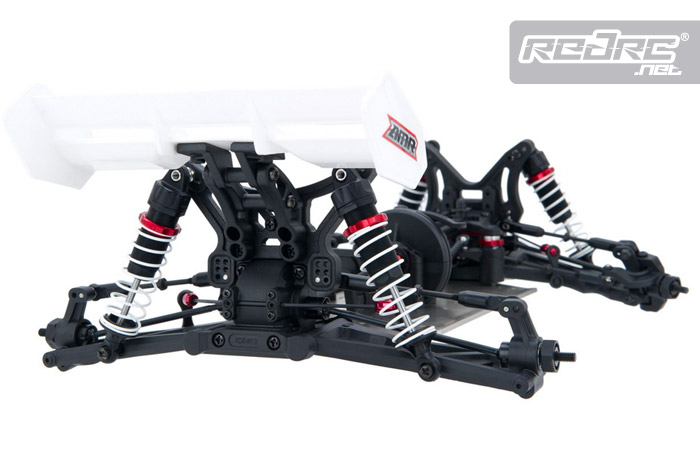

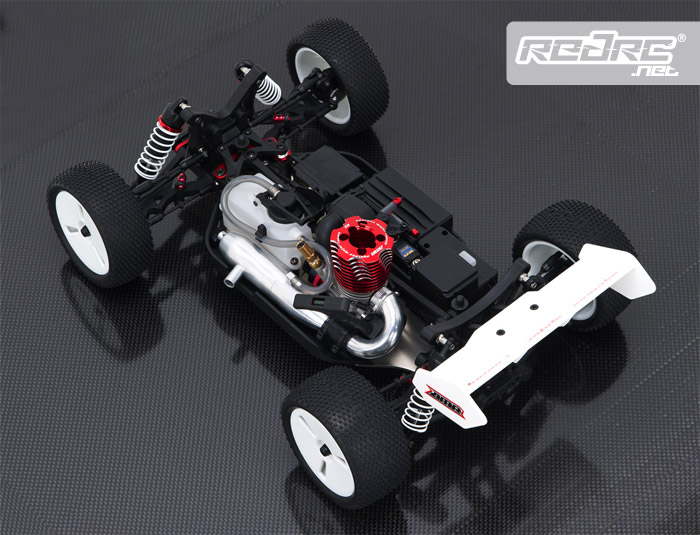

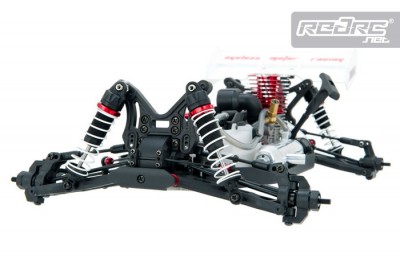

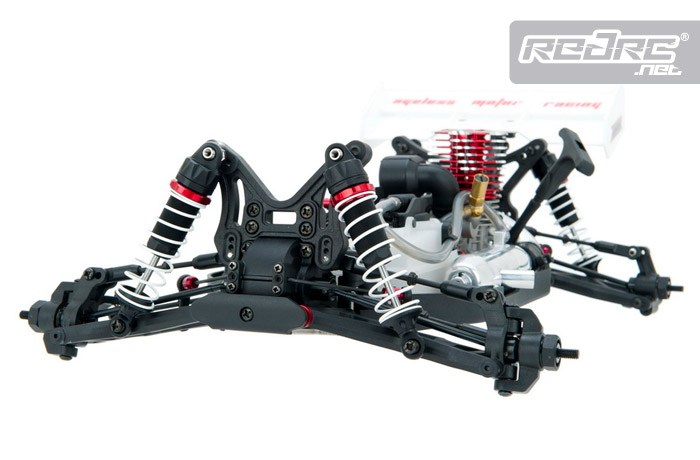

AMR Tech have released their new Gears 10, 1/12th scale nitro powered buggy. Featuring a long stroke suspension design, shaft driven 4wd, gear differentials, limited slip centre clutch, big bore shocks, a .10 CZ pull start engine and full adjustability, this is highly spec’d and highly capable off roader.

Features
- Shaft-driven 4WD
- Smaller gear differential units
- Center limited slip clutch
- Adjustable front & rear down stop
- Adjustable rear toe angle &kick-up angle
- 8 degree approach angle
- 4 degree departure angle
- Long stroke suspension design
- 3 shoe type clutch
- Big bore shocks
- 58cc fuel tank / bubble filter inside
- Dirt-proof receiver & battery box
- Turnbuckle steering rod & suspension tie rod
- Transmission system all ball bearing
- Wing mount adjustable angle
- Alum. Muffler & manifold included
- Front / rear universal swing shaft
- Can use the starter box in the market to start GEARS 10
- Front/ rear anti-roll bar
Engine:
- 10 CZ engine-pull start
Servo:
Steering: Sanwa standard servo
Throttle: Mini size coreless digital servo (Metal gear)
Starter set:
- 500cc fuel bottle, C type battery glow plug igniter & Plug wrench

Specifications
Wheel Base: 240~243mm
Width: 250mm
Tire & wheel type: 1/10 EP Buggy type
Gear Ratio: 11.02:1 ~ 13.46:1
Engine: 10 CZ Engine pull start ( rear exhaust)
Weight: 1500g (RTR)
Length: 370mm(from front tire end to rear wing end)
Height: 120mm
Spur gear: 75T
Clutch bell (pinion): 20T
Clutch bell (pinion) Option: 18T ~ 22T

Source: AMR Tech [amrtech.com.tw]
