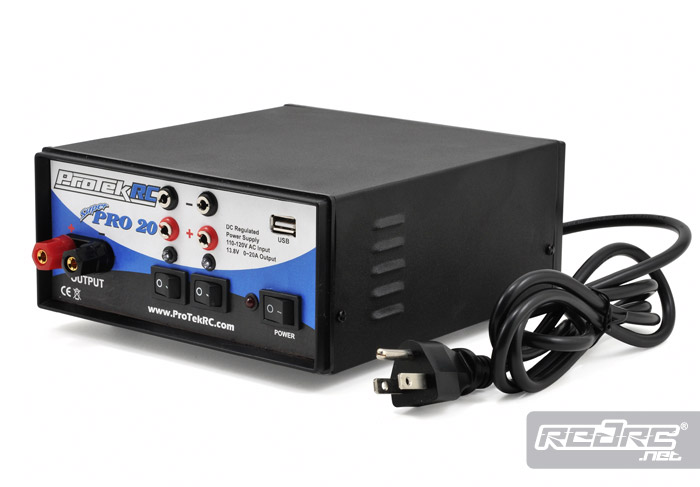

ProTek Super Pro 20 regulated DC power supply

A Main Hobbies today announced the ProTek Super Pro 20 regulated DC power supply with USB charging port and a total of three power supply outputs. This is the same as our super powerful “Pro 20″ power supply, with the addition of two individual 16 Amp outputs, each individually switched, allowing you to easily operate all your equipment from one power supply eliminating the added expense and hassle of a separate distribution box. Using Switch Mode technology, the Super Pro 20 provides a higher level of efficiency and reduces the overall weight and size of the power supply compared to other systems with similar features. In addition, the smooth output current makes it ideal for any item that requires a 20A, 12V power source.

Features:
- One primary 20 Amp 4.0mm Banana Plug/Binding Post output
- Two individually switched 16 Amp 4.0mm banana plug outputs!
- One 500mAh USB Charging Port
- Internal cooling system
- Short circuit protection
- Regulated output voltage
- LED power on indicator
- Short circuit & current protection

Specifications:
Input Voltage: 110-120V
Output Voltage: 13.8V DC +/- 5%
Wattage: 260W
Current: 0-20 Amp
Frequency: 50 / 60 Hz
Max. Efficiency: 85%
Output Connections:
(1) High Output 20 Amp 4mm Banana Plug/Binding Post Output
(2) 16 Amp Switched 4mm Banana Plug Outputs
(1) 500mAh USB Output
Size (LxWxH): 190x170x85mm
Weight: 2.86 lb (1.3 kg)

Source: A-Main Hobbies [amainhobbies.com]
