August 19, 2011

Core RC UAC-50 universal digital charger

CoreRC-UAC50-Charger

The Core RC UAC-50 universal digital charger is a multifunction balance and rapid charger/discharger controlled by a high performance microprocessor and specialised operating software. Making use of multi voltage input of 110-240v AC or 12v DC the multi-chemistry charger is compatible with all types of batteries including LiPo, Li-lon, LiFE, NiMH, NiCd, and Lead-Acid cells. The software programs include charing with up to 6 amps, discharging, balancing, cycling and storing. A JST XH balancer board and as well as adapter leads are included.

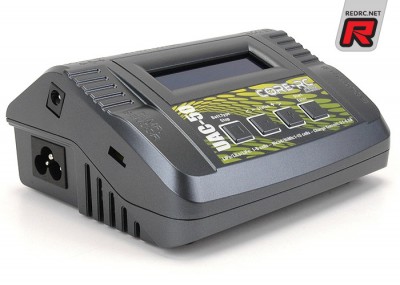

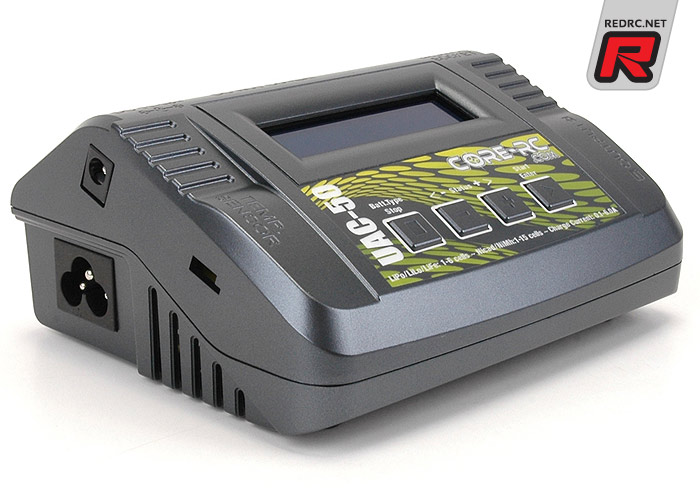

CoreRC-UAC50-Charger-side

Specification
– AC Input: 110V-240V
– DC Input_ 11V-18V
– Max. Charging Power: 50Watts
– Max. Discharging Power: 5Watts
– Charge current range: 0.1-6A
– Discharge current range: 0.1-1A
– NiCd/NiMH Battery Cell Count: 1-15 cells
– LiPo/Li-Fe/Lilon Cell Count: 1-6 cells
– Pb Battery Voltage: 2-20V
– Temperature sensor available
– Balance: 2-6 cells
– Case: Plastic with gunmeatal chrome
– Display: 16×2 character blue backlit display
– Dimension: 135mm X 112mm X 61mm
– Multiple leads included for all applications
– UK 3 Pin plug lead for 240v

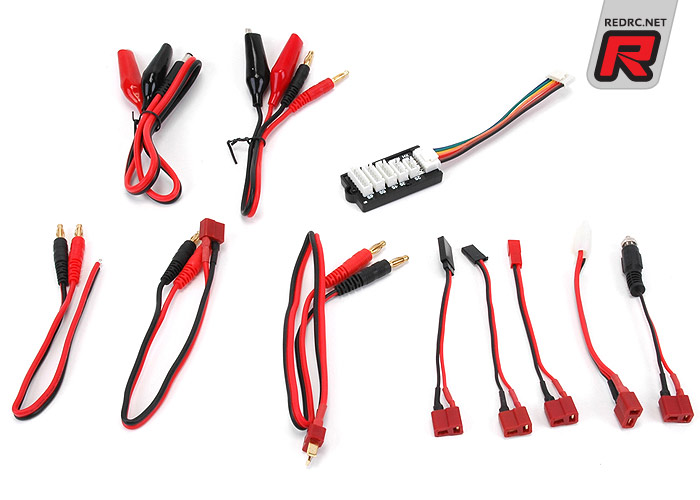

CoreRC-Wires

Source: Core RC [racing-cars.com]
