October 31, 2011

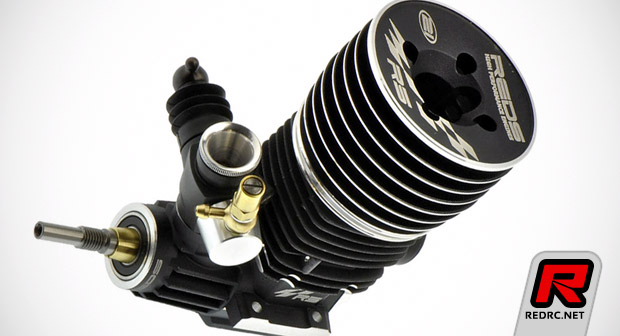

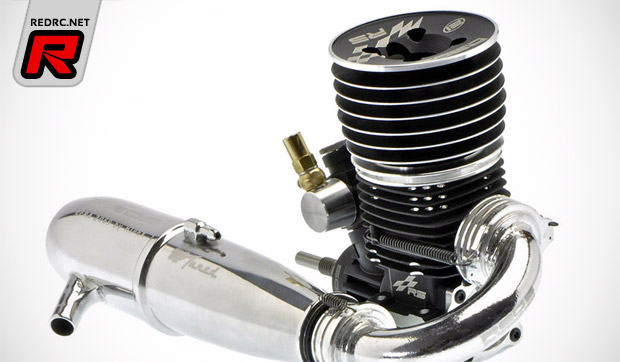

Reds Racing R5 buggy engine

Reds Racing R5 buggy engine

Reds Racing have released their new R5 .21 Buggy engine, a 5 port powerful and lightweight motor. Thanks to the new long needle carburetor and its new ABC liner configuration, the engine is extremely driveable and is suitable for all types of track. It also features a CNC machined billet piston, hard chromed liner, a separate cooled combustion chamber and Swiss main bearings.

Reds Racing R5 buggy engine

Features
– Ultra-light, only 348g

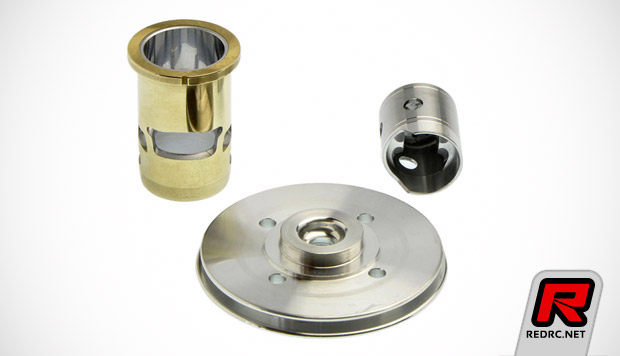

– 5 Ports hard chromed liner
– CNC machined billet piston
– New separated and cooled combustion chamber
– Lightweight cooling head

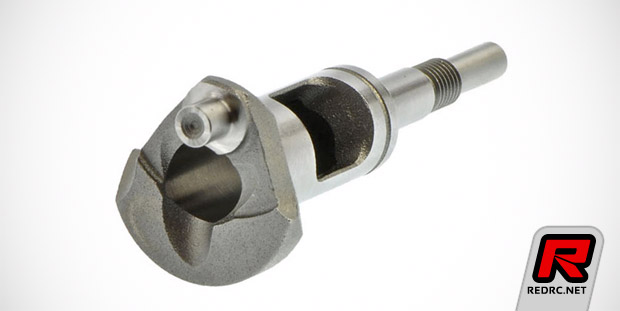

– 14mm crankshaft
– Knife edged aerodynamic connecting rod
– All Swiss Made ball bearings

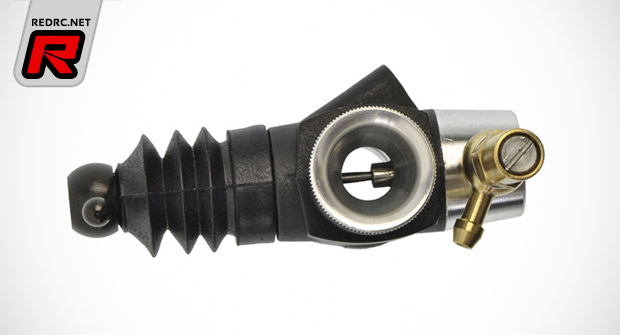

– New long needle composite slide carburetor

Specifications
– Displacement: 3,5 cc
– Bore: 16,26 mm
– Stroke: 16,80 mm
– Weight: 348 g

Reds Racing R5 buggy engine

Reds Racing R5 buggy engine

Reds Racing R5 buggy engine

Source: Reds Racing [redsracing.it]
