Sonic V.21T 3.5cc on-road engine

In a few days Sonic Nitro Engines will release the all new Sonic V.21T 3.5cc on-road engine which is produced by Picco Micromotori and all components have been made from the finest materials to ensure high durability and reliability. Equipped with a 7+2 ports sleeve with ‘teardrop work’ and a CNC machined flat piston, the engine provides great power over the entire RPM range while having a very efficient fuel consumption. The 14mm turbo crankshaft is equipped with two high density weights to improve the overall balancing and filled with a silicone insert to reduce the inertia and improve the fuel flow. The special back plate, the optimized crankcase and the “knife edged” aerodynamic connecting rod help even more to reduce turbulence inside the engine. A special turbo combustion chamber with a cooling fin and the super lightweight cooling head ensure best heat dispersion to keep the engine temperature at a moderate level. High quality Swiss ball bearings, a modern composite valve carburetor and two aluminium venturis (8mm + 9mm) complete this new high competition engine.

Features:

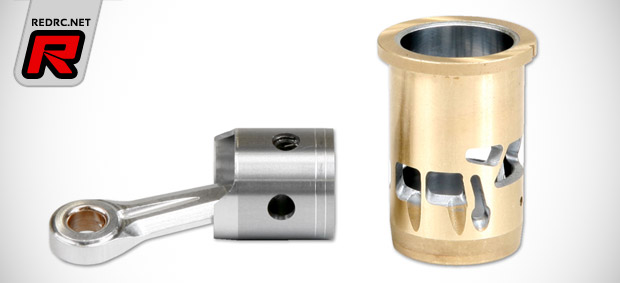

– 7+2 port hard chromed sleeve
– CNC machined flat piston

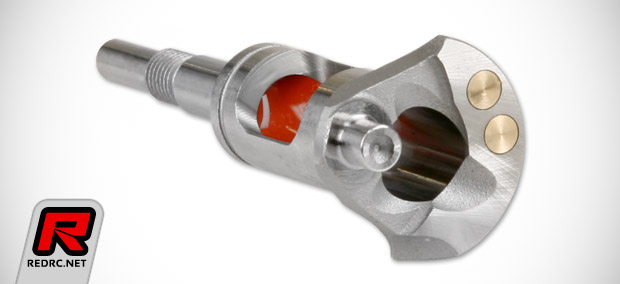

– Balanced 14mm turbo crankshaft with silicon insert
– Aerodynamic “knife edged” connecting rod

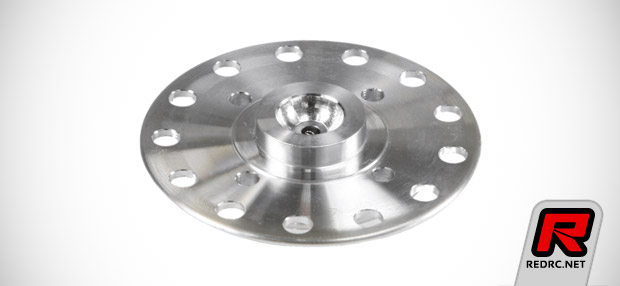

– Modified backplate for improved fuel flow

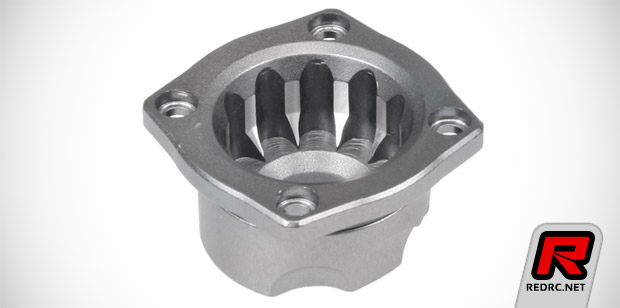

– Turbo combustion chamber with cooling fin
– Lightweight cooling head for low C.G.
– 14mm high quality Swiss main bearing

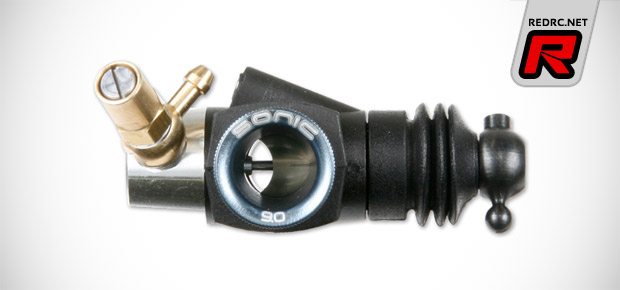

– Composite slide valve carburettor
– 8mm and 9mm aluminium venturi

Technical data:
– Displacement: 3,49ccm
– Max power: 2,85 HP @ 37.500 U/min
– Bore: 16,26mm
– Stroke: 16,80mm
– Ports: 7+2
– Front bearing: 7x19x6mm
– Rear bearing: 14×25,4x6mm
– Glowplug: Sonic P7TC turbo plug

Source: Sonic Engines [sonice-engines.com]
