January 17, 2014

Xpert RC SM-HV Brushless full metal servos

Xpert RC SM-HV Brushless full metal servos

Xpert RC have released their new SM-HV Brushless full metal servos for 1/8 buggy & truggy. Featuring a full metal case as well as metal gears both feature a start tone, soft start as well as over current and over heat protection. The SM-7701-HV is the stronger of the two servos at 31 kg/cm at 8.4V while the SM-6601-HV is the faster at 0.118 sec at 8.4V to travel 60 degrees.

SM-7701-HV
Standard Size: 40*37.8*20mm
Input voltage: DC 8.4/7.4/ 6.0V
Torque: 31/27.31/22.14 kg-cm; 430.28/379.06/307.3 oz-in@8.4/7.4/6.0V
Speed(60°): 0.148/0.158/0.196 sec@8.4/7.4/6.0V
Gear: 7075 Metal Gear
Motor Type: Brushless Motor
Stall current: 4.4A @7.4V/8.4V
Bearing: 2BB

Xpert RC SM-HV Brushless full metal servos

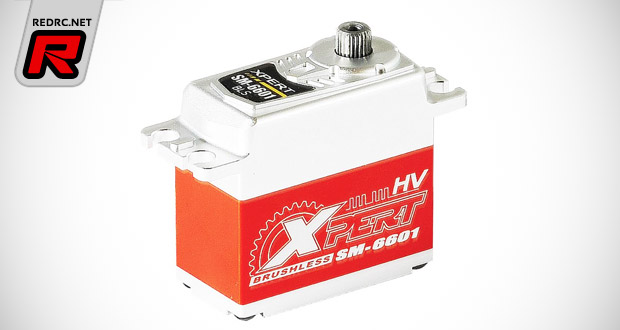

SM-6601-HV
Standard Size: 40*37.8*20mm
Input voltage:DC 8.4/7.4/ 6.0V
Torque: 26 / 22.91 / 18.57 kg-cm; 360.88/317.93/257.75 oz-in@8.4/7.4/6.0V
Speed(60°): 0.118/0.125/0.154 sec@8.4/7.4/6.0V
Gear: 7075 Metal Gear
Motor Type: Brushless Motor
Stall current: 4.4A @7.4V/8.4V
Bearing: 2BB

Source: Xpert RC [xpert-rc.com]
