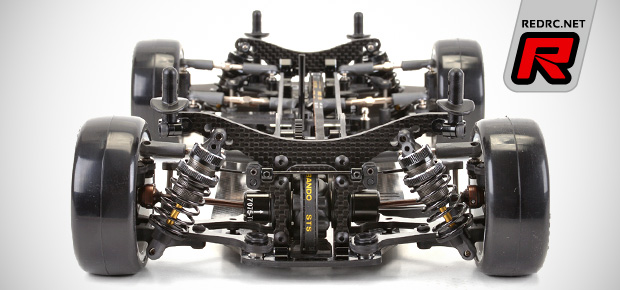

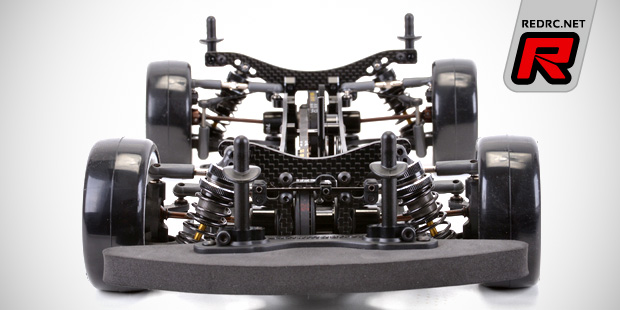

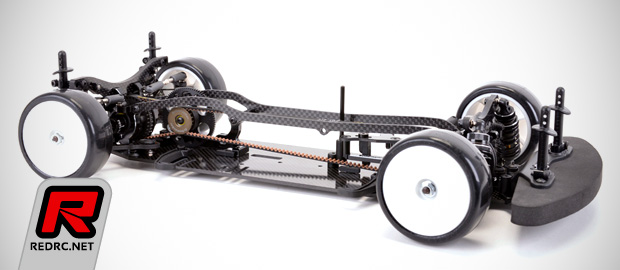

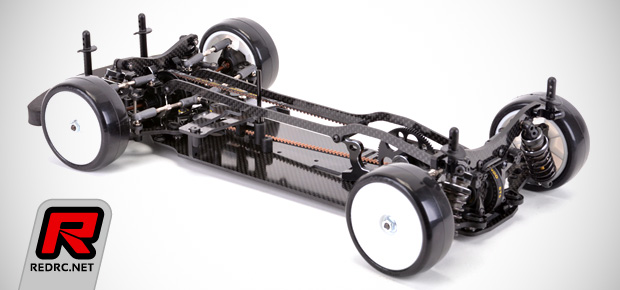

Schumacher Mi5evo touring car kit

UK company Schumacher introduce the Mi5evo, an entirely new competition touring car developed from the BRCA National Championship winning and popular Mi5 platform. Offering some revolutionary design features, the Mi5evo enables the racer even more tunability for both carpet and asphalt tracks. The car offers an ultra low centre of gravity design combined with a wider span vertical top deck that makes for both a responsive and nimble feel, yet is forgiving and consistent to drive. Other changes include an optimised motor position that sits 4.5mm closer to centreline, shorter shocks, a new steering system with tuneable Ackermann options, new mouldings and pins for lower unsprung weight as well as revised body posts and clamps.

Features:
– New motor mount moves motor in 4.5mm for more centralised weight distribution
– New light weight single piece, centrally mounted, alloy & carbon fibre CNC servo and steering mount
– New Ultra lightweight alloy transmission housing with ball stud mounting for low centre of gravity
– New Light weight wishbone ends with moulded roll bar ball, 35% lighter
– New Shorter Shocks with no loss of stroke
– New Simple 3 point mounted ball raced steering rack for super smooth linear steering
– New vertically mounted, wide span top deck offers increased stiffness whilst keeping super linear flex characteristics
– New 1mm wider Alloy rear hex
– New Hubs with grub screw secured pins
– New Stiff 4mm shock towers with optimised shock positions.
– New ultra hard wearing black ball cup design with adjustment hole
– New Lighter CNC alloy 20 tooth layshaft pulley and end cap
– New Vernier adjusted wishbone inserts to remove play and o-ring secured for easy replacement
– New anti roll bars in 0.1mm increments with laser engraving
– New wide span carbon fibre wishbones for improved stiffness & strength

Source: Schumacher [racing-cars.com]
