October 22, 2014

Capricorn TE02 V2 motor mount system

Capricorn TE02 V2 motor mount system

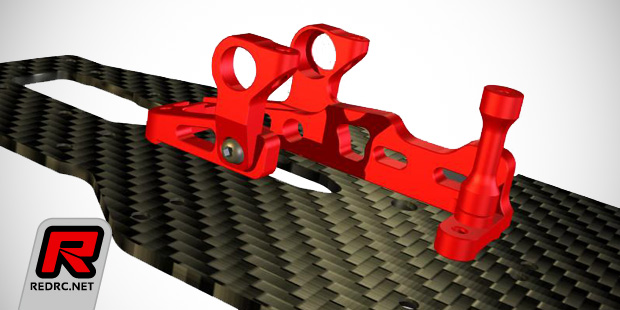

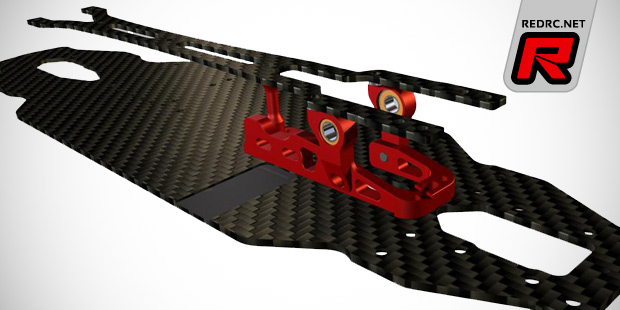

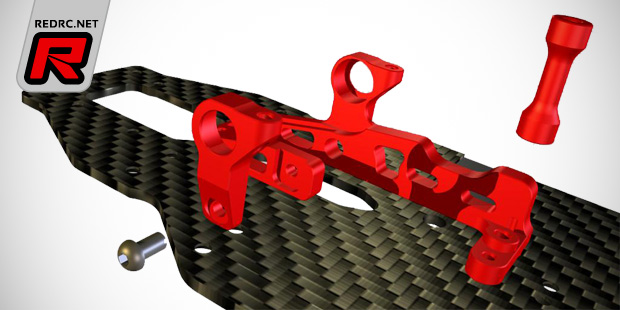

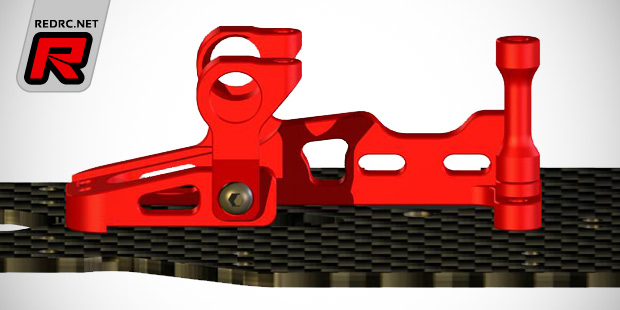

Capricorn release first information on the V2 motor mount system for the TE02 touring car kit. Making use of a CNC-machined mono block for the motor and layshaft mount the construction gives the rear part of the chassis a different flex characteristic. By the looks of things the layshaft mount allows for several top deck flex settings as the upper deck can be coupled or decoupled from the mounts while a centre post in front of the motor further enhances the flex setting possibilities. The motor mount is fixed to the new 89mm wide chassis using four screws and the new upper deck is available in a soft 1.6mm and a hard 2.0mm version. The V2 system, that should become available very soon, will increase overall traction and mid corner speed.


Capricorn TE02 V2 motor mount system

Capricorn TE02 V2 motor mount system

Capricorn TE02 V2 motor mount system

Capricorn TE02 V2 motor mount system

Source: Capricorn [capricorn-rc.com]
