February 8, 2016

Exotek Exo22SCT aluminium & carbon chassis kit

Exotek Exo22SCT aluminium & carbon chassis kit

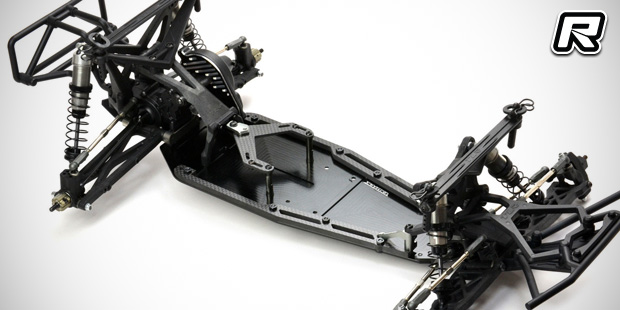

Exotek have introduced the Exo22SCT aluminium and carbon fibre conversion kit for the TLR22SCT and SCT 2.0. With its simple and efficient layout, the chassis design offers improved rearward weight positioning of the battery and electronics to better suit a variety of track conditions while also allowing for the faster and easier to drive side ways mounted shorty battery positioning. The chassis set includes the machined and black anodised 2.5mm 7075 aluminium main chassis, 5mm carbon side rails and a redesigned battery mount that also acts as the top deck. The increased chassis footprint allows for more electronic layout options and proper weight balancing while maintaining a low centre of gravity. The conversion kit is available soon and it requires a TLR22SCT or SCT 2.0 truck in mid motor configuration.


Exotek Exo22SCT aluminium & carbon chassis kit

Features:

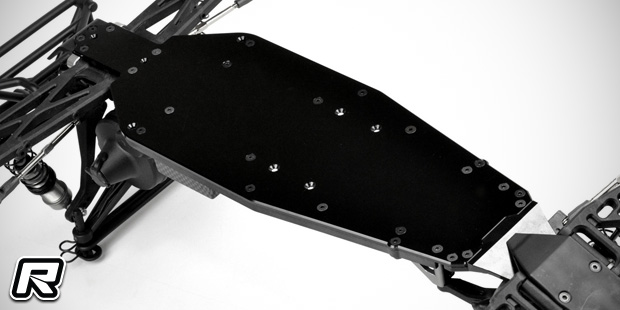

– 2.5mm 7075 machined alloy bottom plate with 5mm carbon side rails

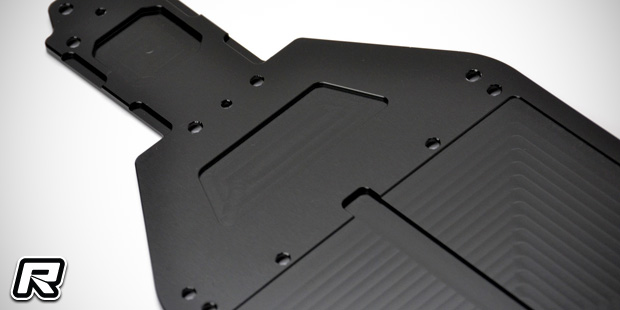

– Pocket milling in the chassis lowers the battery and ESC

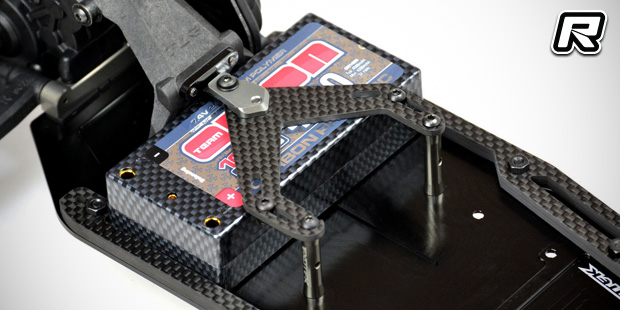

– Easy LiPo access carbon LiPo strap that also acts as a top plate
– LiPo strap has adjustable LiPo holds to allow the battery to be shifted forward or back
– Machined 7075 alloy nose plate
– Includes machined Delrin antenna mount
– 5mm thick matte finish carbon fibre side rails for improved scratch hiding

Exotek Exo22SCT aluminium & carbon chassis kit

Exotek Exo22SCT aluminium & carbon chassis kit

Exotek Exo22SCT aluminium & carbon chassis kit

Source: Exotek [exotekracing.com]
