July 23, 2016

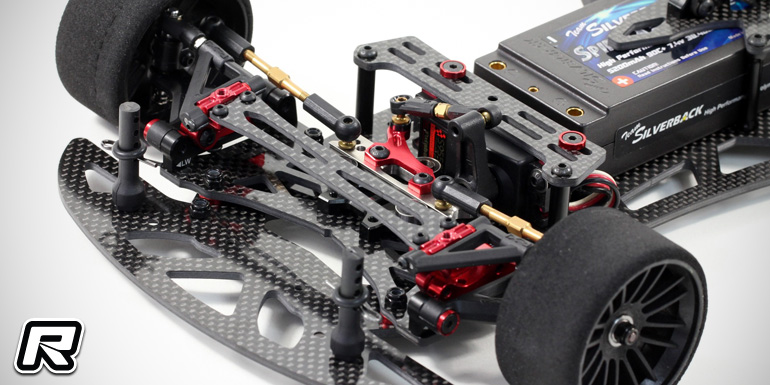

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

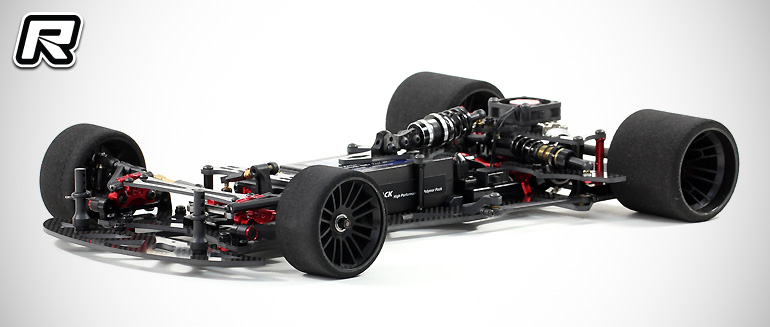

Roche have introduced their Rapide P10W 235mm 1/10th scale pan car kit. Building on the 200mm variant the car makes use of a 3mm high-grade carbon fibre main chassis plate and lower pod plate, and it allows for extensive wheelbase settings with ±2mm being achievable using the front lower alloy suspension block and additional ±1.5mm are available using the front graph suspension plate. Other features include a ball-raced rack-type steering system, quick adjust Ackermann, fully adjustable Xenon-made front suspension, a big bore centre and lightweight micro side dampers as well as a floating steering servo mount for low-profile and mini-size servos. The chassis itself allows for a range of battery configurations including inline standard and shorty packs as well as transversally mounted shorties. The link-type kit furthermore comes with a range of options such as a differential thrust race, 64 pitch 93T Xenon Racing main gear as well as a 30mm cooling fan mount and low-friction pivot balls and ball studs.

Features:

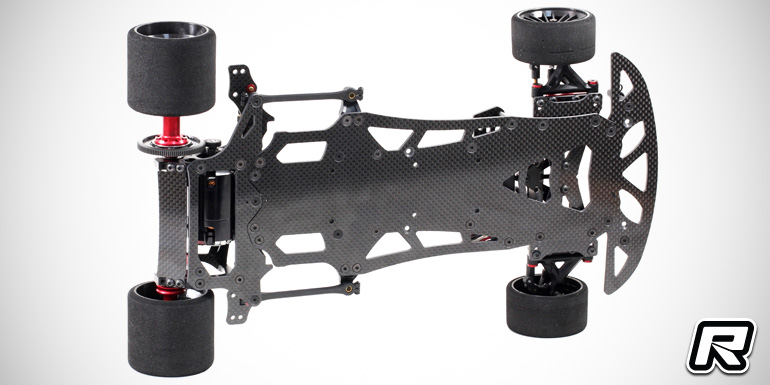

– 3.0mm high grade USA graphite materials for main chassis and lower pod plate
– Adjustable wheelbase (254.5mm-258mm)
– Caster adjustment (1.8/3.25/6.15 deg)

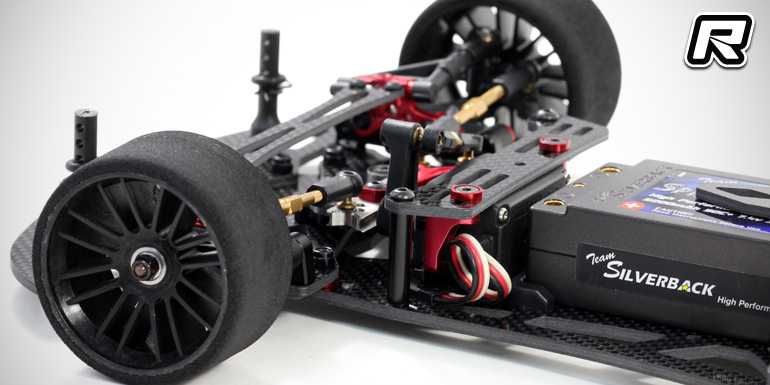

– Bearing steering rack system design, more proportional and smooth steering feel
– Low-friction coated pivot balls and ball studs
– New 7075 aluminium front upper arm mount pin brace
– Polished kingpin and upper hinge pins
– Hard-coated aluminium steering turnbuckles
– Spring steel upper arm turnbuckle (M3x15mm)
– High-grade composite front suspension plastic parts from Xenon Racing
– Low-profile and mini size servo compatible

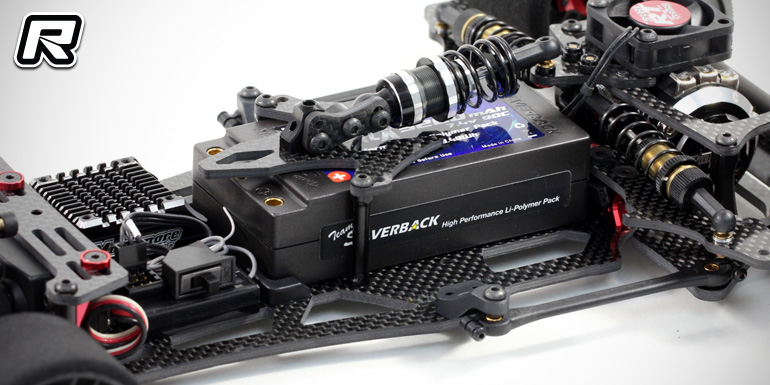

– Big bore short centre damper with POM piston

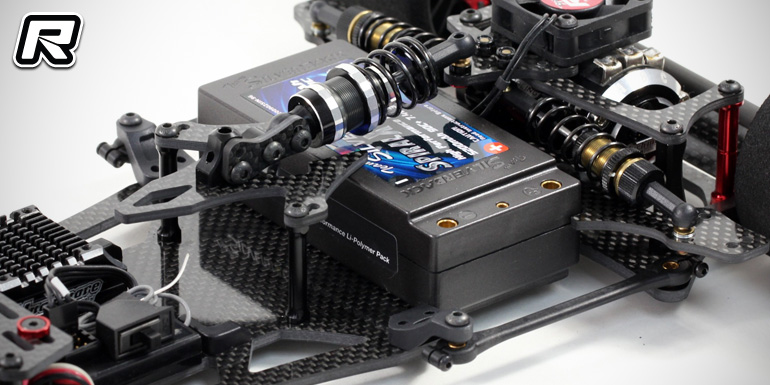

– Micro side dampers rear suspension design
– Quick centre damper angle and position adjustments
– Aluminium centre damper and antenna mount

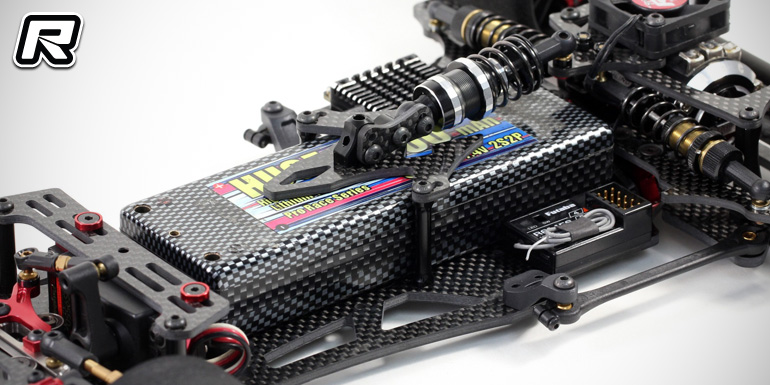

– Inline and transversal battery positions
– 7075 aluminium rear chassis brace mount
– 7075 aluminium motor mount and left rear bulkhead
– 7075 aluminium main shaft holder, precise adjustment ride height using spacers
– 2.0mm USA graphite rear motor pod diffuser
– 2.5mm USA graphite wide front bumper
– Floating pod link rear suspension

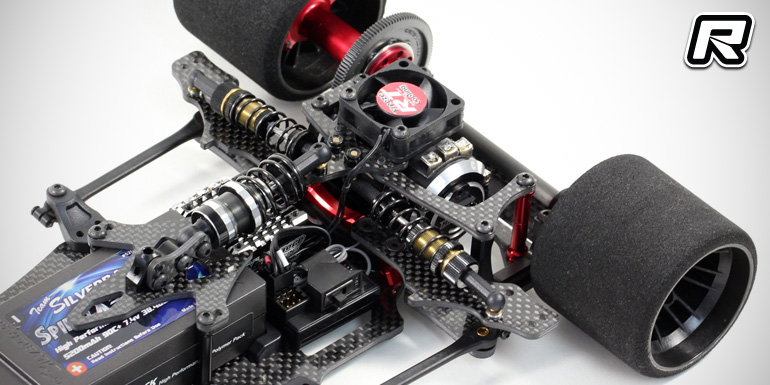

– 30mm Cooling fan mount
– High precision ball differential and reliable carbon main shaft
– Thrust ball bearing

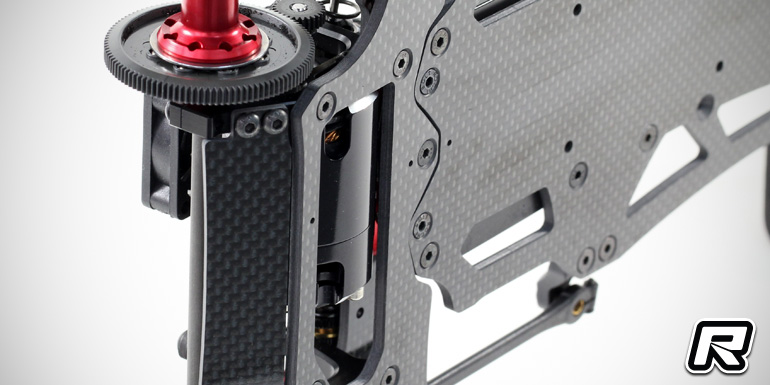

– 64P 93T (16 balls) spur gear by Xenon Racing

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

Roche Rapide P10W 235mm 1/10th scale pan car kit

Source: Roche [rocherc.com]
