Team Magic Pro-J touring car setup tools

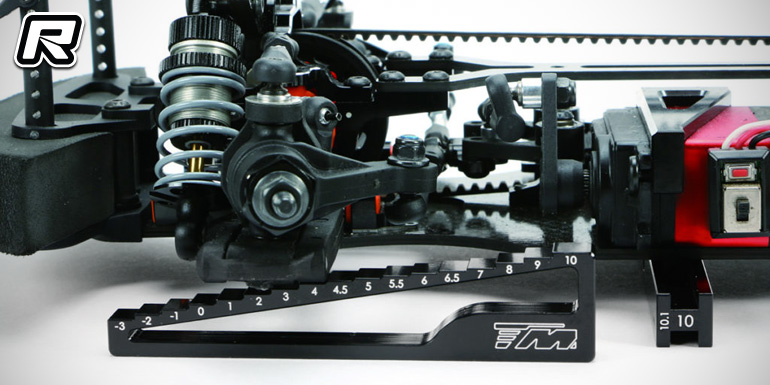

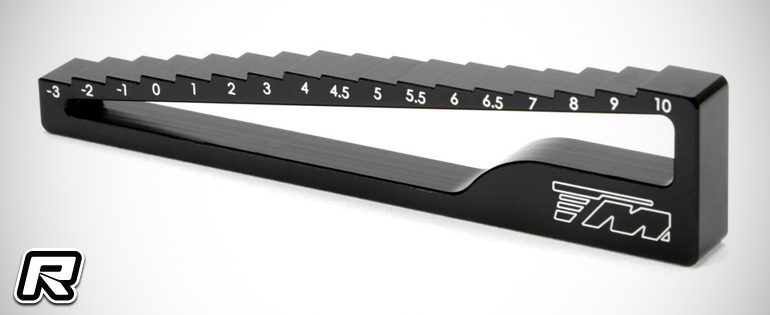

HRC Distribution have introduced the new Pro-J touring car setup tools. First up is the 3mm to 9mm ride heigh gauge. Offering fine 0.2mm increments in the 3mm to 6mm range the gauge offers a more coarse 0.5mm increments for the 6mm to 9mm range. The tool is machined from high-quality aluminium, it comes black anodised and with laser-etched markings. The second new part is the conventional droop gauge. Designed for “under arm” measurements the tool offers a -3mm to +10mm range and like the ride height gauge it is made from black anodised and laser-etched alloy.

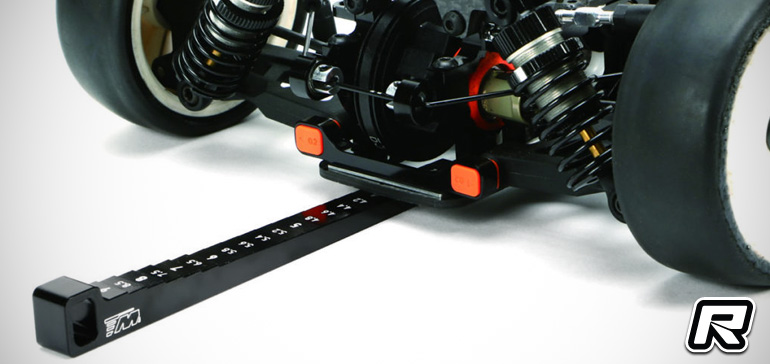

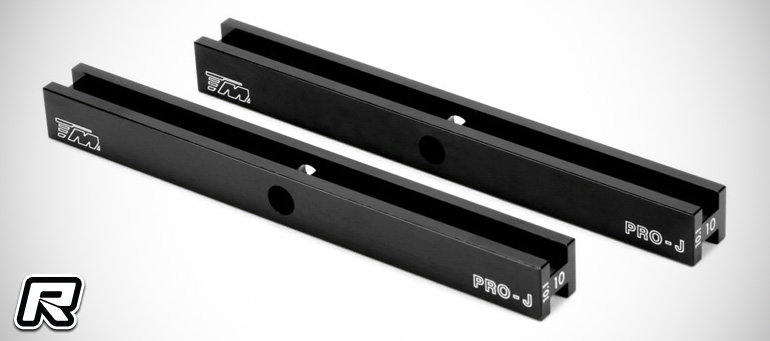

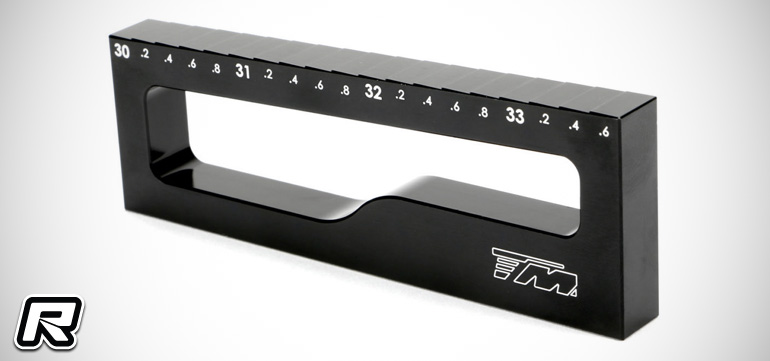

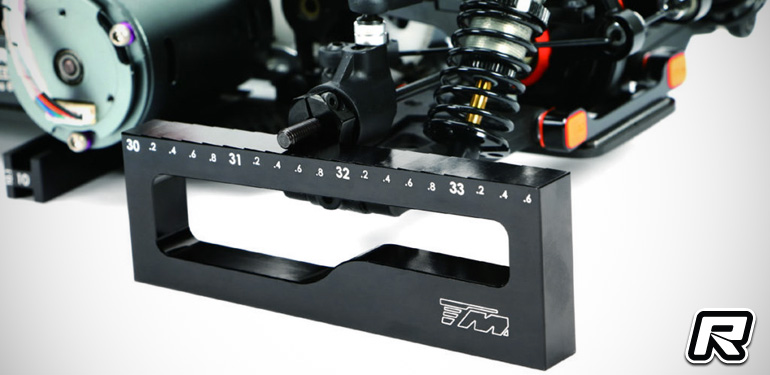

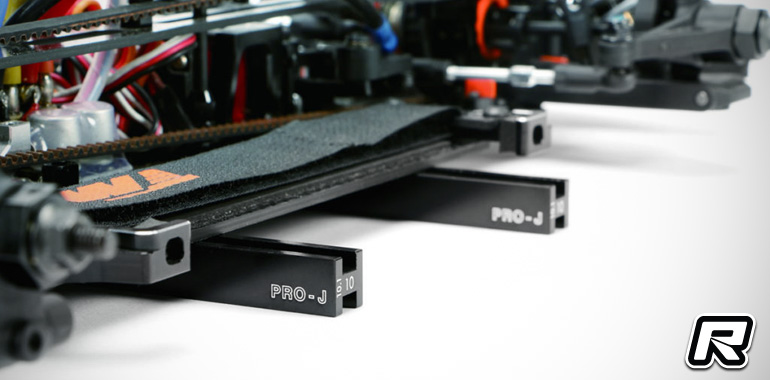

Next up is the high precision droop gauge for “under wheel axle” measurements that allow for more precise and more accurate droop setting comparison between different cars and brands. The gauge offers 0.2mm increments but when combined with below’s 10.0mm-10.1mm chassis blocks even 0.1mm steps are possible. The latter are, just like all tools, machined from high-quality alloy and the 2-sided design with 10mm and 10.1mm settings allow for ultra-fine droop settings in 0.1mm steps.

Source: HRC Distribution [hrcdistribution.com]
