August 9, 2016

Yeah Racing Hackgear Drift Spec low-profile servo

Yeah Racing Hackgear Drift Spec low-profile servo

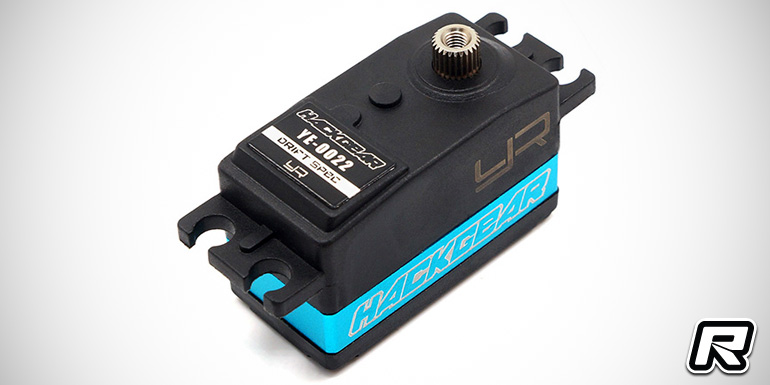

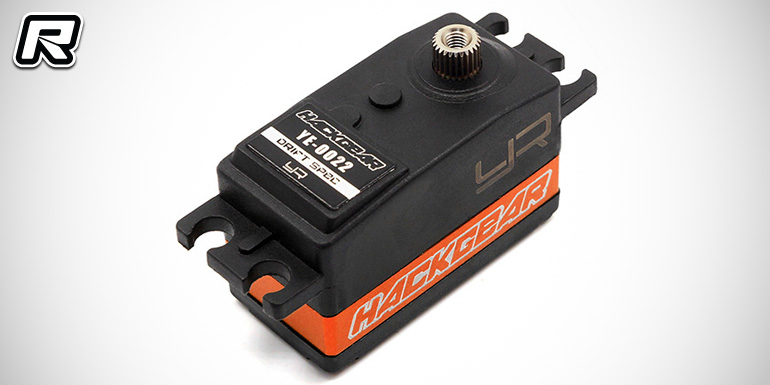

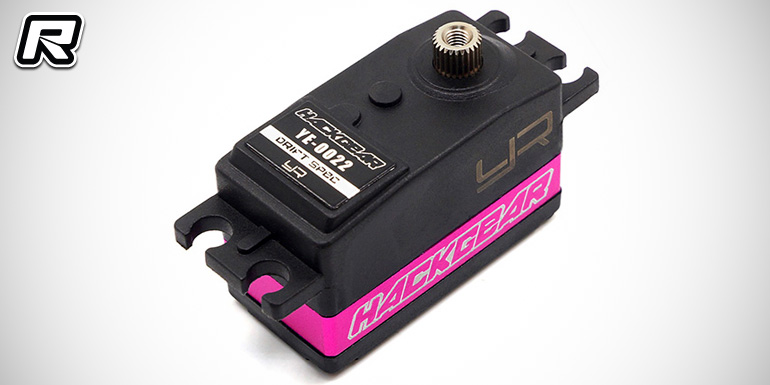

Coming from Yeah Racing is the Hackgear Drift Spec digital low-profile servo. Equipped with a drift-specific firmware for quick and precise steering response the coreless motor servo also features a mixed titanium and copper geartrain, a ball-raced 25T output shaft and it pulls up to 7kg-cm of torque at a speed of down to 0.08s. The servo is available in several middle heatsink colours including black, orange, blue and pink.

Specification:
– Type: Digital
– Operating voltage range: 4.8-6.0VDC
– Bearing type: Dual ball bearings
– Speed (60° @4.8V/6.0V): 0.10/0.08
– Torque(kg-cm @4.8V/6.0V): 5.5/7
– Size: 40.9mm x 20mm x 25.2mm
– Motor type: Coreless
– Dead band width: 2µs
– Connector wire length: 300mm
– Connector wire gauge: 25AWG
– Connector type: JR
– Gear type: Titanium and Copper gears
– Frequency: 330Hz
– Shaft: 6mm 25T

Yeah Racing Hackgear Drift Spec low-profile servo

Yeah Racing Hackgear Drift Spec low-profile servo

Yeah Racing Hackgear Drift Spec low-profile servo

Source: Yeah Racing [yeahracing.com]
