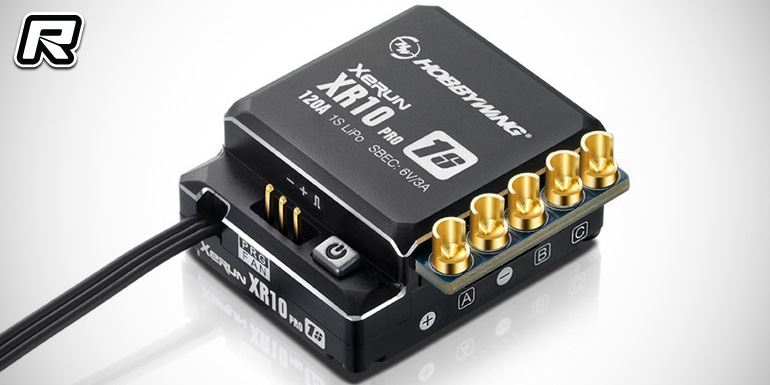

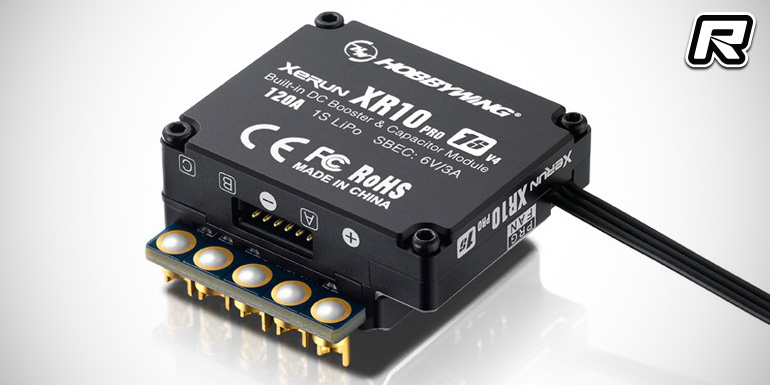

Hobbywing XR10 Pro 1S 1/12th scale speed controller

Hobbywing XR10 Pro 1S 1/12th scale speed controller

Hobbywing have introduced the 1S 1/12th scale version of their popular Xerun XR10 speed controller. 6mm shorter and 12g lighter than is predecessor V3.1 1S, the controller, that made a first public appearance at the recent IFMAR Electric On-road World Championships, allows for better placement within the chassis while also granting for easier weight distribution adjustments. The machined black alloy case houses a built-in switch and a capacitor module to further save weight and space while in terms of software the 1S variant sports five pre-sets commonly used in 1/12th scale racing while the optional LCD Program Box and WiFi Module make further adjustments of the parameters easy. The 1S-only speedo is usable without an external receiver battery as it sports a switched 6V/3A BEC system.


Hobbywing XR10 Pro 1S 1/12th scale speed controller

Specifications:
– Dimensions: 37.5x31x15.9mm
– Weight: 35.6g
– Input voltage: 1S LiPo/3-4 cell NiMH
– Constant/peak current: 120A/830A
– BEC system: 6V/3A
– KV rating/T count: ≥3.0T (in zero timing/blinky mode)

Hobbywing XR10 Pro 1S 1/12th scale speed controller
Source: Hobbywing [hobbywing.com]
