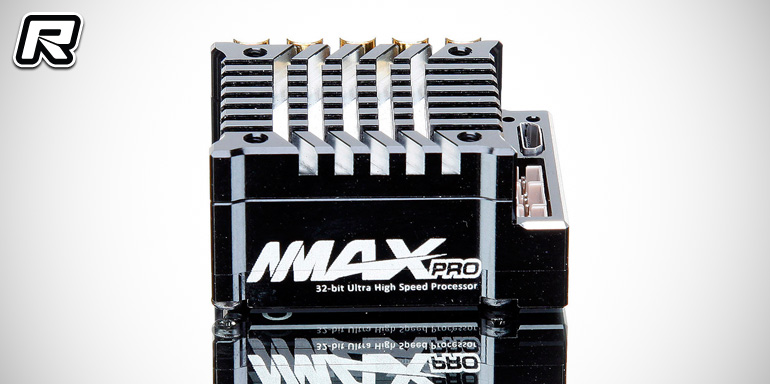

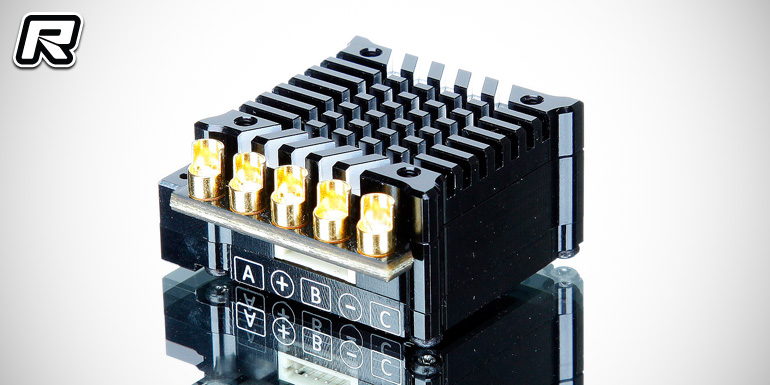

Maclan Racing MMax Pro competition brushless ESC
Coming from Maclan Racing is the new MMax Pro 160A competition brushless speed controller. Developed from the ground up over the last 18 month the speedo utilises an ultra-high performance 32-bit CPU as its central processing brain and compared to the last generation 8-bit CPUs, the 32-bit CPU in the MMax Pro ESC runs at much higher clock speed and bandwidth. The speedo utilises a completely redesigned all-new algorithm firmware to maximise its strength while offering the smoothest throttle and the strongest yet precise braking. The controller offers 12 pre-loaded profiles for all on-road and off-road applications including Stock blinky and low-turn Modified racing. All parameters are adjustable using the on-board USB port and Maclan’s MS Windows-compatible software. Other features include a full aluminium case for improved cooling, it comes with a high-voltage 30mm turbo fan, adjustable 6V to 7.4V high-voltage BEC system and data logging capability. The controller will hit the stores by end of October.
Features:
– High performance 32-bit CPU for high speed and accurate processing
– New generation firmware algorithms for the strongest ever throttle and brake
performance
– On board USB host for the ease of connectivity and unlimited extensibility
– Dual power-on options for the ease of operation. (controlled by switch or controlled by battery)
– All aluminum structure with omnidirectional heatsink for optimum cooling performance
– Modular connectors with optional length cables
– Adjustable throttle and brake PWM frequency for fine tuning
– 12 Built-in profiles from blinky (zero timing) to mod, from on-road to off-road applications
– Advanced Boost/Turbo/Over Boost system for top level racing
– Motor/ESC temperature protection, and low voltage protection
– MS Windows compatible software for data logging, programming, and firmware updating
Specifications:
– CPU: Super Speed 32-bit CPU with 5-stage pipeline
– Scale: 1/10th competition
– Continuous current: 160A
– MOSFET rated current: 400A/phase
– Power input: 2S LiPo
– BEC output: Linear Mode 6V to 7.4V, 4A
– Wire input: Black 12AWG
– Wire output: Black -12AWG
– Cooling fan: 30x30x10mm HV turbo fan
– Motor: Brushless sensored/sensorless motor
– Motor limit: 2-pole 3.5T
– Fan Power: Direct battery voltage
– Dimension: 40x30x19mm (w/o cooling fan)
– Weight: 48g (w/o wires and capacitor module)
Source: Maclan Racing [maclan-racing.com]
