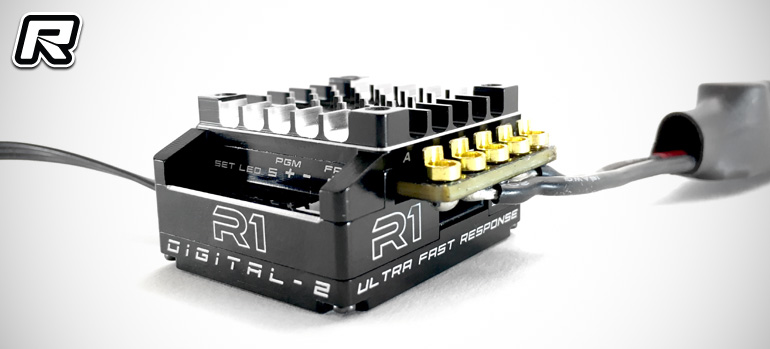

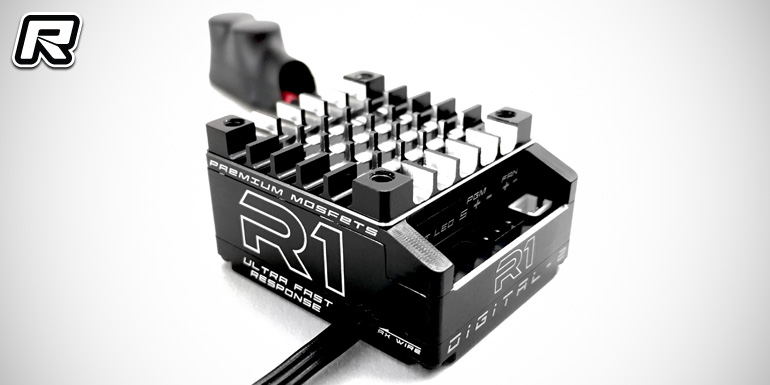

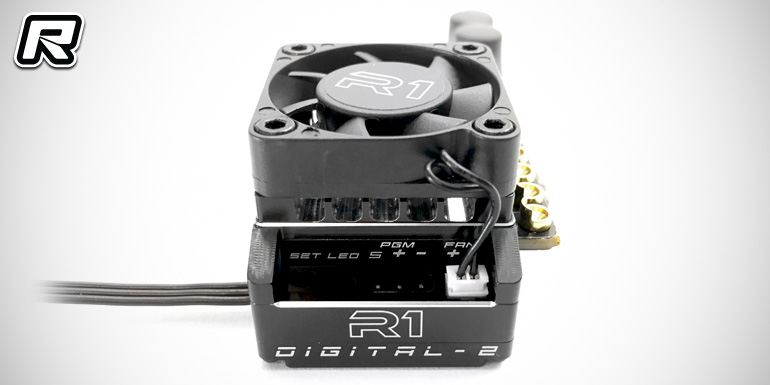

R1 Wurks Digital 2 brushless speed controller

R1 Wurks Digital 2 brushless speed controller

Coming from R1 Wurks is the new Digital 2 brushless speed controller. Rated at 200A constant current, the controller is usable with modified motors down to 3.0T but a blinky mode for zero timing spec racing makes it usable for non-boosted classes also. Several boost and turbo functions add to the extensive software features that include power delivery and brake strength settings. The unit also features the A.C.L.C. Advanced Component Level Cooling system, this design allows individual Mosfets to transfer heat directly to the upper heatsink. The power switch-less safety first system forces the user to disconnect the battery when its time to power off the controller, minimising the chances of leaving a live battery from draining. The controller is housed in a black anodised case with a specially designed heatsink and it is adjustable using a digital programming box.


R1 Wurks Digital 2 brushless speed controller

Features:
– Advanced high speed micro controller
– Enhanced throttle smoothness, feel & brake strength
– Blinky mode for spec racing (zero timing)
– Digital program box (w/Plug in and go) intuitive, easy to use interface and auto save feature
– Safety first no power switch system, forces user to disconnect the battery for safety
– Premium low ESR capacitors included
– All aluminium enclosure featuring A.C.L.C. (Advanced Component Level Cooling)
– Adjustable throttle & brake frequency to further customise the throttle feel & power delivery
– Most advanced programmable turbo & boost functions, featuring dyno tuned increments
– Motor/ESC temperature protection
– User adjustable low voltage protection
– MS Windows Software used for future firmware updates
– Designed to pass ROAR/BRCA/EFRA zero timing ESC regulation

R1 Wurks Digital 2 brushless speed controller

Specifications:
– Scale: Radio controlled 1/10th scale vehicle
– Continuous current: 200A
– Current burst: 950A
– Power input: 4-8 cells NiXX or 2s LiXX
– BEC output: 6V/3A
– Wire: 12 AWG
– Cooling fan: 30x30x7mm premium high speed fan
– Motor: Brushless sensored/sensorless motor
– Motor limit: 3.0T
– Dimension: 30.4mm(L) x 37.1mm (W) x 19.5mm (H)
– Weight: 43g no capacitor, no fan

R1 Wurks Digital 2 brushless speed controller

Source: R1 Wurks [r1wurks.com]
