February 23, 2017

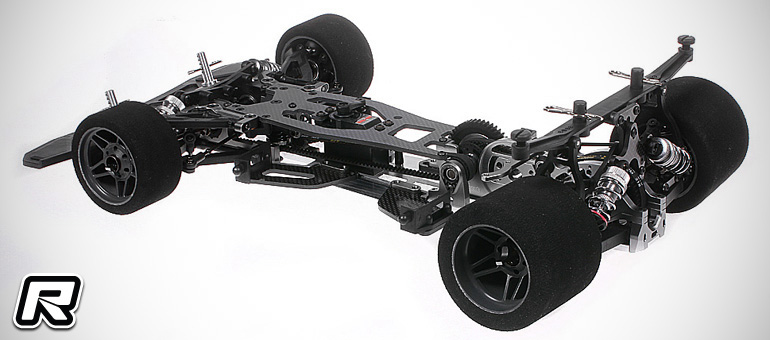

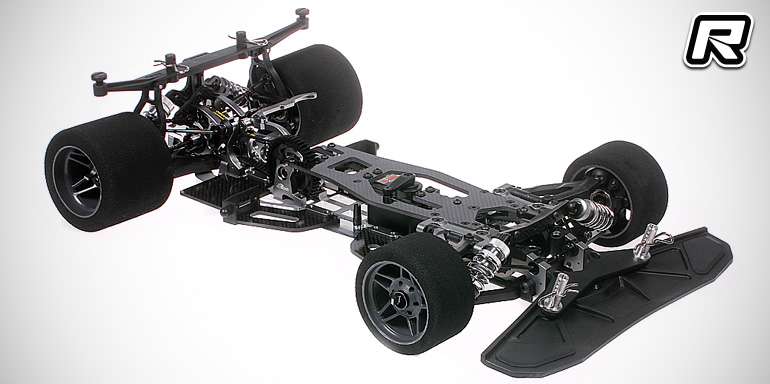

Serpent Viper 977-e Evo2 1/8th electric on-road kit

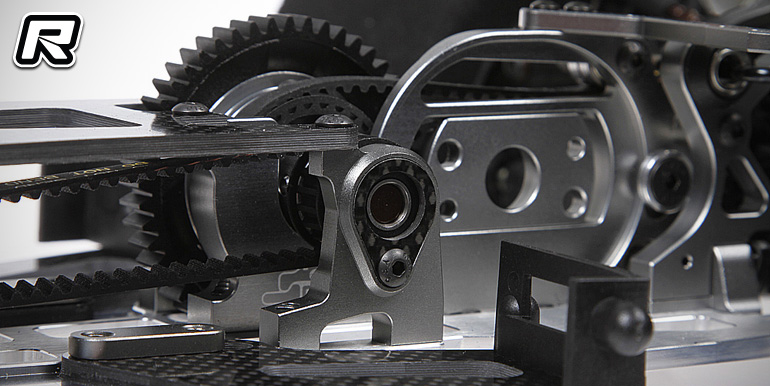

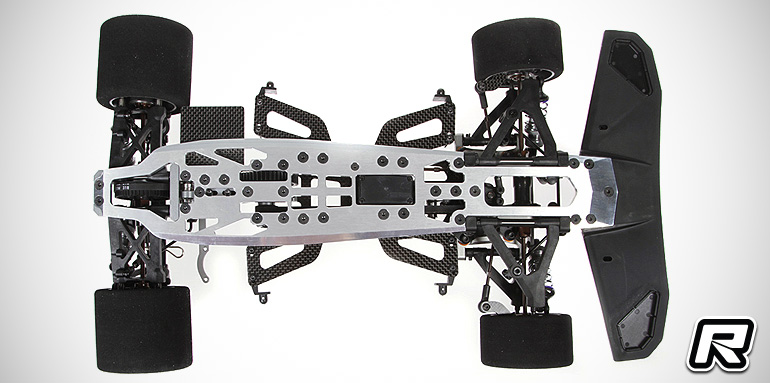

Serpent have introduced the Viper 977-e Evo2 1/8th electric on-road kit. The latest incarnation of the 977-e platform utilises many features of the 977 Evo2 nitro car such as the narrow pivot rear end with long lower A-arms that make for improved traction. The car is based on a 5mm aluminium main chassis plate with 2.5mm carbon fibre top plate, its battery mount takes most 2S and 3S standard-dimension LiPo battery packs and the kit also comes with a 2-belt drivetrain with large belt pulleys for an efficient power transfer. Also part of the package are low-profile shock absorbers, and a sturdy 7075-T6 aluminium motor mount with aluminium fan holder. The kit will hit the stores by the end of February.


Features:

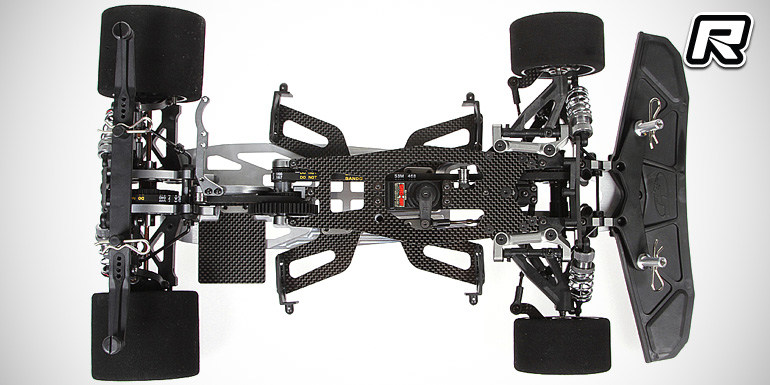

– 5mm aluminium chassis and 2.5mm carbon top plate

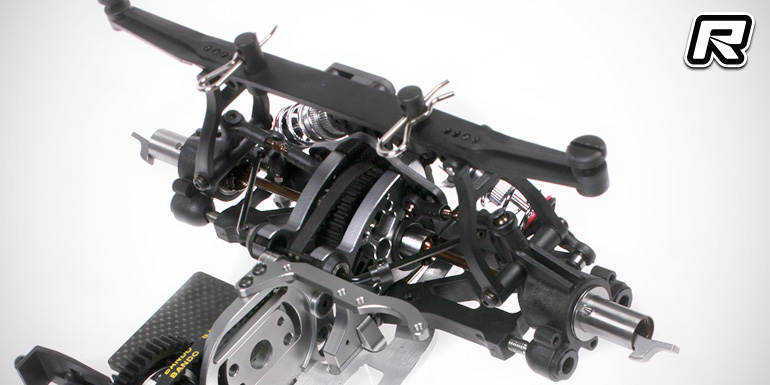

– Narrow pivot 977 Evo-2 rear end
– Carbon fibre battery holder/ protectors, fully adjustable to fit most 2S and 3S packs

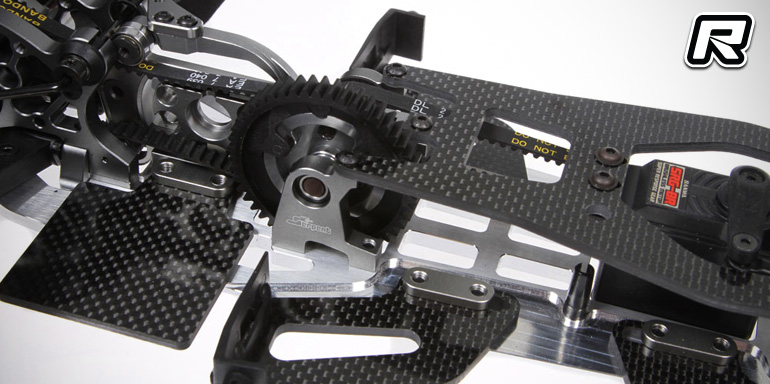

– 2-belt drive system with 5mm belts
– Large pulleys and ball- raced belt tensioners
– Aluminium 7075-T6 motor holder, aluminium fan-holder
– 15T motor pulley/48T spur ratio

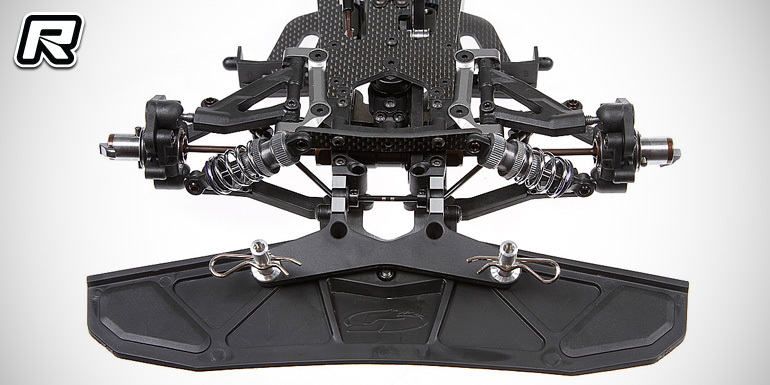

– Viper 977 Evo-2 front and rear suspension
– Low type big bore shocks
– Race-ready weight around 2700g to 2750g

Source: Serpent [serpent.com]
