Hitec D9 series 32-bit metal case servos

Coming from Hitec are three new D9 series 32-bit metal case servos. The D941TW (0.07s/16.5kg-cm), D946TW (0.10s/23.0kg-cm) and D951TW (0.14s/35.0kg-cm) all feature 32-bit micro controller units and 12-bit analog to digital converters to maximises the servos’ performance for optimised response and feel. The wide voltage compatible standard-size units can be powered by 4.8V to 7.4V input, they feature highly durable titanium gears, full-metal servo cases and they are fully programmable to fine-tune functions such as end point adjustments, direction, fail save, dead band, speed (slower), soft start rate, and overload protection.

D941TW specifications:
– Operating voltage: 4.8V/6.0V/7.4V
– Speed: 0.11s/0.08s/0.07s
– Maximum torque: 10.0kg-cm/13.5kg-cm/16.5kg-cm
– Dead band: 1 µs
– Dimensions: 40.0×20.0x38.0mm
– Weight: 68.0g
– Circuit type: 32-bit programmable digital
– Gear type: Titanium
– Bearing type: Dual ball beating
– Output shaft: 25T
– Case material: Aluminium
– Dust/Water resistance: Splash proof

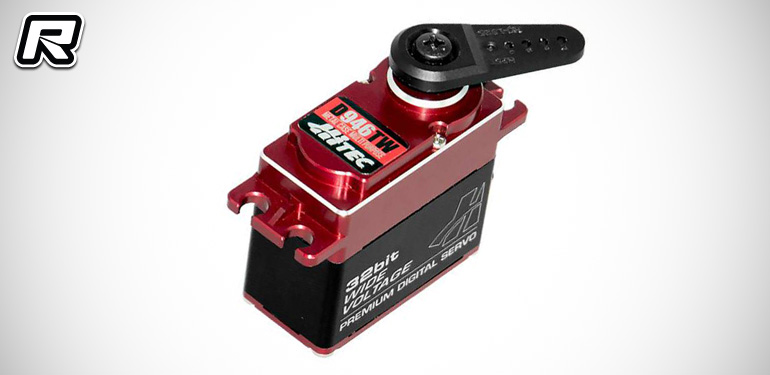

D946TW specifications:
– Operating voltage: 4.8V/6.0V/7.4V
– Speed: 0.16s/0.12s/0.10s
– Maximum torque: 14.0kg-cm/18.0kg-cm/23.0kg-cm
– Dead band: 1 µs
– Dimensions: 40.0×20.0x38.0mm
– Weight: 68.0g
– Circuit type: 32-bit programmable digital
– Gear type: Titanium
– Bearing type: Dual ball beating
– Output shaft: 25T
– Case material: Aluminium
– Dust/Water resistance: Splash proof

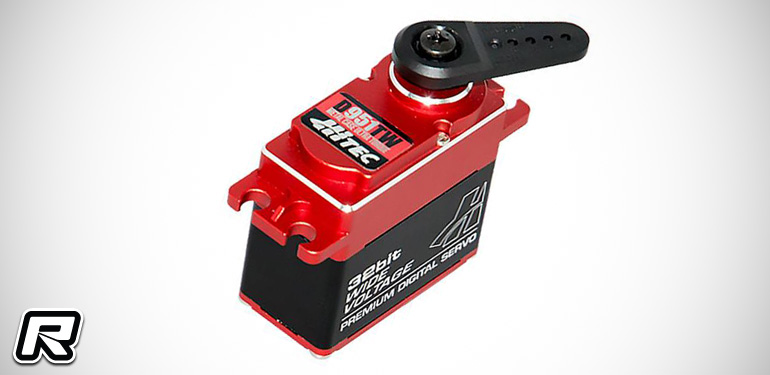

D951TW specifications:
– Operating voltage: 4.8V/6.0V/7.4V
– Speed: 0.23s/0.17s/0.14s
– Maximum torque: 21.0kg-cm/29.0kg-cm/35.0kg-cm
– Dead band: 1 µs
– Dimensions: 40.0×20.0x38.0mm
– Weight: 68.0g
– Circuit type: 32-bit programmable digital
– Gear type: Titanium
– Bearing type: Dual ball beating
– Output shaft: 25T
– Case material: Aluminium
– Dust/Water resistance: Splash proof

Source: Hitec [hitecrcd.com]
