April 21, 2017

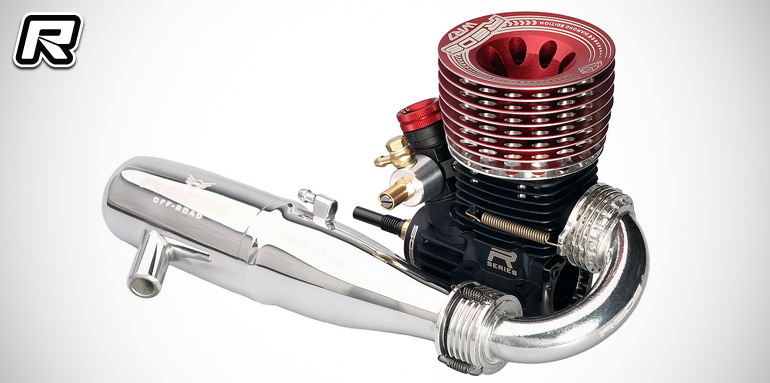

Reds WR7 Diamond 3.5cc nitro off-road engine

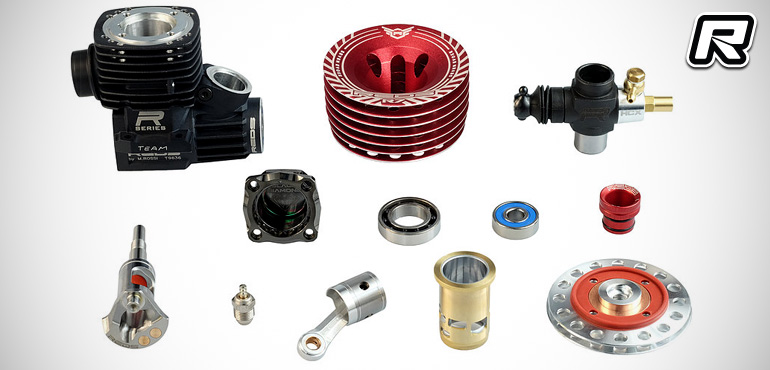

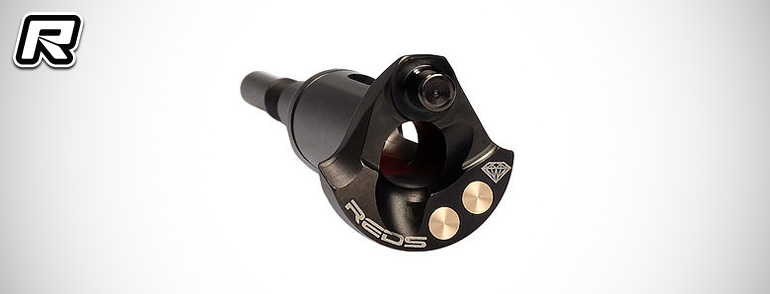

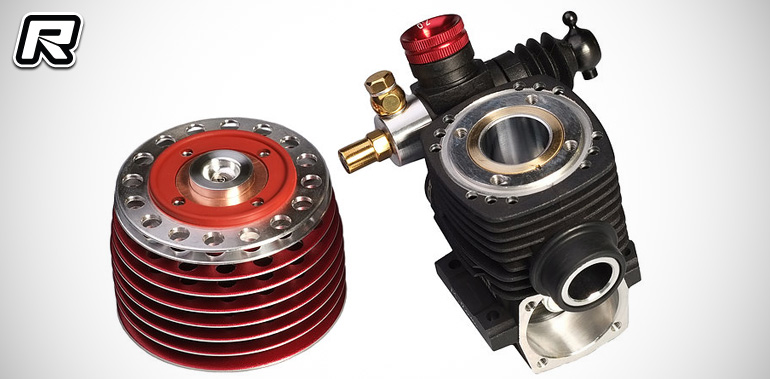

Italian company Reds Racing have introduced their new WR7 Diamond 3.5cc nitro off-road engine. Based off of the popular R7 World Edition engine, the new power plant is of a high-torque design and it features a DLC-coated crankshaft and backplate for reduced internal friction and improved durability while utilising a redesigned crankcase, cooling head and combustion camber insert to further improve performance and durability. Of a high-power 7-port design the power plant features an exhaust port with boosters to improve mileage and to provide a smooth yet powerful power delivery. Part of the engine package are also the renown HCX carburettor with Gen 2 venturi insert, anew lightweight and low centre of gravity cooling head and each engine comes with a hand-tuned, silicone-filled, balanced and tuned crankshaft, a work that is carried out by Reds’ own M. Rossi. The engine is available separately, pre-broken-in by M. Rossi, as Elliott Boots Race Ready edition, including the Reds 2143+S exhaust or as all-out combo package including the 2143+S exhaust and Reds’s own Quattro clutch.

Specifications:
– Class: 1/8 Buggy and Truggy
– Displacement: 3.5cc
– Bore: 16.2mm
– Stroke: 16.9mm
– Inlet ports: 7
– Outlet ports: 1
– Front ball bearing: Rubber sealed, made in Japan
– Rear ball bearing: Swiss made Ceramic
– Carburetor: HCX long needle
– Weight: 345g
– Recommended pipe: REDS 2143 + S

Source: Reds Racing [reds-racing.com]
