August 23, 2017

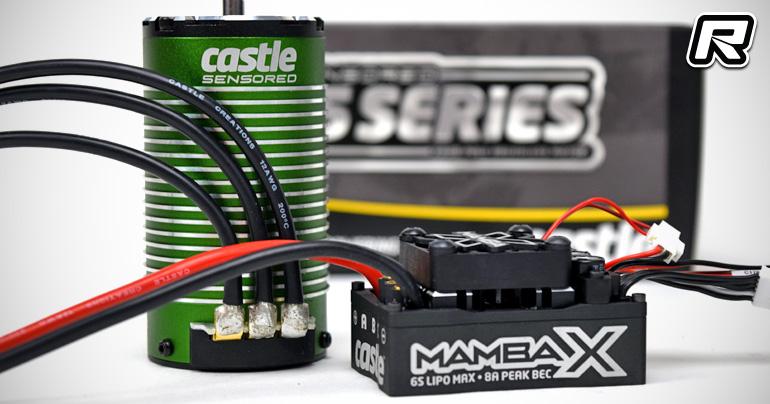

Castle Creations Mamba X E-Buggy Racing Editions

Coming from Castle Creations are two new Racing Editions controller and motor combos for 1/8th E-buggies. Both make use of the Mamba X sensored speed controller that features Castle Creations’s latest firmware for smooth yet powerful throttle and brake control, data logging capacities including motor and speedo temperature and it features a strong 5.25V-8.0V 8A BEC system. A waterproof aluminium housing makes for go-everywhere capabilities and it measures a compact 54.4×35.2×30.0mm while weighing in at 101g. Included in the set are either the ROAR Mod approved 1512-1800kv or ROAR Mod pending 1515-2200kv brushless 4-pole/12-slot motors.

Mamba X speed controller
– ROAR approved (1.82 SW version)
– Wide 2S-6S input voltage range (3-4S LiPo max. w/1512-1800KV and 1515-2200KV motors)
– Sensored motor support with Smartsense
– Weight: 101g
– Dimensions: 54.4mm x 35.2mm x 30.0mm
– Waterproof ESC housed in a rugged CNC aluminium case w/integrated 4mm Gold-plated bullet connectors
– 8A adjustable BEC (5.25V-8.0V)
– Castle Link programming support featuring data logging, auxiliary mode, continuous firmware updates and adjustable settings such as throttle, braking curve, and auto LiPo cutoff
– 12 AWG high strand count, silicone coated copper power wires
– Removable 30mm ESC cooling fan
– Replaceable motor sensor harness
– Audible alerts for carious issues and error conditions (includes start fail, sensors lost, motor over-temperature, radio glitch and more)

1512 1Y 1800KV and 1515 1Y 2200KV sensored motor
– 4-pole 12-slot rebuildable design
– Quietsense technology
– ROAR standard sensor port and labeled connections
– High-performance 0.2 mm steel lamination stacked stator
– High-strength Kevlar wrap
– High-strength, 180°C grade, Neodymium sintered magnets
– Oversized, low-resistance, Gold-plated solder tabs
– Oversized NMB bearings
– M3 and M4 @ 25mm mounting hole
– 4mm male Castle bullet connectors
– 210mm length sensor wire
– 1512-1800KV is ROAR Mod approved
– 1515-2200KV is pending ROAR Mod approval

Source: Castle Creations [castlecreations.com]
