Tekin launch T-line high-performance servo range

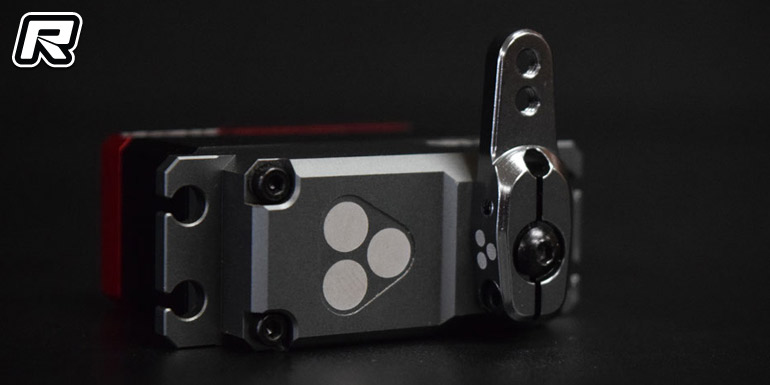

Tekin have launched their all-new T-series servo line of high-performance low-profile, speed and torque servos. All feature Digital Magnetic Position Encoding for accuracy, linearity and control with efficient and cool operation. The element proof design provides protection from dust, dirt and water with a 3-piece machined aluminium housing while precision-cut metal gears and dual ball bearings support a smooth, strong drive train. The range includes the T-120 (0.04s/10.1kg-cm) low-profile speed, T-180 (0.06s/15.3kg-cm) low-profile torque, T-130 (0.03s/10.7kg-cm) standard-size 1/10th scale speed, T-190 (0.05s/17.4kg-cm) standard-size 1/10th scale torque, T-250 (0.07s/22.3kg-cm) standard-size 1/8th speed, T-300 (0.08s/25.5kg-cm) standard-size 1/8th torque as well as the T-360 (0.09s/29.8kg-cm) crawler large scale and T440 (0.11s/36.2kg-cm) crawler large scale servo. All are usable with 6.0V to 8.4V input, they are programable through Tekin’s HotWire PC interface and come including an all-aluminium clamping-design Crowbar servo arm.

T-120 specifications:
– Torque: 10.1kg-cm @8.4V
– Dynamic Torque: 18.5kg-cm @8.4V
– Speed: 0.04s @8.4V
– Input voltage: 6.0V-8.4V
– Gear Set: Full metal
– Dimensions: 40x20x27mm
– Mounting height: 18.4mm
– Weight: 54.6g

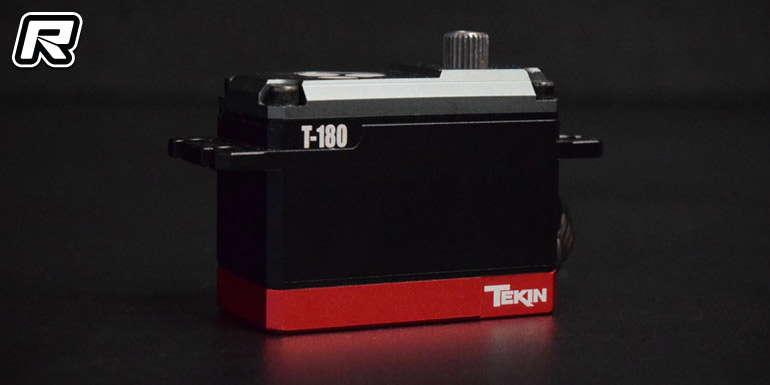

T-180 specifications:
– Torque: 15.3kg-cm @8.4V
– Dynamic Torque: 25.2kg-cm @8.4V
– Speed: 0.03s @8.4V
– Input voltage: 6.0V-8.4V
– Gear Set: Full metal
– Dimensions: 40x20x27mm
– Mounting height: 18.4mm
– Weight: 54.6g

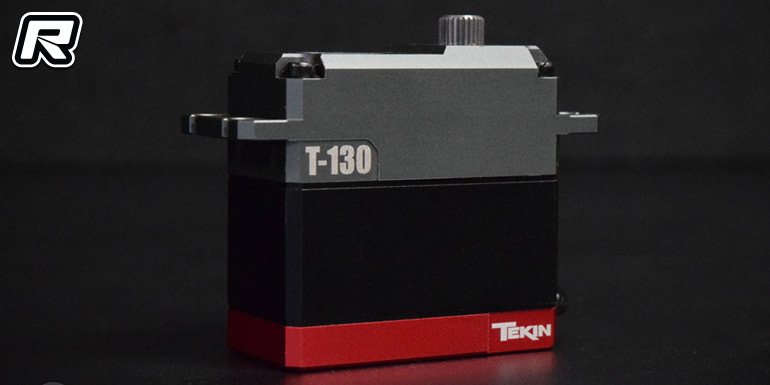

T-130 specifications:
– Torque: 10.7kg-cm @8.4V
– Dynamic Torque: 15.8kg-cm @8.4V
– Speed: 0.06s @8.4V
– Input voltage: 6.0V-8.4V
– Gear Set: Full metal
– Dimensions: 40x20x40mm
– Mounting height: 28.4mm
– Weight: 72g

T-190 specifications:
– Torque: 17.4kg-cm @8.4V
– Dynamic Torque: 26.7kg-cm @8.4V
– Speed: 0.05s @8.4V
– Input voltage: 6.0V-8.4V
– Gear Set: Full metal
– Dimensions: 40x20x40mm
– Mounting height: 28.4mm
– Weight: 72g

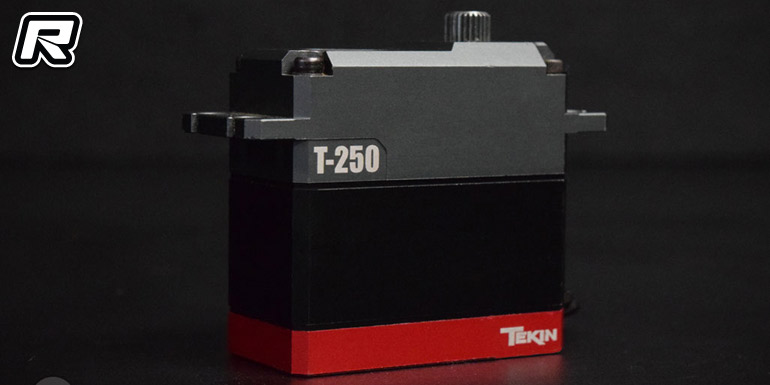

T-250 specifications:
– Torque: 22.3kg-cm @8.4V
– Dynamic Torque: 32.4kg-cm @8.4V
– Speed: 0.07s @8.4V
– Input voltage: 6.0V-8.4V
– Gear Set: Full metal
– Dimensions: 40x20x40mm
– Mounting height: 28.4mm
– Weight: 72g

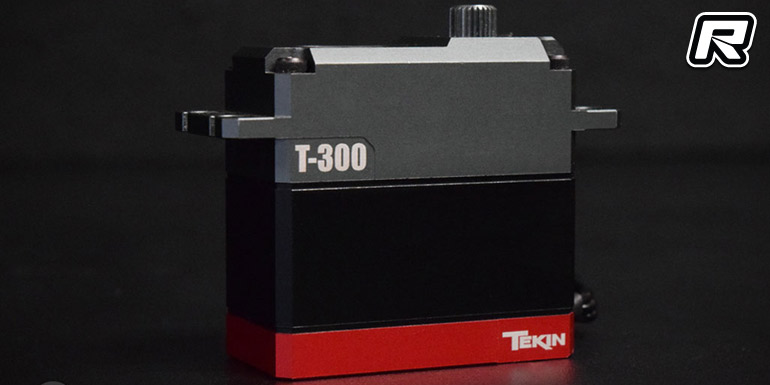

T-300 specifications:
– Torque: 25.5kg-cm @8.4V
– Dynamic Torque: 34.7kg-cm @8.4V
– Speed: 0.08s @8.4V
– Input voltage: 6.0V-8.4V
– Gear Set: Full metal
– Dimensions: 40x20x40mm
– Mounting height: 28.4mm
– Weight: 72g

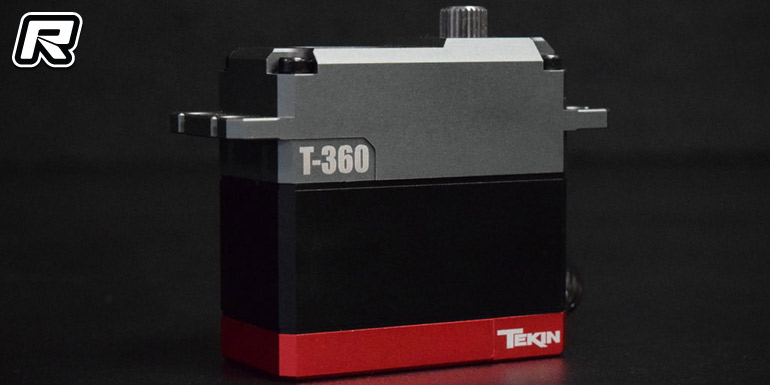

T-360 specifications:
– Torque: 29.8kg-cm @8.4V
– Dynamic Torque: 36.8kg-cm @8.4V
– Speed: 0.09s @8.4V
– Input voltage: 6.0V-8.4V
– Gear Set: Full metal
– Dimensions: 40x20x40mm
– Mounting height: 28.4mm
– Weight: 73g

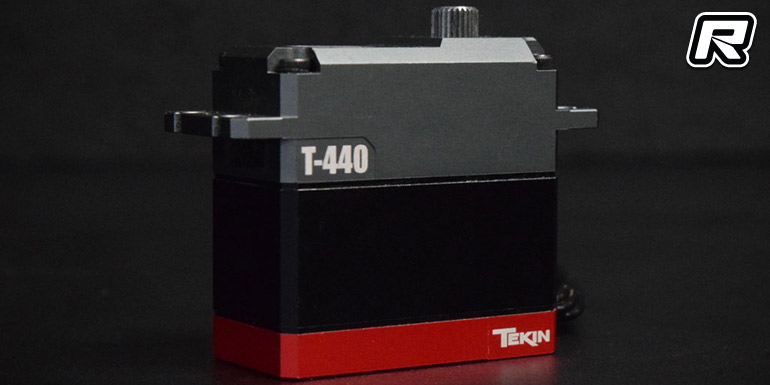

T-440 specifications:
– Torque: 36.2kg-cm @8.4V
– Dynamic Torque: 41.6kg-cm @8.4V
– Speed: 0.11s @8.4V
– Input voltage: 6.0V-8.4V
– Gear Set: Full metal
– Dimensions: 40x20x40mm
– Mounting height: 28.4mm
– Weight: 73g

Find all features and specifications here.

Source: Tekin [teamtekin.com]
