June 19, 2018

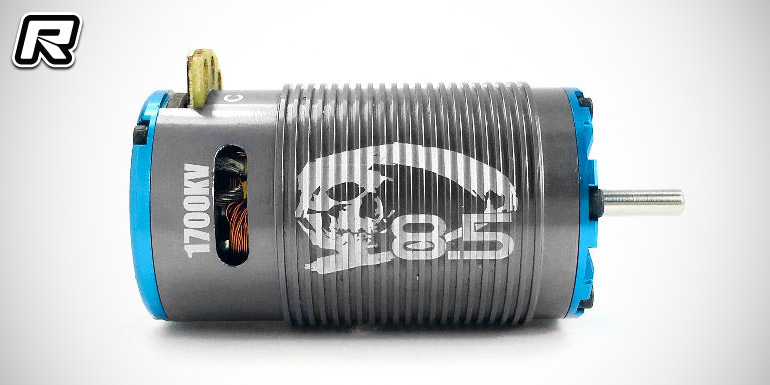

Trinity D8.5 1/8th scale brushless motor

Trinity have introduced their new D8.5 electric brushless motor for 1/8th scale vehicles. It features a new high-torque stator design and an all-new 4-pole rotor with multi-point rotational sensor pickups. Dual sensor ports ensure easy wiring as do the heavy duty low-resistance solder tabs. The grooved can design allows for more surface area and thus colour running temperatures and the motor is available in 1700kV, 2000kV and 2300kV variants from now on.

Features:
– New high torque stator design
– All-new 4-pole rotor design with multi point rotational sensor pickups

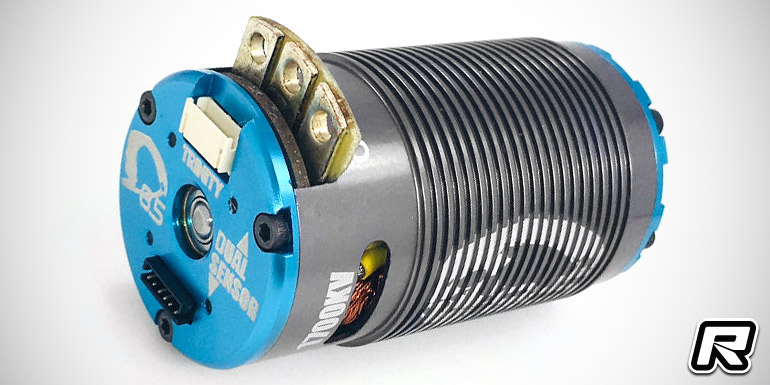

– Dual sensor ports
– 5mm shaft
– Oversized precision bearings
– Six 4mm mounting holes
– Heavy duty low resistance solder tabs
– Grooved can design allows for more surface area thus cooler running temperatures
– 42mm diameter
– 72mm length
– 352 grams (avg)
– Available in three KV power levels 1700kv, 2000kv & 2300kv
– Optional fan mount with 40mm fan available (TEP2210)

Source: Trinity [teamtrinity.com]
