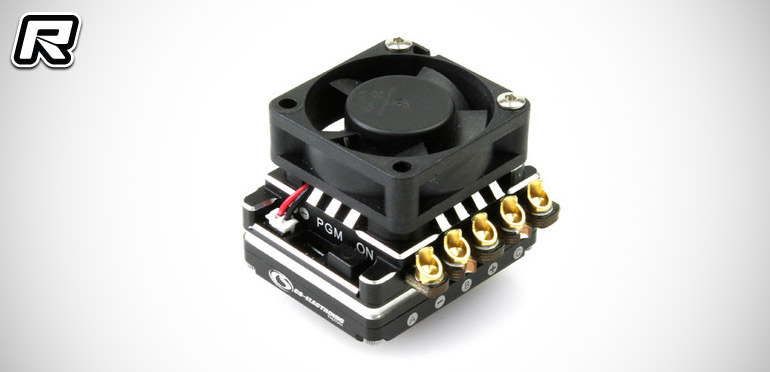

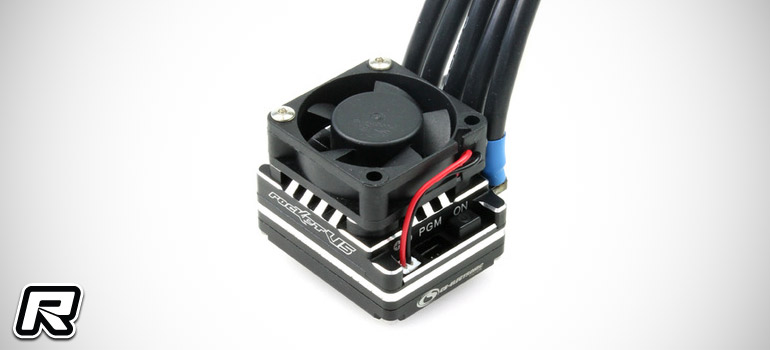

CS Electronic Rocket V5 brushless speed controller

Coming soon from CS Electronic is their new Rocket V5 brushless speed controller for 1/10th scale classes. The 160A-rated ESC utilises an all-aluminium case with built-in on/off switch and it features a greatly improved firmware that allows to use a new yet unexplained Race Mode, as well as adjustable dead band, HV BEC voltage, current limiter, power curve, throttle frequency, RPM limiter, brake frequency, boost start point and boost timing features. The controller is adjustable using an optional programming box or PC interface and it comes pre-soldered including black power wires, a high-performance capacitor and a high-airflow fan.

Specifications:
– Voltage input: 6.0V-10.0V
– LiPo input: 2S
– Constant current: 160A
– Peak current: 800A
– Resistance: 0.0003 Ohm
– Temperature cut-off: yes
– Low-voltage cut-off: adjustable
– BEC system: 6V & 7.4V/5A
– Fan: 5V/0.2A
– Motor: sensored & sensorless 540/550-size
– Motor limit: 3.5T star
– Dimensions: 38x36x20mm (29mm height with fan)
– Weigh w/o wires: 52g

Source: CS Electronic [cs-shop.de]
