September 26, 2018

Spektrum Smart Technology chargers & LiPo batteries

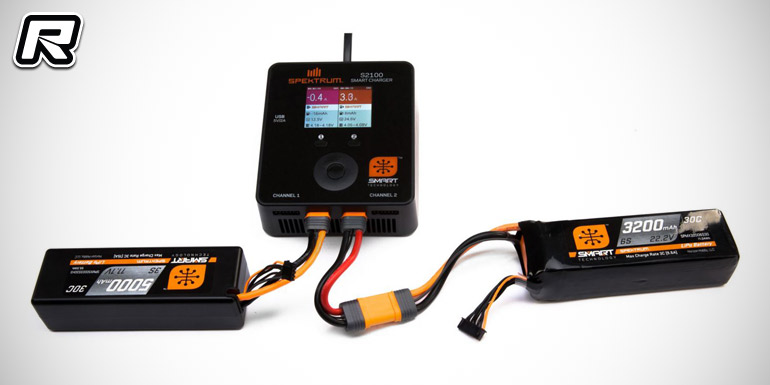

Coming from Horizon Hobby are the new Spektrum Smart Technology chargers and LiPo battery packs. The Spektrum Smart Technology practically takes care of all of the battery’s vital aspects while storing unique data such as chemistry type, cycle count, charge rate, error log, and more, plus programming options to custom tailor the Smart LiPo battery to the owner’s needs. This innovative connection is made possible by an installed microchip on every battery, feeding the unique information through a data cable to the new IC3 and IC5 connectors. Every Smart LiPo battery is factory assembled with the next-generation IC3 or IC5 output connector that’s conveniently compatible with older devices equipped with EC3 and EC5 connectors. Owners can use Smart batteries with non-Smart systems, but only when connected to a Spektrum Smart device will all the benefits of Smart technology become obvious.

Available chargers include the Spektrum Smart S2100 AC 2x100W dual output and S1200DC 1x200W single output charger both of which are touch wheel interface devices for easier programming of the various features while bright LED displays help to monitor all vital informations with ease.

S2100 specifications:
– Ampere Meter: Yes – on main LCD display
– Cooling Method: Cooling Fan
– Display: Backlit
– Height: 72mm
– Input Connector: AC
– Input Voltage: AC 100-240V
– Integrated Balancing: Yes – Internal Balancer & External Adapter
– Length: 120mm
– Model Memory: Spektrum Smart Technology
– Output Connector: IC3
– Selectable Charge Rate: Yes – Incremental (0.1A Increments)
– Voltage Meter: Yes – on main LCD display
– Weight: 558g
– Width: 108mm

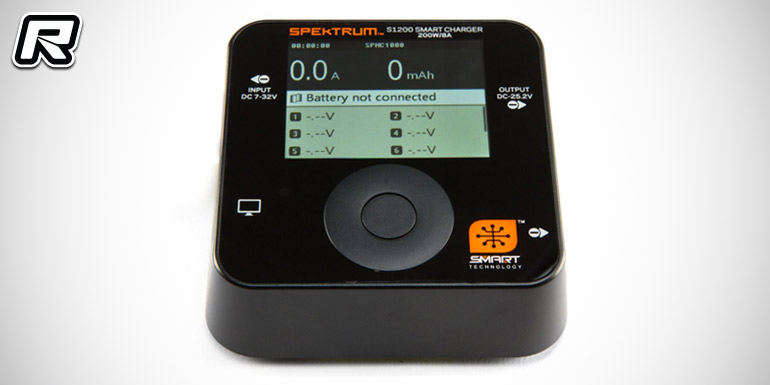

S1200 specifications:
– Ampere Meter: Yes – on main LCD display
– Cooling Method: Cooling Fan
– Display: Backlit
– Height: 34mm
– Input Connector: DC
– Input Voltage: DC 7-€“32V
– Integrated Balancing: Yes – Internal Balancer & External Adapter
– Length: 80mm
– Model Memory: Spektrum Smart Technology
– Output Connector: IC3
– Selectable Charge Rate: Yes – Incremental (0.1A Increments)
– Voltage Meter: Yes – on main LCD display
– Weight: 119g
– Width: 80mm

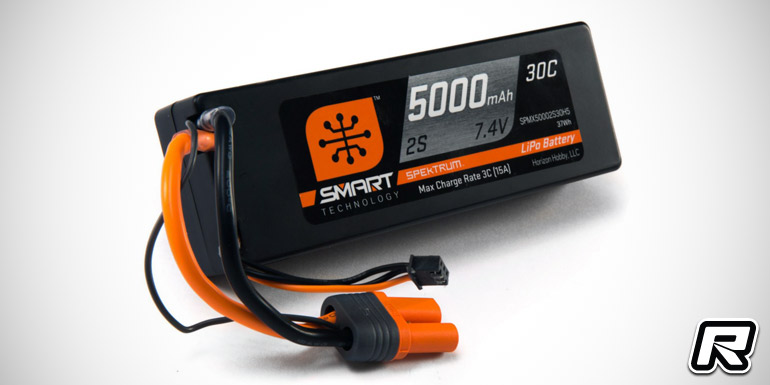

The Smart Technology batteries are available in various specifications such as 2S 5000mAh 30C, 3S 5000mAh 30C, and 4S 5000mAh 30C variants with IC5 connector as well as 2S 5000mAh and 3S 5000mAh packs with the smaller IC3 plug.

Source: Horizon Hobby [horizonhobby.com]
