Power Master Legend 12V 44A Dual Power supply

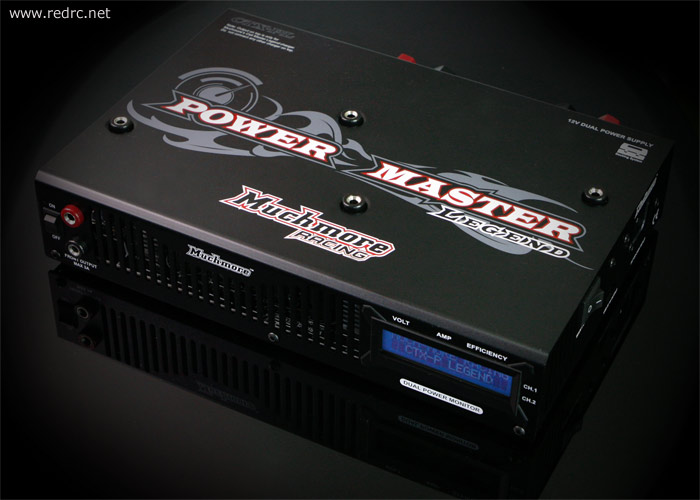

We have written briefly about the new Power Master Legend from Much More in the past, but now the Korean company have finally released their all new power supply. Inside each of the blue, black or purple anodized boxes, is 44A dual power supplies, which can easily power 2 separate chargers, such as the new Cell Master Legend, at any given time. Weighing in at 1.8kg they sport a top mounted docking station for two of the previously mentioned chargers that allows you to easily mount and power the chargers without the need for cables, freeing up the other outputs for other devices. Very quiet and stable, medium alligator clips & banana connectors can be used for connecting to output terminals, while a large display on the front shows the voltage, amperage and efficiency of each power supply.
Specifications
- Compact size: (L)263 x (W)179 x (T)52mm
- Light weight: 1,800grams
- Constant current: 22A x 2CHANNEL(total:44A)
- Peak current: 28A x 2CHANNEL@1sec(total:56A)
- Input: AC100-240ACV 50~60Hz (Auto adjusting)

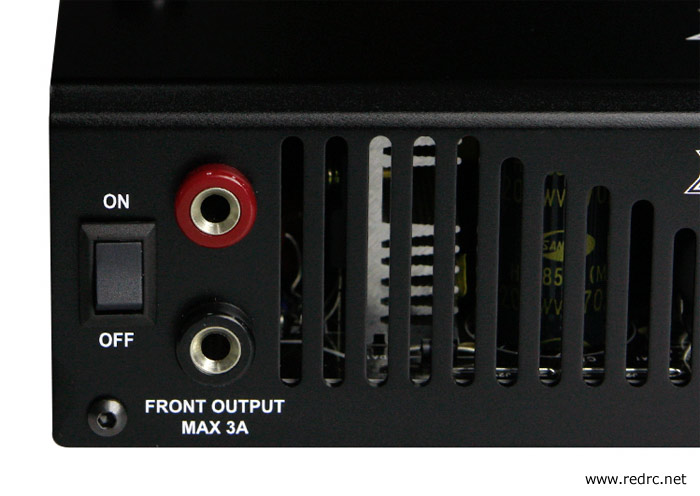

- Front service output: current Max 3A & overload protector

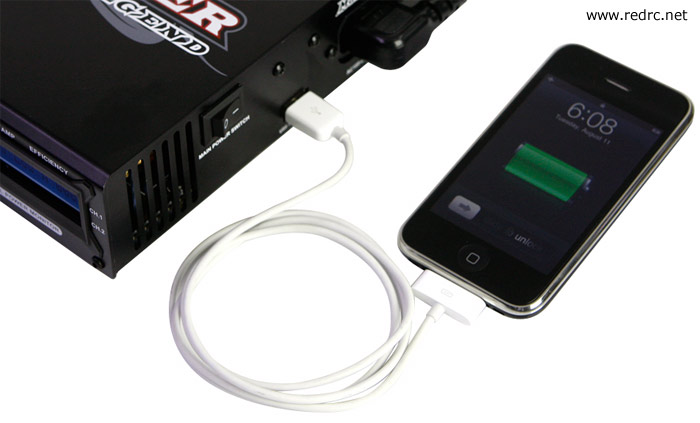

- USB output: 5V 1A (iPod & iPhone charging available)

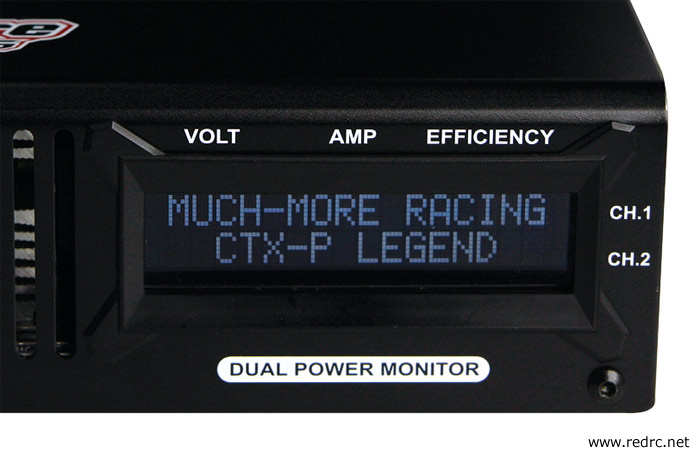

- Dual power monitor: Black LCD display

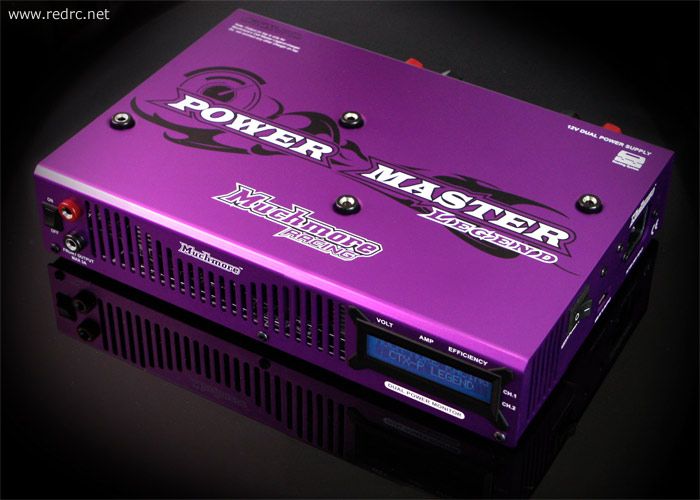

- Case color: Blue(MM-CTXPLB), Black(MM-CTXPLK), Purple(MM-CTXPLP) versions
Features
- Low noise and absolute stability
- Medium alligator clips & Banana connector can be used for connecting to output terminals
- Overload, short circuit, temp protector

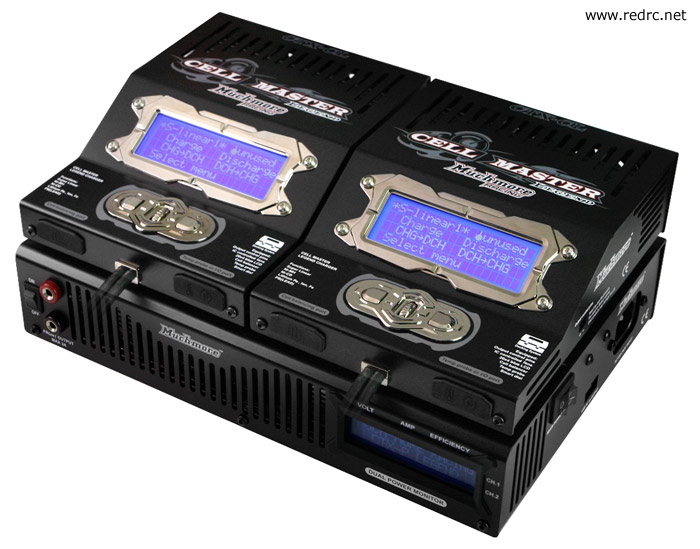

- Cellmaster legend docking system
- Cooling fan RPM adjustable
- Main power switch equipped
- Front service output separation switch
- Channel 1&2 Output Set Volt, using Amp, Efficiency real time display
Source: Much More [much-more.co.kr]
Categories - Electric, Much More, Power Supply, Products
Usage
If you republish any elements from this page on another website, including text, original pictures or formatted results please be sure to add a link back to this page as the source.
Related Posts
Comments
1. jonest - September 30th, 2009 at 20:35
I do hope that they will consider releasing a single unit. Who’s gonna lug a 1.8kg power supply nowadays?
Anyway great product there.
2. Nitro - September 30th, 2009 at 22:00
I don’t mind lugging that along . just wish they would get those chargers done already .
3. Miguel Braga - October 1st, 2009 at 00:50
No doubt is perfection in appearance and capabilities but what about the weight we have to load to the track?
When is available something more light and compact with the same Muchmore quality?
4. Brian - October 1st, 2009 at 16:05
When is it available?
5. pitnamedgordie - October 2nd, 2009 at 00:02
I don’t think it’ll be a problem to take to the track. The whole unit is kinda small. The question is the price!?
6. DN - October 2nd, 2009 at 01:57
As I’ve heard more then one person call them. CostMore. That pretty much says it all.
