KM Racing H-K1 200mm Touring car

KM Racing H-K1 200mm Touring car

KM Racing have released the firt information on their new 1/10 Scale full Option 200mm 4WD GP Touring car, called the H-K1. Still in prototype form, the new car will feature aluminium bulkheads similar to the current generation of cars in this class, together with carbon chassis stiffener, front and rear belt tension adjustment, ball raced rear anti roll bar and aerodynamically shaped front bumper. As this is the full option version, it comes standard with hard coated aluminium throughout, including the pulleys, with teflon coated aluminium front and rear shocks, ceramic 2-speed bearings plus a whole host of other option parts.

KM Racing H-K1 200mm Touring car

– Full car aluminium parts using A7075-T6 with special hard coating.
– Full car equip with aluminium hard coated pulleys
– Telfon coated aluminium front & rear shocks
– Full bearings with two ceramic bearings for two speed.
– Titanium 64Ti turnbuckle.
– Titanium 64Ti middle shaft
– Titanium 64Ti pivot balls
– KM aluminium front axle.
– KM carbon brake plate with special high friction brake pad.
– Aluminium hard coated servo saver.
– KM special ultra light weight clutch system.
– Full car equip with low friction belts
– Carbon & aluminium brake arm.
– Carbon battery plate.
– Carbon middle belt stand.
– Carbon middle mount collar.
– Carbon 2 speed shaft collar.
– Carbon rear stiffener.
– Front spring steel universal shaft.

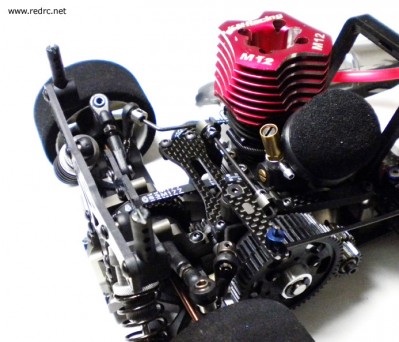

KM Racing H-K1 200mm Touring car

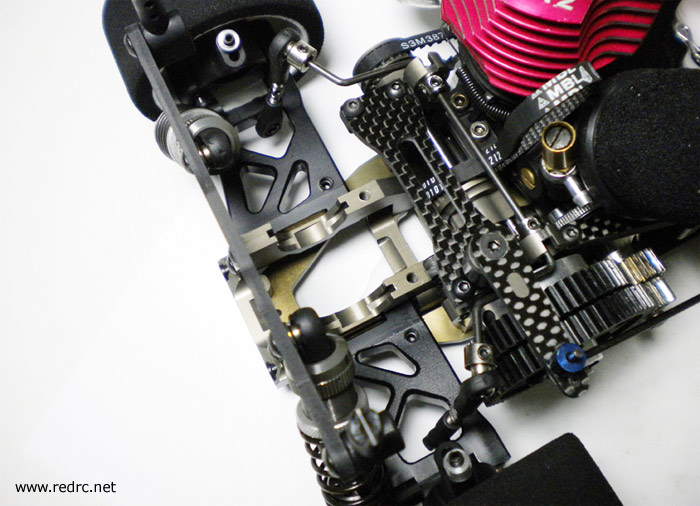

KM Racing H-K1 200mm Touring car

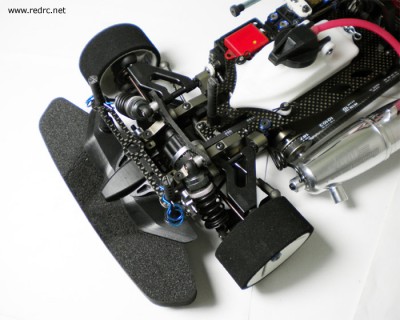

KM Racing H-K1 200mm Touring car

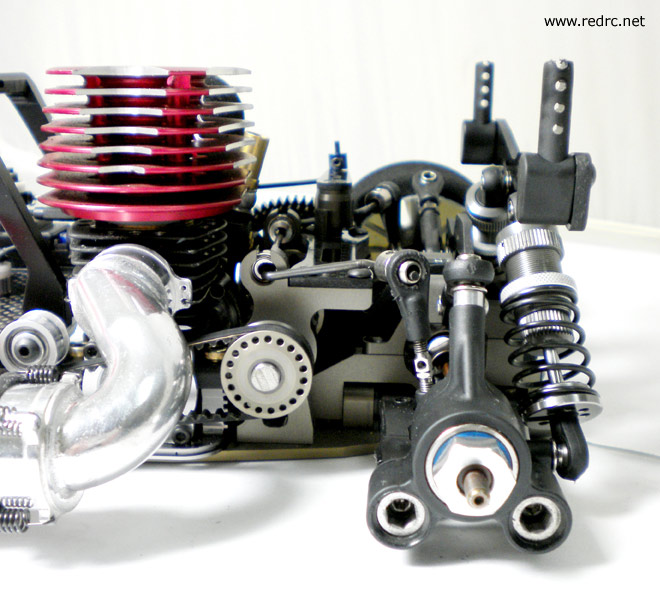

KM Racing H-K1 200mm Touring car

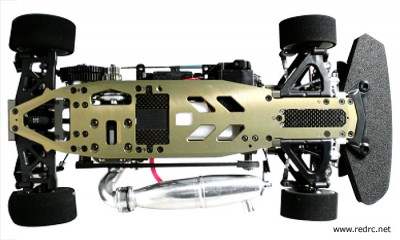

KM Racing H-K1 200mm Touring car

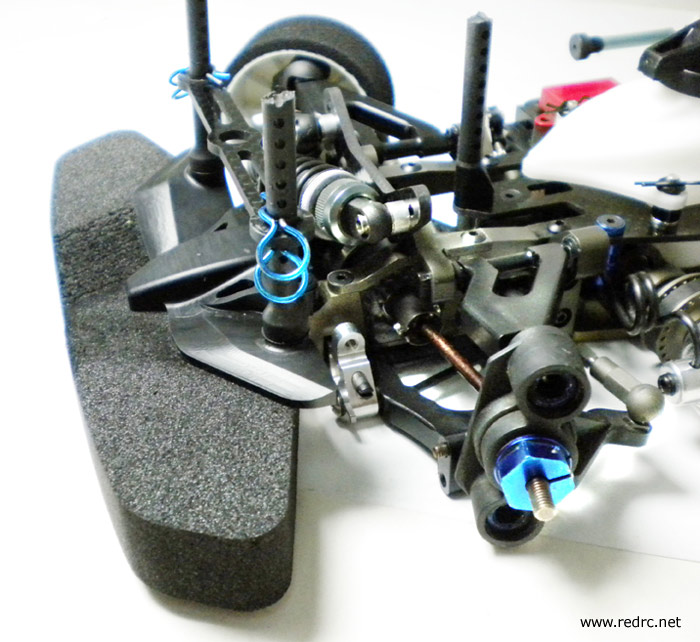

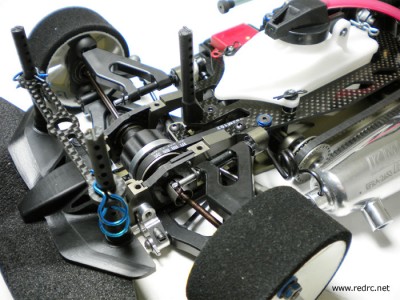

KM Racing H-K1 200mm Touring car

Source: KM Racing [km-rc.com]
