April 30, 2010

Associated RC8Be Factory Team kit

Associated RC8Be Factory Team kit

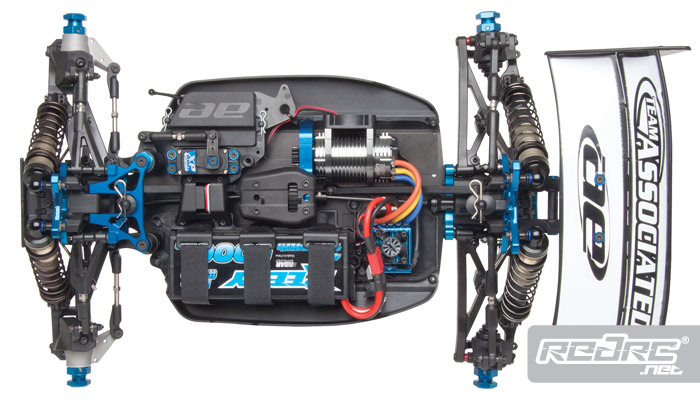

Team Associated have announced the RC8Be Factory Team kit, which picks up where the RC8e left off by adding many performance and durability enhancing features that were pioneered by the company’s Area 51 engineers and world-class team of pro drivers. The new RC8Be features include Factory Team 16mm Big Bore threaded hard-anodized shocks, RC8B 5mm 7075 blue aluminium shock towers, 7075 blue aluminium suspension mounts, Factory Team 7075 blue aluminium one-piece top plate and Pro-Line M3 Holeshot tires with molded inserts. Pre-assembled shocks, differentials and turnbuckles help get you on the track fast. Factory Team shock and diff fluids are also included.

Associated RC8Be Factory Team kit

RC8Be Factory Team Kit Features:
– Pre-assembled shocks, diffs, and turnbuckles with Factory Team shock and diff fluids included

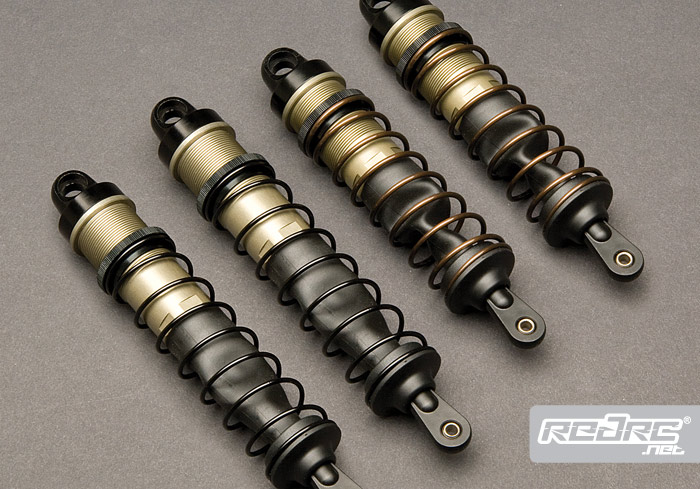

– Factory Team 16mm Big Bore threaded, hard-anodized shocks feature heavy-duty 4mm TiN-coated stainless steel shock shafts for maximum smoothness

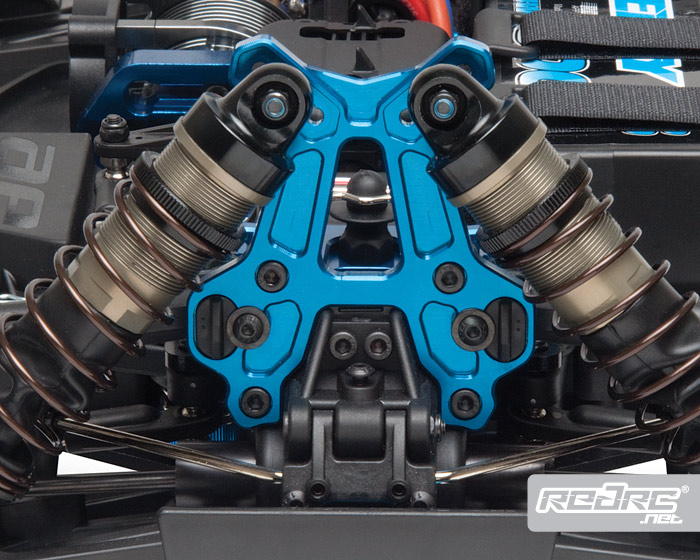

– Updated 5mm 7075 blue aluminium shock towers allow the driver to stand the shock angle up for a more aggressive suspension
– Optimized front upper camber link bushings allow for easier tuning and maintenance

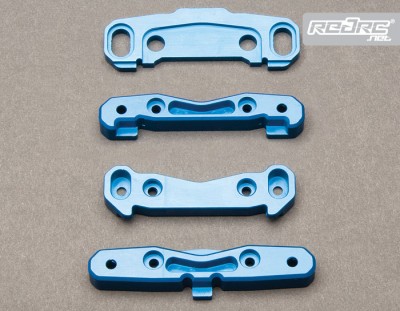

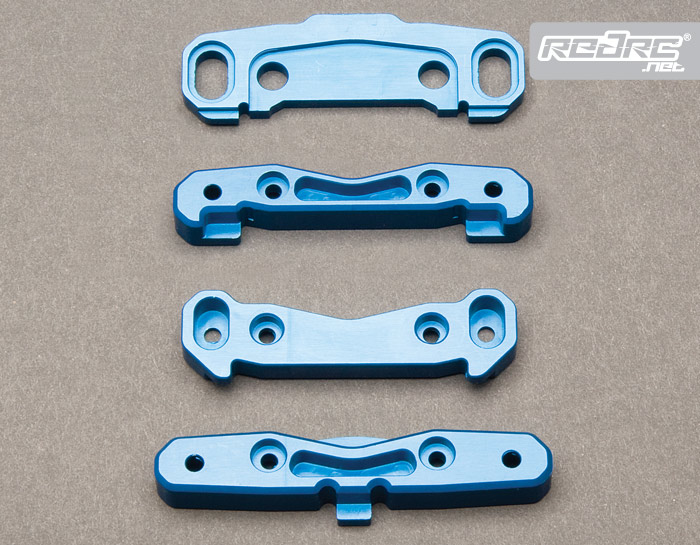

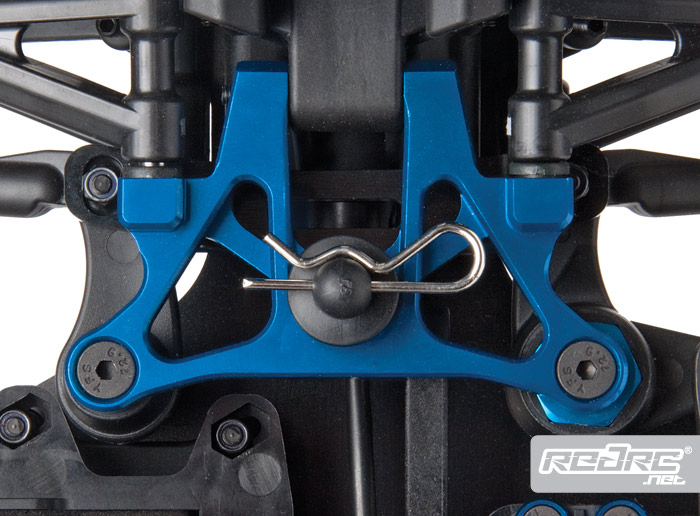

– 7075 blue aluminium suspension mounts front and rear
– Molded bushings allow for easy and quick adjustment of rear toe-in, rear anti-squat, and front kick-up

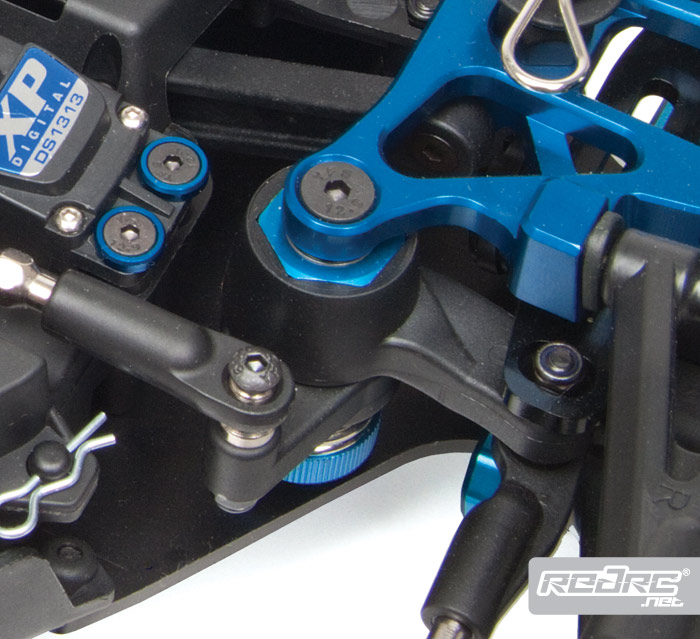

– Optimized steering geometry for more consistency and reduced bump steer
– Updated wing mount with additional clearance for 16mm shocks
– Molded battery tray supports two R.O.A.R. approved 1:10 scale size 7.4v LiPo battery packs with room for foam pads
– Molded composite front and rear chassis braces
– Factory Team 83mm wheels, Pro-Line M3 Holeshots with molded inserts included

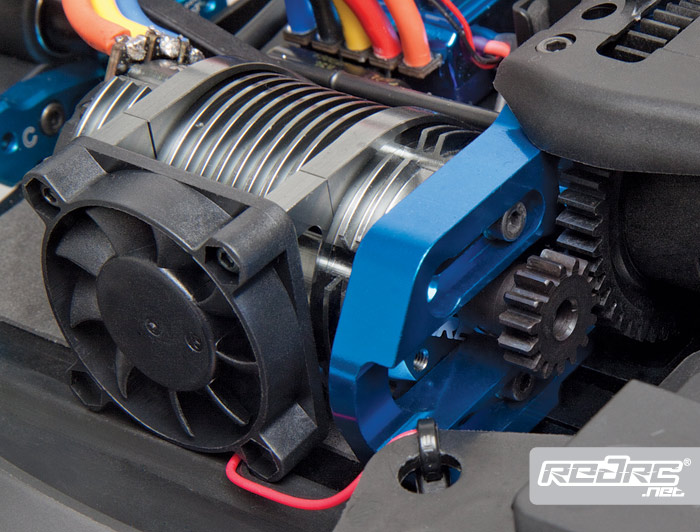

– Lightweight blue aluminium motor mount
– Factory Team 7075 blue aluminium one-piece top plate
– Lightweight 3mm hard-anodized chassis
– 4.30:1 ratio gearboxes for maximum punch
– Two-piece split-center diff mount allows quick and easy access to the center diff
– Caster blocks adjust 14°, 16°, or 18° with molded inserts
– 3.5mm light CVA drivetrain with full ball bearings
– Rear molded CVA boots to keep dirt and mud out of rear joints
– Blue aluminium hexes and nylon locking wheel nuts
– Tough steel-alloy shock stand-offs

Associated RC8Be Factory Team kit

Associated RC8Be Factory Team kit

Associated RC8Be Factory Team kit

Associated RC8Be Factory Team kit

Associated RC8Be Factory Team kit

Associated RC8Be Factory Team kit

Source: Associated [rc10.com]
