Robitronic Expert LD 15Z & 45 chargers

New from Robitronic is their new line of Expert LD chargers. Start with the 15z, it has built-in AC adapter, this multi-use charger is useful for 1-6 Li-Ion/LiPo/LiFe cells, 1-15 NiCd/NiMH cells and Pb 2-20V. Includes adapters for “Deans” style plugs, JST, Rx pack, glow plug lighter and alligator clips and the balance plugs are JST-XH type. The Expert LD 45 allows you to plug 4 batteries into one charger simultaneously and it will intelligently and automatically charge all 4 of them at once to their maximum capacity. To top it of the batteries being charged do not even need to have the same configuration. You can connect different chemistry Ni-MH/Ni-CD/LiPo/LiFe batteries into any of the charging ports.

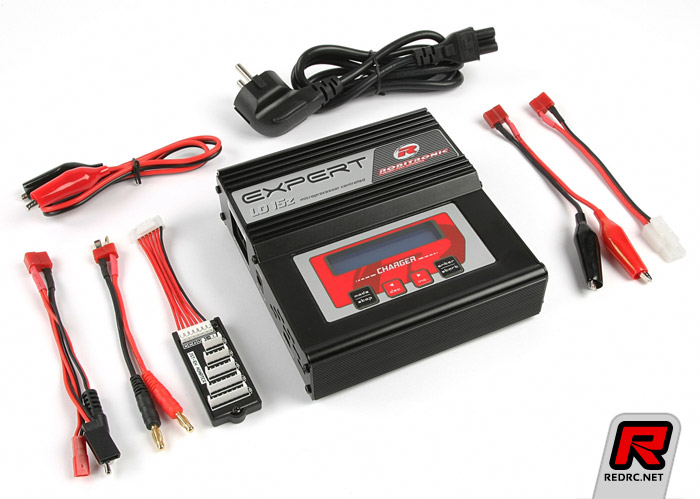

Robitronic Expert LD 15z

- Built-in AC adapter
- Balance individual cells during discharge
- Fast and Storage mode charging of LiXxx batteries
- Charges various types of LiPoly cells
- Data store/load
- Cyclic charging/discharging for NiXX batteries

Technical data:
Input Voltage DC: 11 – 18V
Input Voltage AC: 100-240V
Charge current: 0.1-5.0A
Discharge current: 0.1-1.0A
Max. charging power: 50W
Max. discharge power: 5W
Max. balancer current: 300mA
Max balancer error: +/-0.01V
Number of cells (NiXX): 1-15cells
Number of supported cells (LiXX): 1-6 (series)
Number of supported cells (Pb): 1-10 (2-20V)
Weight without cables: 577g
Dimensions: 138 x 147 x 47mm

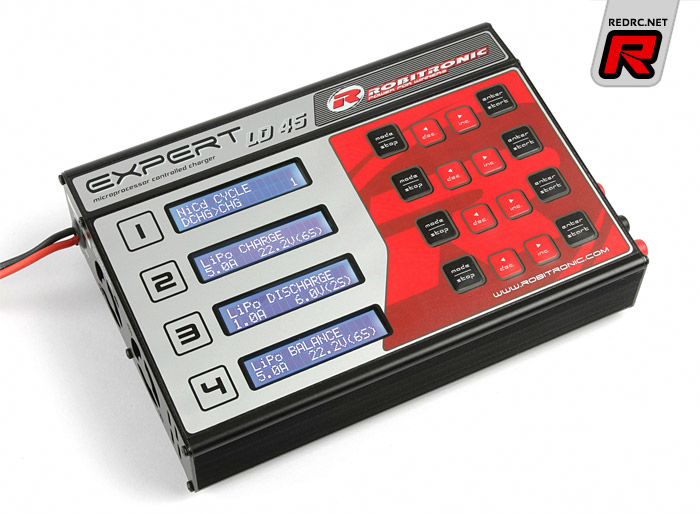

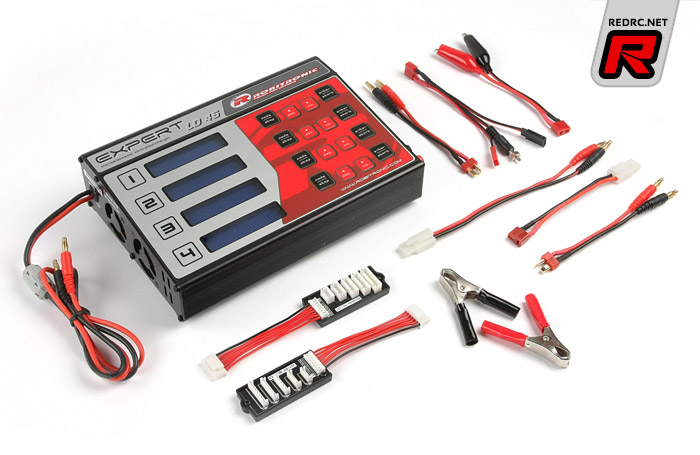

Robitronic Expert LD 45

- 4 channel multicharger
- Cyclic charging/discharging for NiXX batteries
- Fast and storage mode of LiXX battery
- Data store/load

Technical data:
Input Voltage DC: 11 – 18V
Charge current: 0.1-5.0A
Discharge current: 0.1-1.0A
Max. charging power: 50W x 4
Max. discharge power: 5W x 4
Max. balancer current: 300mA
Max balancer error: +/-0.01V
Number of cells (NiXX): 1-15 Zellen
Number of supported cells (LiXX): 1-6 (Serie)
Number of supported cells (Pb): 1-10 (2-20V)
Weight without cables: 1090g
Dimensions: 220x150x55mm

Source: Robitronic [robitronic.com]
