RB Automatic Damping System

RB Automatic Damping System

Developed in close collaboration with Italian company Fioroni for 2 years, RB have released a new innovative shock system which makes your shock absorber ultra progressive and with an automatic harder damping which has been the goal of racers for decades. Racers have tried pistons with balls, valves, conical holes, conical pistons, etc. but none ever seemed to work perfectly and also the construction into the small dimensions of an oil shock was also hard to make. So now there is the RB patented ADS (Automatic Damping System).

RB Automatic Damping System

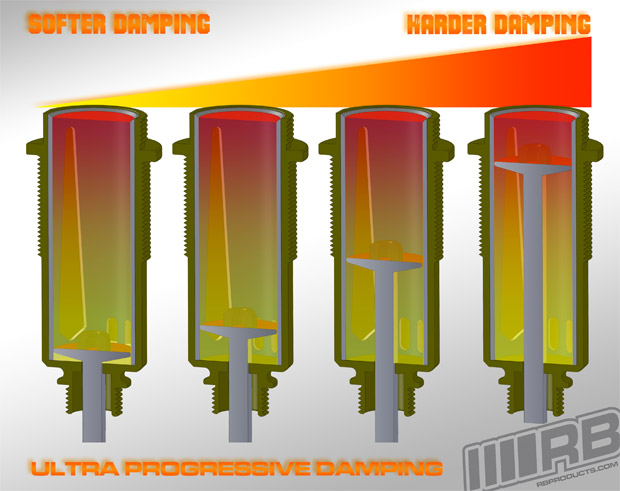

The special V design sleeve combined with a CNC piston without holes, allows the oil to go up and down with an ultra progressive oil flow. When the piston is at the bottom position the V shape is big and the damping is soft, when the piston goes up into the shock body, the V shape becomes smaller and the damping becomes harder. When the piston is at the upper position (small V size area) the damping is hard and when the piston goes down, the V shape becomes larger and the oil flow is increased which lets the piston return quicker to its bottom position which lets the wheels come in contact with the ground quicker.

Last, the actual big bore shock absorbers are better for damping but become less “reactive” because of the big diameter/big pistons with big oil flow. With ADS, the sleeve reduces the inside diameter and it makes the piston travel become more reactive too.

RB Automatic Damping System

The Delrin piston is adjusted by hand with the hard coated 7075 T6 sleeve for a low friction to ensure a free movement. The 6 lower escape channels let the oil move when the piston is at the bottom position.

Source: RB [rbproducts.com]

Categories - Accessories, Products, RB Products

Usage

If you republish any elements from this page on another website, including text, original pictures or formatted results please be sure to add a link back to this page as the source.

Comments

1. Justin Muckridge - May 22nd, 2013 at 19:14

This might allow shock bodies to become plastic with this aluminum insert and further reduce weight. Great concept!

2. KOULLIT -Sylvéris - May 23rd, 2013 at 04:10

I think it’s a good idea too, because it’s my “system”.
And the difference with the other people who are saying, I tough to this system too, is this proof :

http://www.rctech.net/forum/nitro-off-road/554372-idea-other-piston-system.html

Bye !

3. Soeren Christensen (DK) - May 23rd, 2013 at 11:52

Koullit

Could not agree more with you. Following your link it is obvious that it is your idea and you published that some two years ago. Interesting to see that the company used 2 years for development.

A clean steal and no glory to you

4. SHY - May 23rd, 2013 at 12:16

Cool! Way to go Rody!

5. RC_MAN - May 24th, 2013 at 14:00

Good luck defending the patent when the idea was published 2 years earlier.
