December 8, 2014

Exotek F1R2 IFS independent front suspension set

Exotek F1R2 IFS independent front suspension set

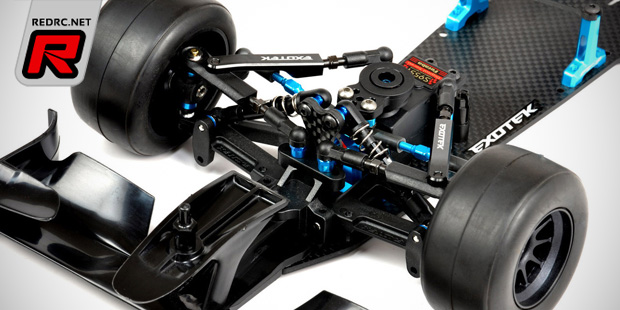

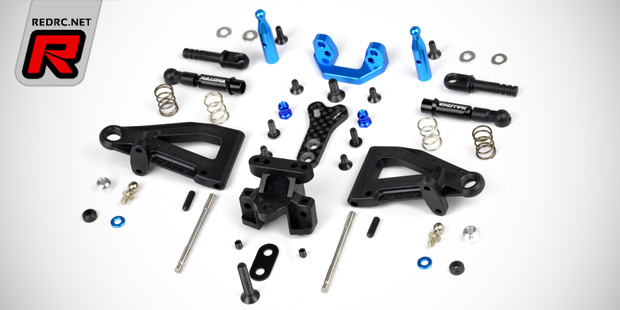

Exotek introduce the F1R2 IFS independent front suspension set that is designed to overcome the very limited suspension travel of standard can car type front suspension. The sweet spot is only about 2mm of travel which means abrupt and non linear car handling. With an IFS suspension the car handling becomes much more linear with real body roll characteristics which means you can drive harder into a corner while maintaining stability and confident road holding performance which translates to improved overall race time results and consistency. The 48 parts set contains all needed parts to convert the front suspension of cars with F104-type front suspension with parameter like droop, ride height, damper angle, spring rate, roll centre, camber and caster all being available from stock or using optional parts. Included are also two pairs of springs; black medium hardness for Ride tyres or low-grip conditions and silver firm springs for Shimizu or TCS tyres and high-grip tracks. The design fits onto the standard F104 bolt pattern but Tamiya type chassis are too narrow for the droop stop screws and the F104 servo mounting will not work. Exotek will work on developing the IFS set next to be able to work with standard Tamiya type chassis.

Exotek F1R2 IFS independent front suspension set

Exotek F1R2 IFS independent front suspension set

Exotek F1R2 IFS independent front suspension set

Exotek F1R2 IFS independent front suspension set

Exotek F1R2 IFS independent front suspension set

Source: Exotek [exotekracing.com]
