July 1, 2015

JConcepts B5M 4-hole rear ballstud mount

JConcepts B5M 4-hole rear ballstud mount

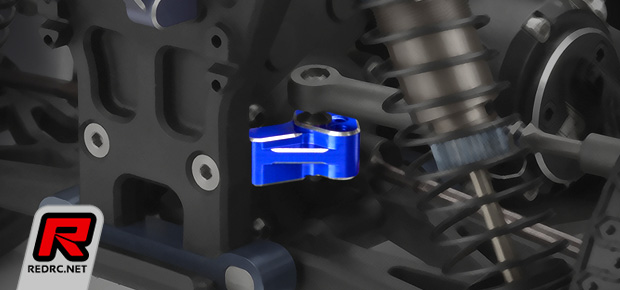

Coming from JConcepts and made for Team Associated B5M-based vehicles is an aluminium 4-hole rear ballstud mount. Offering two new, additional holes for camber gain adjustment as well as two standard holes the mount allows an in-between setting as well as an evenly spaced 4th hole all the way inside. In addition, the mount also features a setting which allows the racer to change the orientation of the mount to either -2mm or +2mm of inner ball-stud height. The durability in this mounting area has been put to the test with difficult race circuits and especially with the introduction of the T5M and the pending release of the SC5M. The JConcepts part therefore also has added thickness around the screw mounting holes, a thickened main connection U-brace and for twisting and bending resistance a thick rib added from the main body to the screw location boss. The part fits all M-series Team Associated off-road vehicles and it comes black or blue anodised.


JConcepts B5M 4-hole rear ballstud mount
JConcepts B5M 4-hole rear ballstud mount

Source: JConcepts [jconcepts.net]
