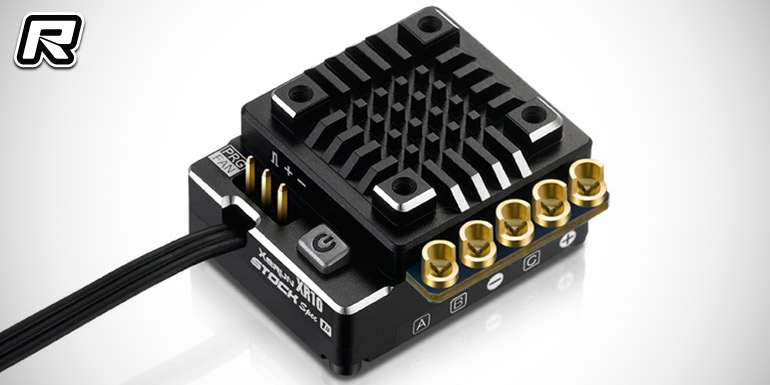

Hobbywing XR10 Pro Stock Spec 1S speed controller

As announced in Jason Ruona’s video interview with U.S. Hobbywing representative Ron Schuur, Hobbywing have introduced the XR10 Pro Stock Spec 1S brushless speed controller. Based off of the standard Pro Stock, the 1S variant is aimed specifically towards single-cell 1/12th and 1/10th scale racing. Housed in a compact aluminium case with heatsink upper section the controller features five pre-set profiles for the most common applications but it is also highly customisable using Hobbywings LCD programming box, PC interface or WiFi Express module and a mobile device. The built-in on/off switch reduces wiring work and data logging capability makes drivetrain setup more convenient. The 80A rated ESC is only usable with 1S LiPo or three to four cell NiMH packs and it features a switch mode 6V/7.4V BEC system, doing away with the need to use additional receiver battery packs.

Specifications:
– Peak/continuous current: 80A/380A
– Input voltage: 1S LiPo, 3-4 cell NiMH
– BEC output: 6/7.4V @3A
– Wires: 14AWG
– Dimensions: 31.6×25.8×16.2mm
– Weight 23.5g w/o wires
– Motor limit: 10.5T 3650-size motors

Source: Hobbywing [hobbywing.com]
