TecnoPower B01-21 buggy motor
Having brought you the first photos and information on the new B01 engine from TecnoPower, the Italian company has released further details about their new buggy motor. The engine features a chrome-plated 5-port liner with 5 intakes and 1 exhaust for high durability and long life, with the fully machined silicon charged aluminium piston sports specially designed lubrication rings for low friction properties between the piston and sleeve. The new developed slide valve carburetor and 7mm venturi allows quick and easy tuning to specific race conditions and to keep things as simple as possible for the user, this specific carburetor has only 3 possible adjustments, high speed-needle, idle-needle and air-screw. The SG, or now also called SPT, style 14mm crankshaft in the B01-21 is made from a special steel containing an unique composition that has been heat-treated, machined and finished to perfection and with no need for extra counter weights it’s also lighter. The special shape of the crankshaft, and specially developed internal diameter, provides a special flux for an optimum fuel-air mixture.

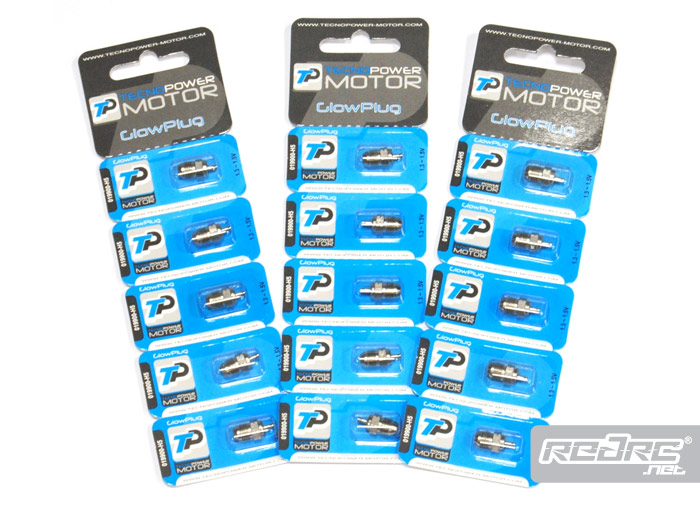

Continue to go through the various components, the conrod has been made out of the best aluminium available and its knife-edged design made to reduce internal turbulence, while a specially selected bronze material for the bushing is used to decrease the internal friction and wear. A new special method to lubricate the crankshaft-pin is used for this conrod to increase the lubrication film and reduce friction. The specially selected bearings chosen for these engines are of the high-speed type to obtain the highest reliability and performance, while the glow plugs used for the “B01″ are of the conical/turbo type and made out of stainless steel.
Source: TecnoPower [tecnopower-motor.com]
Categories - Engines, Products, TecnoPower
Usage
If you republish any elements from this page on another website, including text, original pictures or formatted results please be sure to add a link back to this page as the source.
Related Posts
Comments
1. X - April 15th, 2010 at 17:55
Another bastardized GRP…
2. BaNdit400 - April 15th, 2010 at 23:36
X, please read carefully the page “About Us” on TecnoPower website: “TecnoPower is the result of an exceptional concourse of circumstances. For more then 4 years the company Tecnomeccanica Srl has been the main producer of the previous GRP engine line and glowplugs, while GRP stopped their activity in 2008 and the owners of Tecnomeccanica found themselves with a lot of investments made in special tooling and machines. Beside their already substantial experience of in the field of high precision mechanics but also a lot of experience accumulated while producing for GRP, the owners of Tecnomeccanica and Rody Roem have decided to create a new and dedicated company with the goal to produce “Just Better” model racing engines.”
In other words, this is the engine of the original GRP project. ;)
