T.O.P. Racing Sabre FD chassis

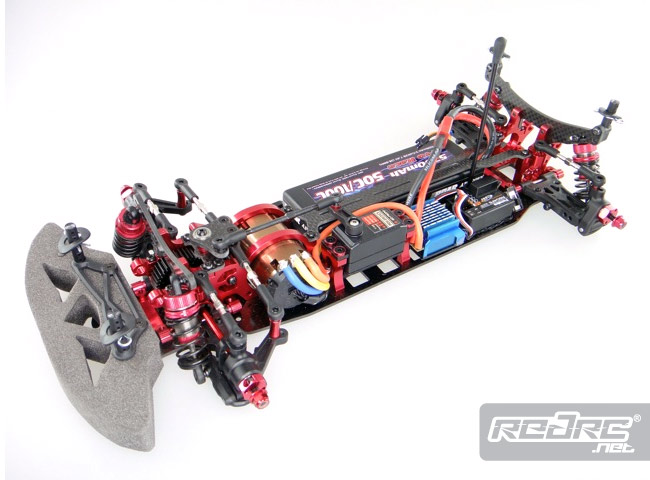

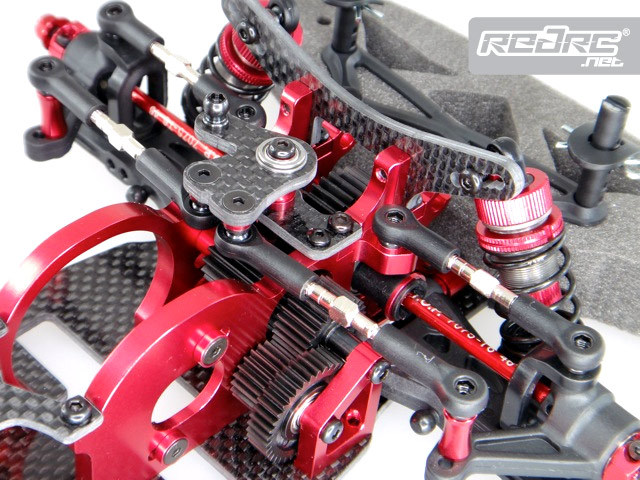

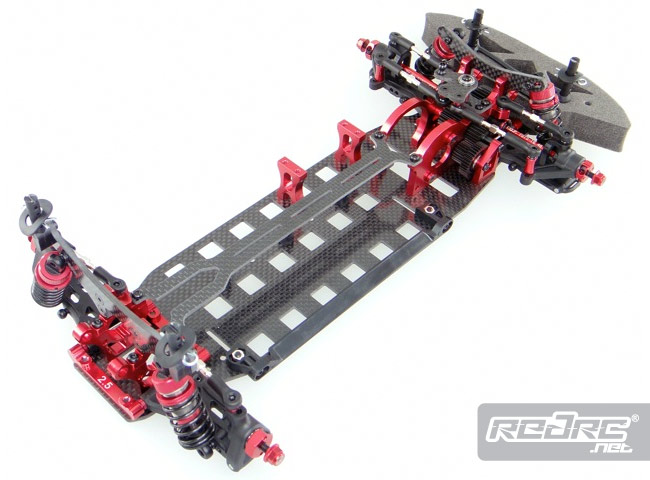

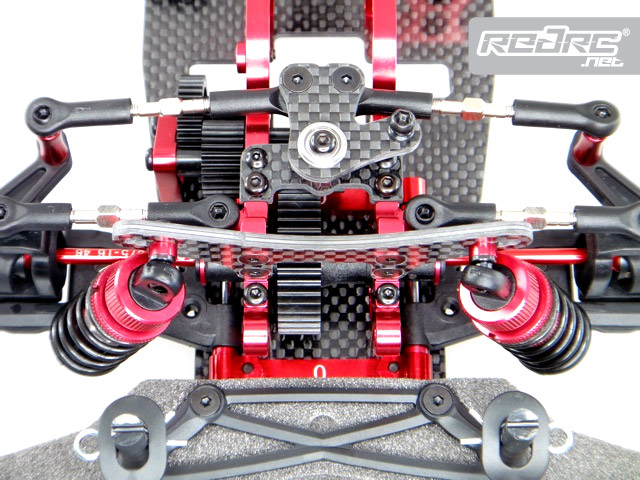

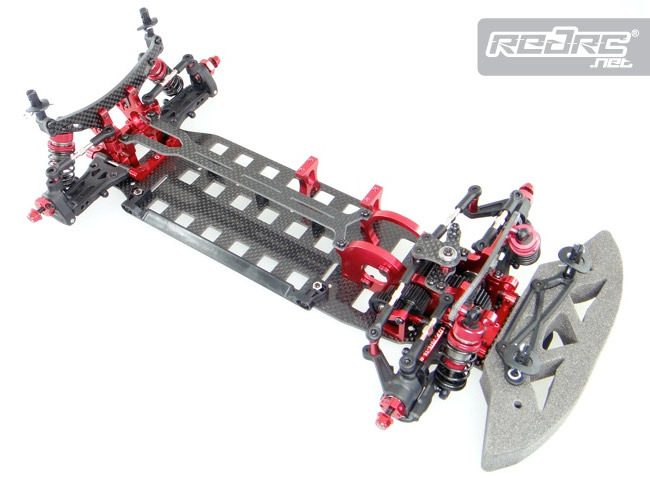

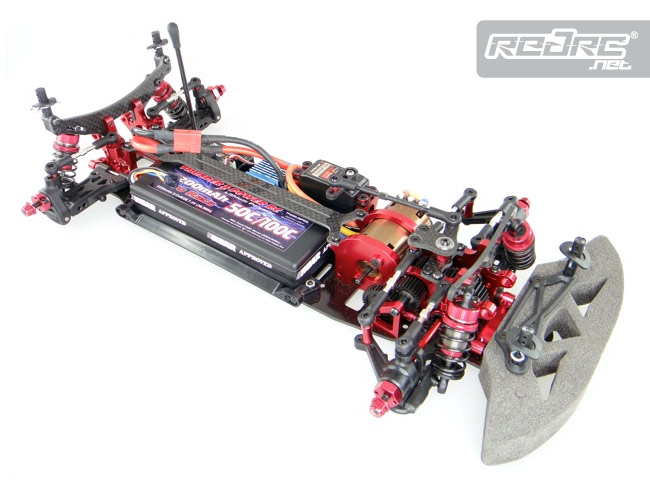

Having shown you the first CAD images from the new T.O.P. Sabre FD front wheel drive chassis back in February, the car is now ready and specs have been finalised. Using a gear driven front drive system, it features a super narrow 2.5mm thick chassis design and alloy bulkheads & motor mounts for improved heat dissipation. Other features include alloy threaded shock absorbers, alloy hex wheel hubs, a front ball differential and 3 step adjustable steering Ackermann.

Features:
Drive System: Gear Driven FWD
Super Narrow Chassis Design
Light Weight, Low Center of Gravity
Alloy Bulkhead and Motor Mount: improve gear ventilation & heat dissipation.

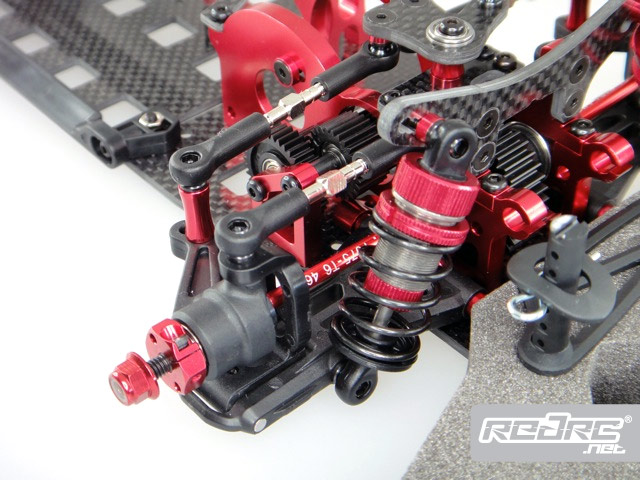

Alloy Threaded Racing Shocks
Alloy hex Wheel Hubs
Nickel Plated Steel Turnbuckles
Differential: Front Ball Diff.
Ackerman: 3-steps Adjustment
Suspension Parts: Photon Compatible
Weight Tray, Battery Guide & Positioning System: for weight balancing
Easy Drive Train Maintenance
Reversible Front & Rear Suspension Arms: more shock mounting positions

Specifications:
2.5mm Chassis
2.0mm top deck
3.0mm Shock Towers
Drive Ratio: 3.134 internal
Spur Gear Pitch: 0.6
Chassis Length: 380mm
Width: 190mm
Wheelbase: 255-258 (adjustable)
Kit Weight: 1,350g
Camber: Adjustable Front & Rear
Caster: 4-deg
Toe: Adjustable Front & Rear
Roll Center: Adjustable Front & Rear
Down-Stops: Adjustable Front & Rear
Ride Height: Adjustable Front & Rear
Bump-Steer: Adjustable
Anti-Dive/Kick-Up: Adjustable
Full Ball Bearings

Source: T.O.P. [top-racing.jp]
