December 2, 2010

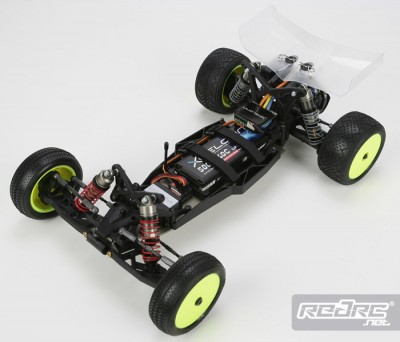

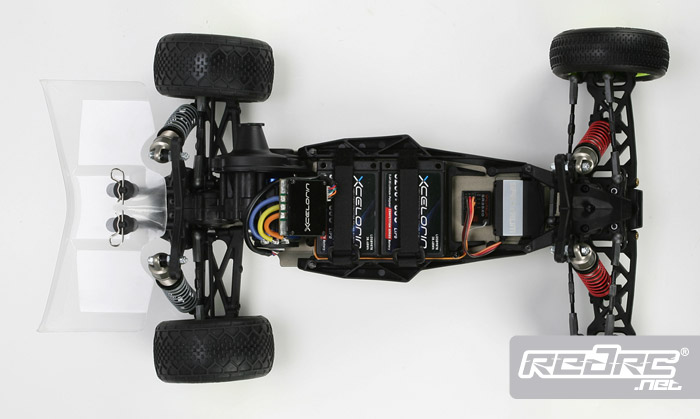

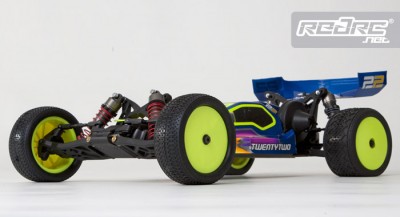

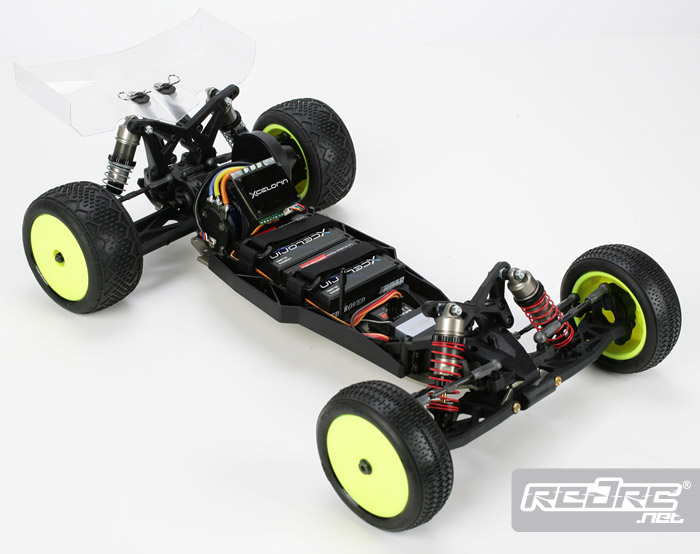

Team Losi 22 1:10 Electric 2WD Racing buggy

Team Losi 22 1:10 Electric 2WD Racing buggy

Team Losi have introduced the all-new “22” 1:10 Electric 2WD Racing buggy which they claim redefines the norm and raises the standard that all 1:10 electric off road racing buggies will be marked by. For the past few months, the TLR team have quietly been gathering data, testing prototypes and accruing information about the 1:10 off-road global race scene. The 22 is the result of many months of hard work and countless hours and thousands of laps of testing. Testing in the hot sunny climate of Southern California and the wet and often uncompromising weather of the UK, the TLR design team have encouraged and supported input from our global team drivers in the quest to deliver the most complete competition buggy in the world.

Team Losi 22 1:10 Electric 2WD Racing buggy

Specification:
Type: Electric Race Buggy
Scale: 1/10
Length: 389mm (15.125″)
Width: 250mm (9.875″)
Wheelbase: 284mm-288mm (11.81″ – 11.33″)
Chassis: 2.5mm 7075 T-6 Aluminum
Suspension: Independent
Shock Type: Oil Filled with Bladder Compensation
Drivetrain: 3 Gear and 4 Gear Transmission
Differential: Ball Differential
Wheel Type: Dish
Wheel Diameter: 2.2″ (55.9mm)
Wheel Width: Rear 38.1mm (1.5″), Front 24.8mm (.980″)
Tyre Compound: No tyres included
Spur Gear: 76
Gear Pitch: 48
Internal Ratio: 2.43:1
Kit or RTR: Kit

Losi 22

Features:
– Mid- and Rear-Motor Option
– 2.5mm Hard Anodised Aluminium Chassis
– Adjustable Caster via the Spindle (0, 3, 5, 10°)
– 12mm Big Bore Aluminium Shock with Bladder Compensator
– Adjustable Front Kick via Shims
– All-Metric Hardware
– Adjustable Spindle Carrier (Inline or Trailing)
– Gull Wing Suspension Arm Design (Front and Rear)
– Wide Range or Rear Toe Adjustability
– Optimised Motor Placement for Balance
– Simple Repair Bolt-On Camber Blocks
– Innovative Steering Rack Design
– 3.5mm Heavy-Duty Turnbuckles
– Long-Life Titanium Nitrated Hinge Pins
– Vertical Mounted Ball Studs
– Optimised Battery Tray to Use Future Battery Technology
– Dual Disk Slipper Clutch
– Secure Battery Straps

Losi 22

Team Losi 22 1:10 Electric 2WD Racing buggy
