Team Orion Vortex R-series controllers

Team Orion introduce their full line of Vortex R-series electric brushless speed controllers. Covering both the needs of the intermediate level and pro racer the swiss company offers 1/10 scale and 1/8 scale controllers for various applications from 1/12 scale up to 1/8 scale. All variants offer offer adjustable drive modes, various software parameters like drag brake, punch and low-voltage cut-off via on-board programming or the optional DSB-R Digital Program Box. Available are 1/10 scale pro and sport variants in the form of the R10Pro, R10S/SC and R10 Sport as well as the R8Pro, R8S and R8.

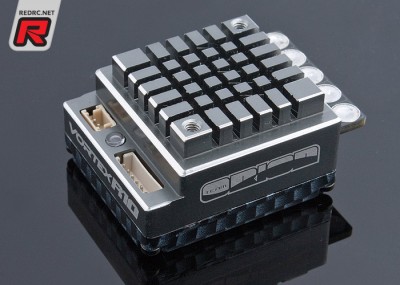

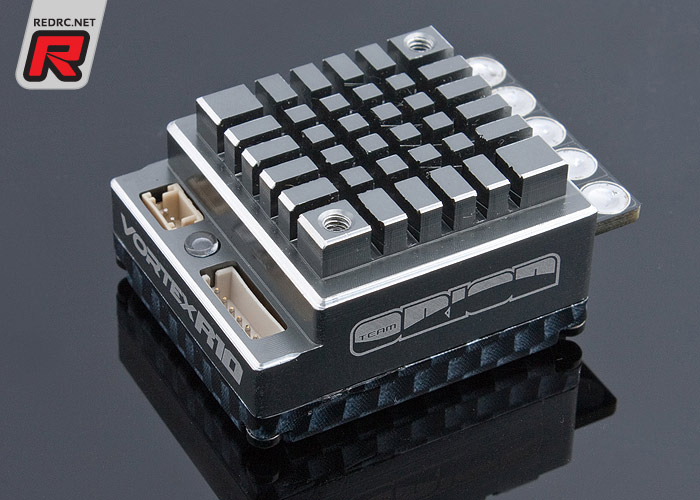

Specifications Vortex R10Pro (2-3S)
- Type: Sensor/Sensorless
- Constant/Peak Amp: 160A/760A
- Motor limit: 2.5T(2S)/5.5T(3S)
- Battery type: 2S to 3S LiPo
- BEC: 5.75V/3A, Linear mode
- Dimensions: 41.5×30.5×20.2mm

Specifications Vortex R10Pro (1-2S)
- Type: Sensor/Sensorless
- Constant/Peak Amp: 120A/760A
- Motor limit: 3.5T(1S)/4.5T(2S)
- Battery type: 1S to 2S LiPo
- BEC: 6V/2A, DC/DC Booster
- Dimensions: 41.5×30.5×16.5mm

Specifications Vortex R10S
- Type: Sensor/Sensorless
- Constant/Peak Amp: 100A/520A
- Motor limit: 6000kv(2S)/4000kv(3S)
- Battery type: 2S to 3S LiPo
- BEC: 6V/3A
- Dimensions: 53.5x36x36mm

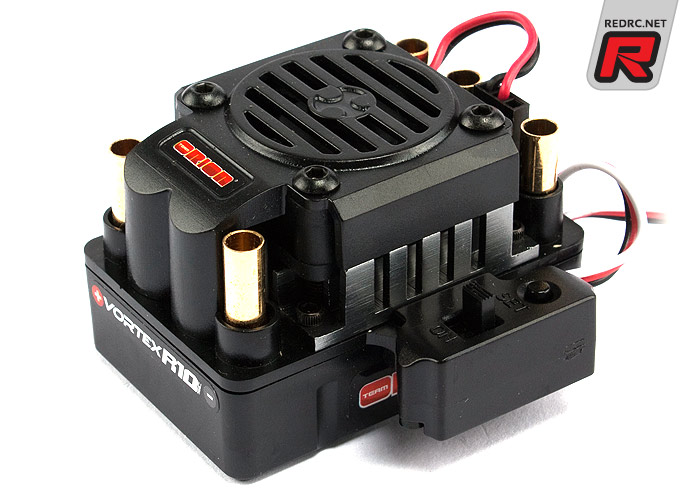

Specifications Vortex R10SC
- Type: Sensorless
- Constant/Peak Amp: 100A/520A
- Motor limit: 6000kv(2S)/4000kv(3S)
- Battery type: 2S to 3S LiPo
- BEC: 6V/3A
- Dimensions: 53.5x36x36mm

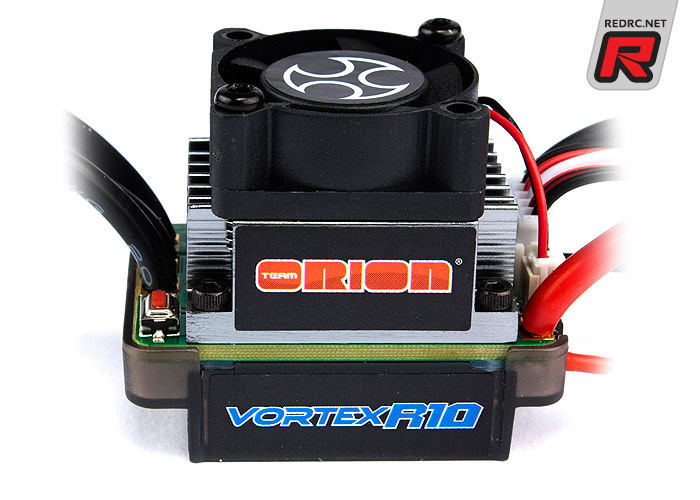

Specifications Vortex R10 Sport
- Type: Sensorless
- Constant/Peak Amp: 45A/290A
- Motor limit: 6000kv(2S)/4000kv(3S)
- Battery type: 2S to 3S LiPo
- BEC: 6V/3A
- Dimensions: 31.5×27.5x33mm

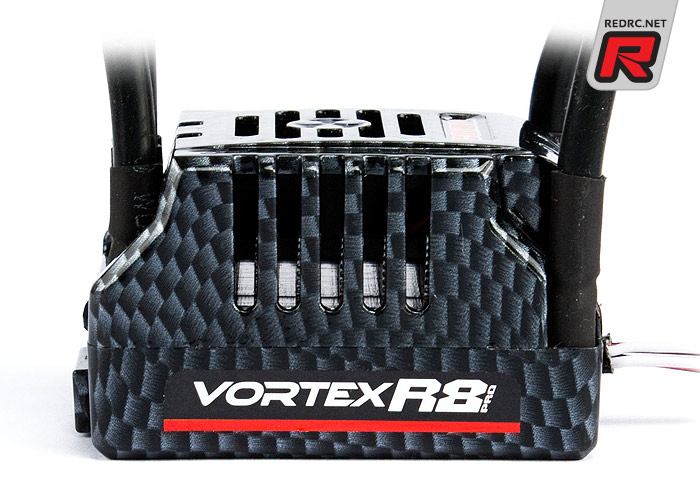

Specifications Vortex R8 Pro
- Type: Sensor/Sensorless
- Constant/Peak Amp: 180A/950A
- Motor limit: 3000kv(4S)/2400kv(6S)
- Battery type: 2S to 6S LiPo
- BEC: 5.75V/3A
- Dimensions: 56×46.5x35mm

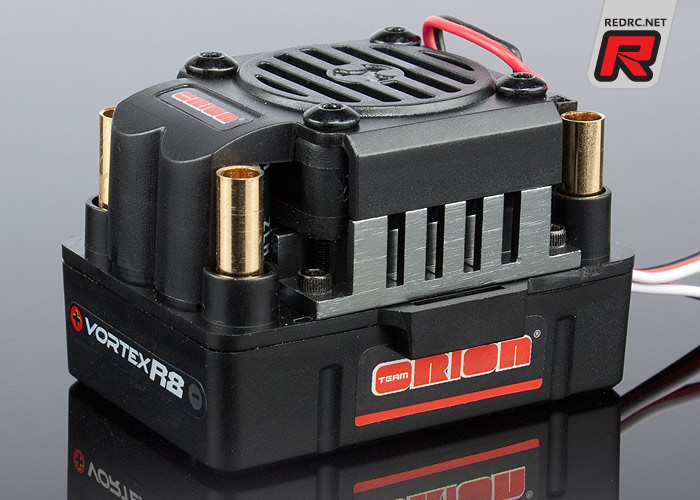

Specifications Vortex R8
- Type: Sensor/Sensorless
- Constant/Peak Amp: 130A/760A
- Motor limit: 6000kv(2S)/4000kv(3S)/3000kv(4S)
- Battery type: 2S to 4S LiPo
- BEC: 6V/3A
- Dimensions: 53.5x36x36mm

Specifications Vortex R8
- Type: Sensorless
- Constant/Peak Amp: 130A/760A
- Motor limit: 6000kv(2S)/4000kv(3S)/3000kv(4S)
- Battery type: 2S to 4S LiPo
- BEC: 6V/3A
- Dimensions: 53.5x36x36mm

Source: Team Orion [teamorion.com]
