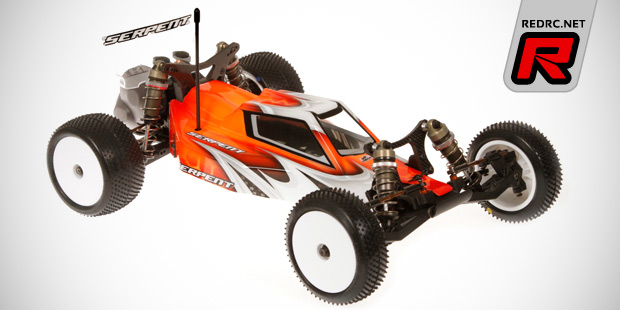

Serpent Spyder 2WD buggy kit

After releasing first teaser images Serpent now have body-off images and additional information on the Spyder 2WD buggy available. Thought out by  Cobra 1/8 buggy designer and former World Champion Billy Easton the Spyder is a purpose-built rear motor buggy with a composite rub chassis, 3-gear gearbox with 3-pad slipper clutch and adjustable differential height. The differential itself is a ball-type unit with large balls for improved power transfer while retaining good drivability on slippery surfaces. The suspension is highly adjustable and allows for easy castor changes using 0° to 2.5° inserts while at the rear toe-in, roll centre and anti-squat settings are adjustable inboard with the rear hubs allow also outboard toe changes. Included are 12mm RCM-type big bore shock absorbers, carbon fibre shock towers, metric hex hardware, lightweight yet durable spring steel driveshafts and an aerodynamic cab forward body shell. A dedicated mid motor buggy for high-traction surfaces will follow soon.

Features

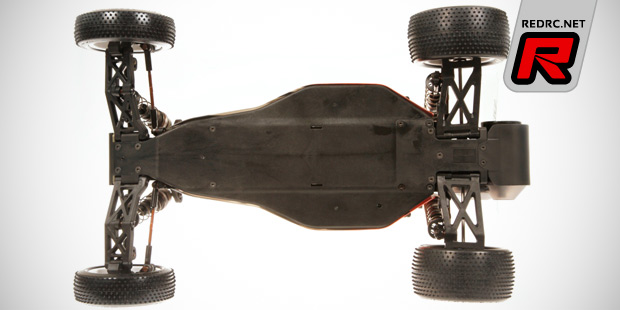

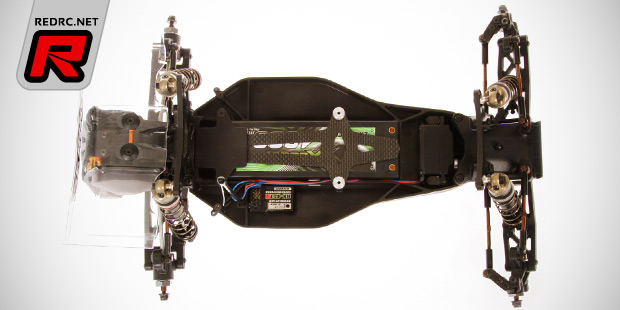

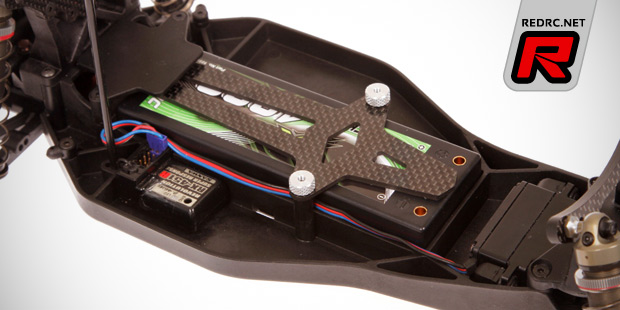

– Composite chassis plate

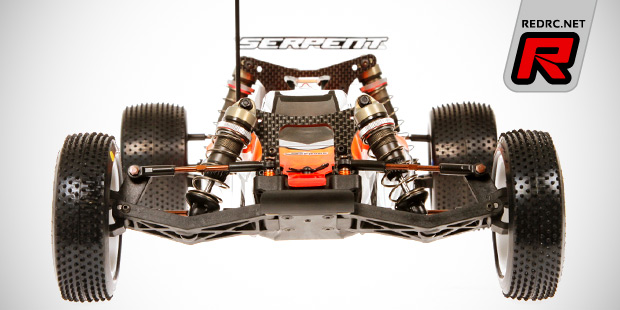

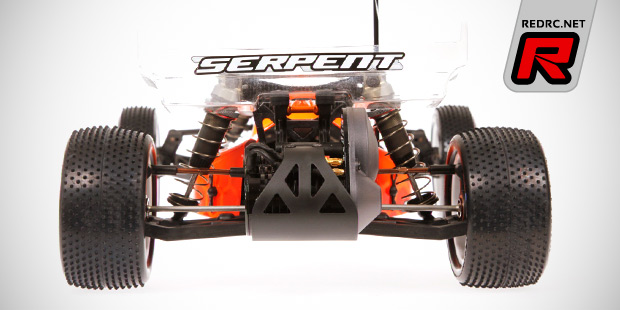

– 4mm Carbon fibre front and rear shock towers
– Dual system 12mm big bore shocks
– Spring steel front and rear track rods
– Caster block inserts come as 0, 2.5 and 5 degree version

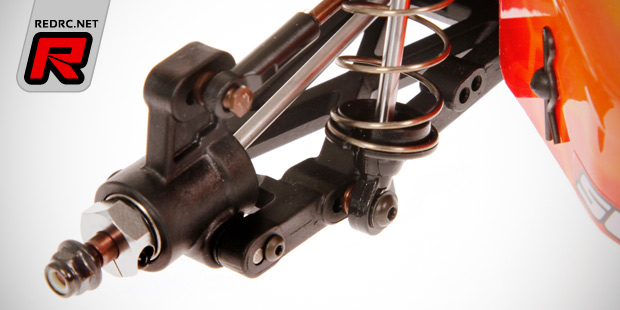

– Rear uprights with toe-in adjustment

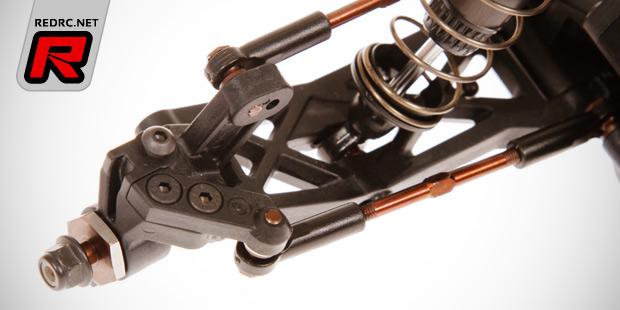

– Steering system with reverse swinging pivot system
– Adjustable Ackermann
– Spring steel wheel axles and rear 12mm alloy hex adapter
– Limited slip ball differential
– Optional anti-roll bars
– Rear aluminium suspension mounts with inserts
– Body shell and rear wing
– Composite rear wing is fully adjustable from 0 to 8 degree
– White nylon disc wheels included

Source: Serpent [serpent.com]
