March 10, 2015

RB BXR SLS5 V2 nitro off-road engine

RB BXR SLS5 V2 nitro off-road engine

Following the introduction of the BXR LS5 Plus the French company RB now announce the BXR SLS5 V2 engine. The V2 version of the super long stroke 5-port engine features a redesigned sleeve with updated intake ports timing and lateral intake ports orientation for increased torque and improved overall power. The engine also comes with a redesigned carburettor with double adjustment and an extra sprayer for make for better idling and easier adjustment. The package is rounded out by a new low centre of gravity engine head that still allows for very good cooling and the SLS5 V2 is best used on slippery or bumpy tracks where smooth acceleration yet a good amount of torque is needed.


RB BXR SLS5 V2 nitro off-road engine

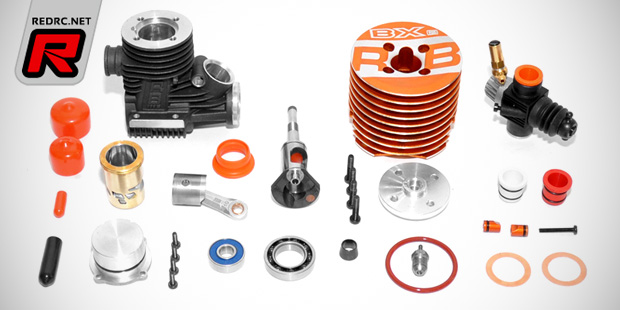

Specifications:
– Super Long Stroke technology
– 5 Ports + 2 bypass ports with Multi Exhaust System (MES)
– CNC machined piston

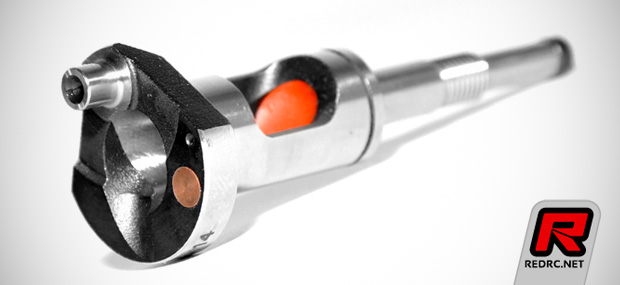

– 14.5mm lightened and silicone balanced turbo crankshaft

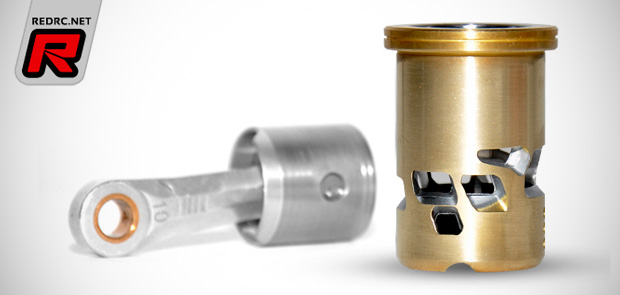

– Competition conrod

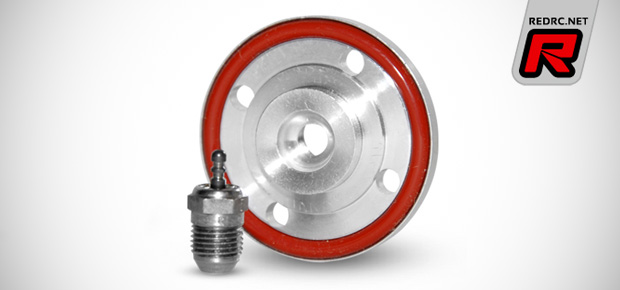

– Turbo combustion chamber with integrated O-ring
– Special off-road Turbo plug
– Ceramic 14.5mm highspeed main bearing
– Front dust protection rubber sealed bearing
– Low centre of gravity cooling head with 10 degree angled fins
– Lightweight but strong crankcase
– Double adjustment composite slide carburettor (9mm) with spraybar and long needle
– 6, 7 and 8mm restrictors

RB BXR SLS5 V2 nitro off-road engine

RB BXR SLS5 V2 nitro off-road engine

RB BXR SLS5 V2 nitro off-road engine

Source: RB [rbproducts.com]
