June 14, 2017

Reflex Racing RSD TC7.1 pitch control system

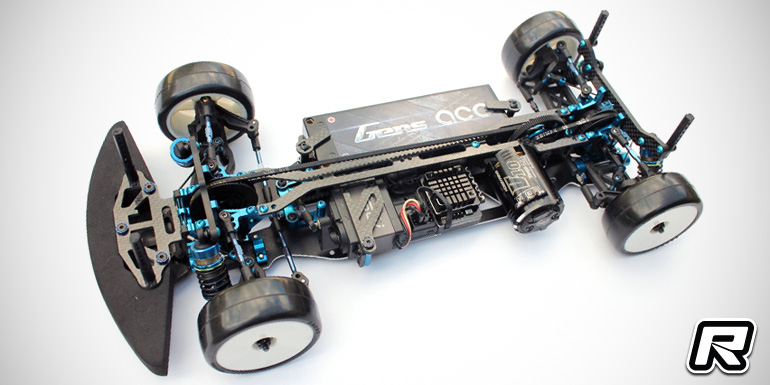

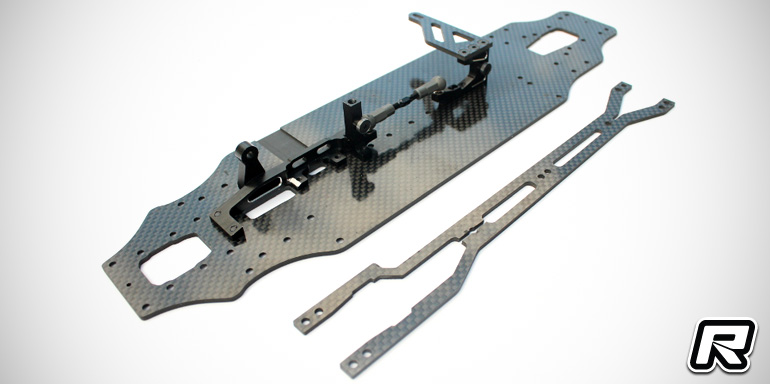

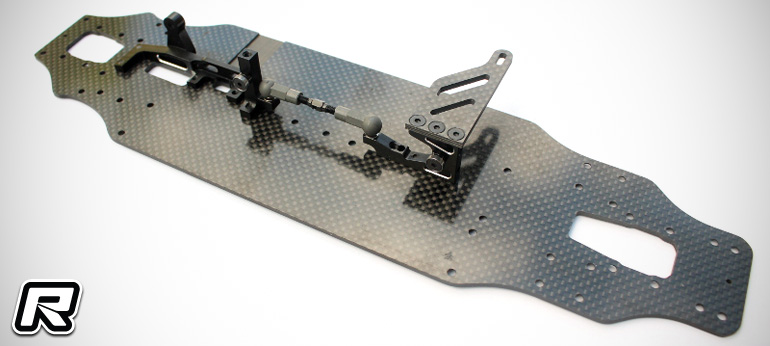

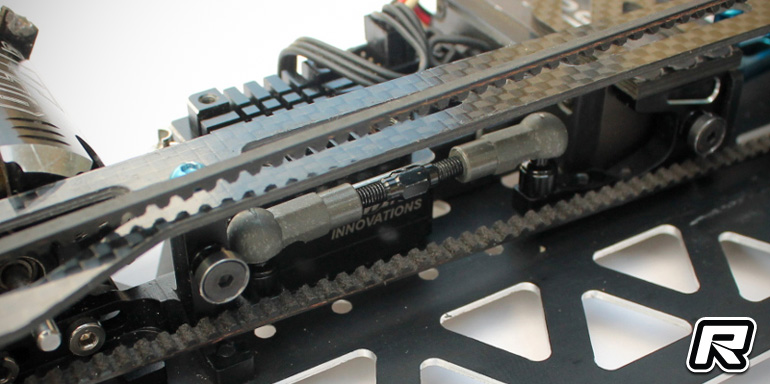

Reflex Racing have introduced the pitch control system for the Team Associated TC7.1 touring car. It is designed to increase fore and aft chassis rigidity while maintaining the same side to side flex on the chassis by tying the steering servo mount with the motor mount via a centre tie rod. The result is more forward bite and a more precise handling. Both the motor and servo mount are cut from black anodised 7075-T6 aluminium and they sport silver edge details for looks with the motor mount utilising a lowered layshaft position by 1.5mm in order to lower the gyroscopic forces of the spur gear and layshaft for quicker direction changes. The servo mount has a third screw on the carbon fibre upper plate for better securing and precision of the servo mounting and integrated screw holes in the motor and servo mounts allow the use of screws for centre battery stops. Additional lower motor mount securing screw positions make for more flex tuning options when used with the forthcoming optional RSD chassis and an increased motor adjustment range allows the use with smaller pinion and Spur combinations.

Source: Reflex Racing [reflexracing.net]
