November 15, 2017

Kyosho TF7.7 electric touring car kit

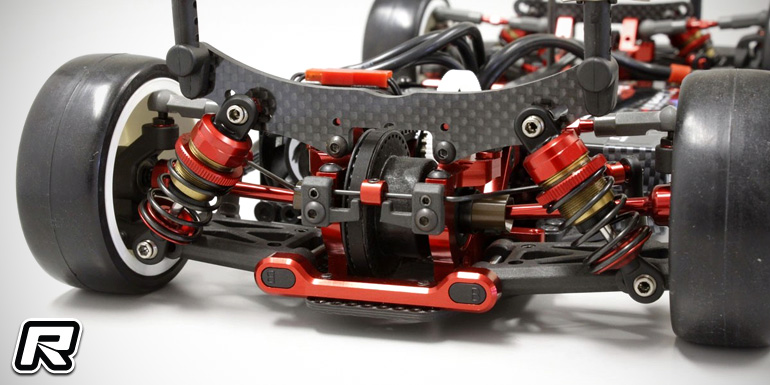

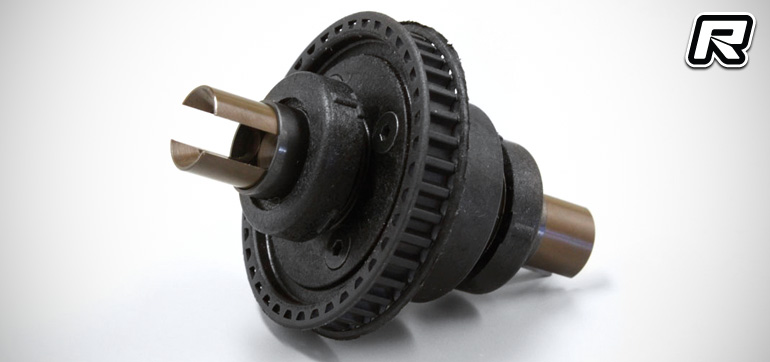

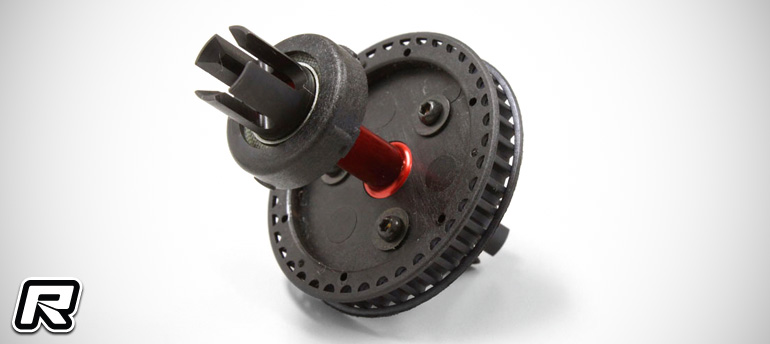

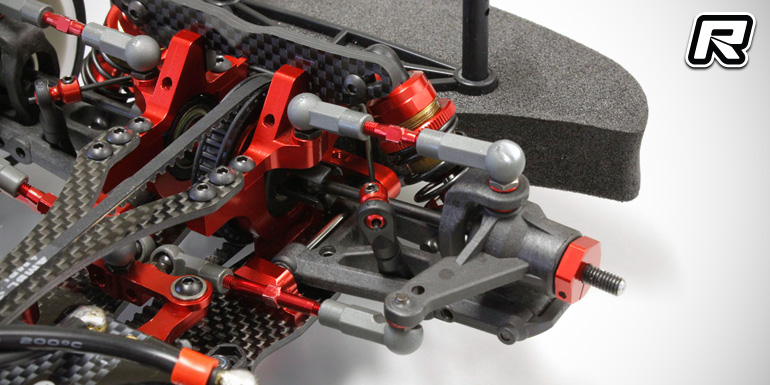

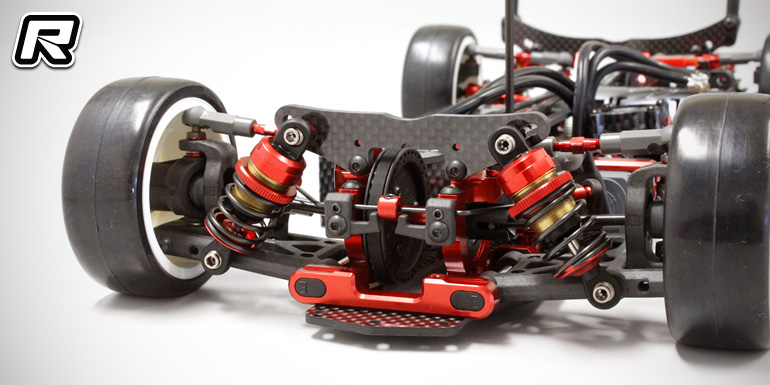

The latest evolution of Kyosho’s TF7 touring car is the TF7.7 that will hit stores soon. The kit features some subtle updates compared to the TF7 such as low-profile big bore shock absorbers, a centre stiffener for improved pitching rigidity, a 2-height motor mount that allows to mount the motor in a high and a low position, and also Active Rear Toe Control System compatible rear suspension holders. Also new are multi-functional front spool cups for pin or blade-equipped universal joints, as well as a rear diff gear with closing sleeve.

Main features:
– Proven 2-belt drive 4WD chassis, completely redesigned to be at the leading edge of competitive racing
– Symmetrical arrangement of screws used for installation of parts on chassis realises uniform roll characteristics. Grooves in chassis are also symmetrical

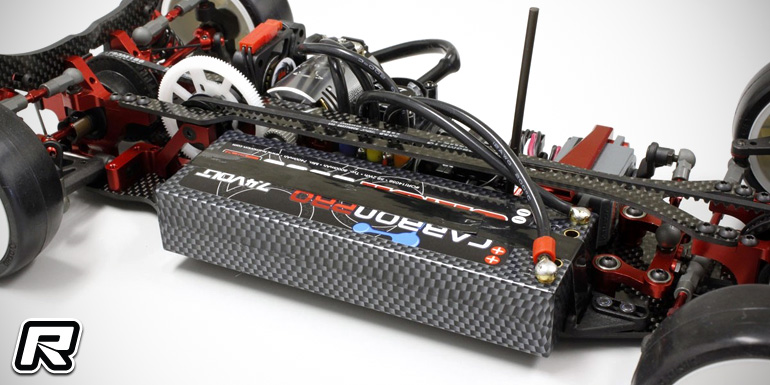

– Battery mount changed to standard type using fibreglass tape through the mount

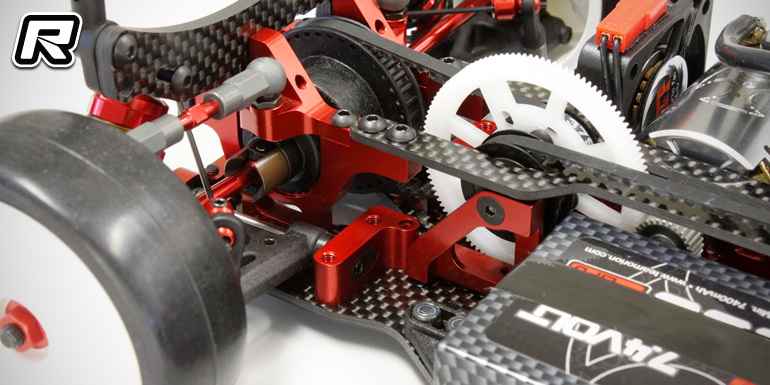

– Large diameter pulley realises longer life of the drive belt

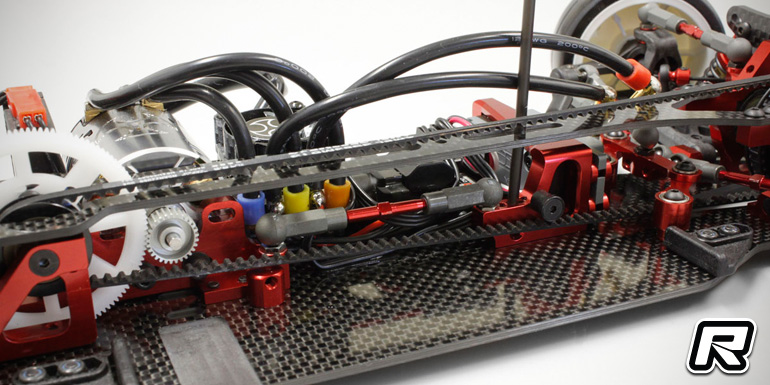

– One-piece aluminium motor mount meets the demands of high power output and minimises gear trouble during racing
– Front/rear interchangeable bulkheads
– Stabilisers are compatible with the Ultima and Lazer electric off road models

Source: Kyosho [kyosho.com]
