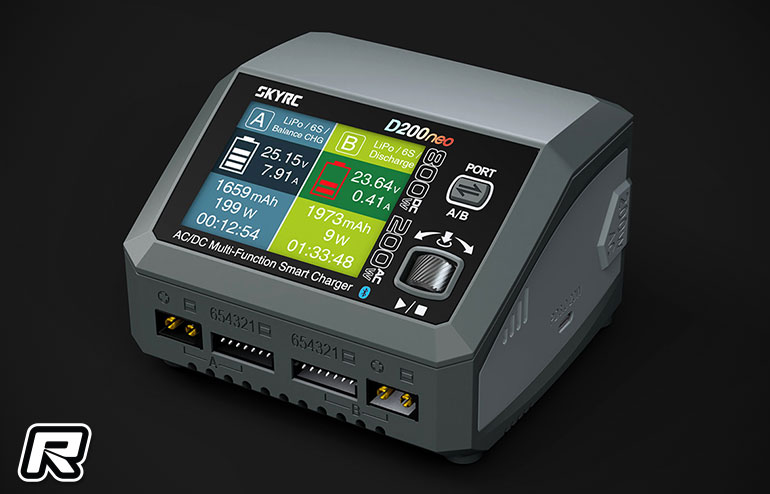

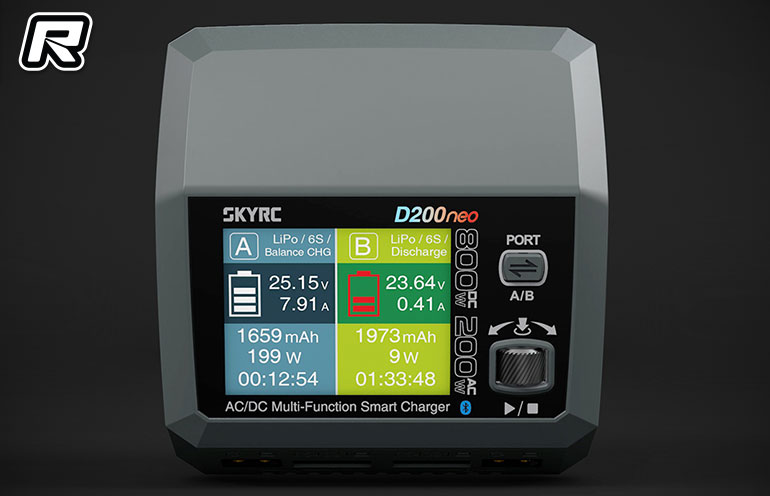

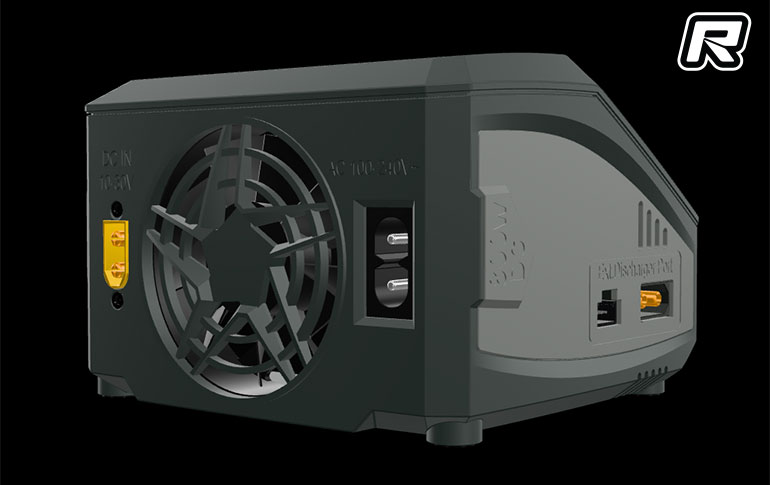

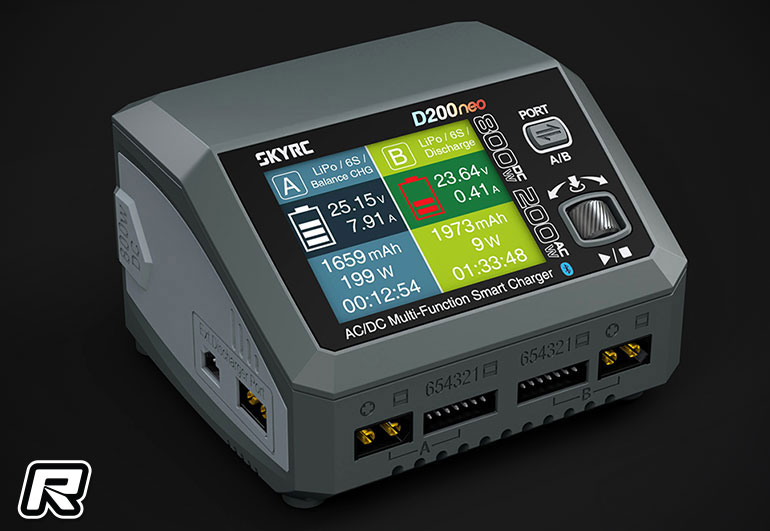

SkyRC D200neo AC/DC Multi-Function Smart Charger

Coming from battery charger manufacturer SkyRC is the D200neo AC/DC Multi-Function Smart Charger.  Packaged in a compact form and able to push up to 800W on DC and 200W on AC across its dual independent channels, it supports a fast charge current of up to 35A and a full range of chemistries.  Built for RC racers who require speed and versatility, with its Bluetooth app control, and power supply mode, the D200neo is more than a charger.  Connected to your computer through USB-C, you can monitor and control it with SkyRC Charger Master 3.  You can also update the charger OTA (Over the Air), and synchronise the latest software in real-time with the SkyRC cloud.  Dis/charging data can be analysed and displayed in graph form.

SPECS

Size and Weight
Case Material: Plastic

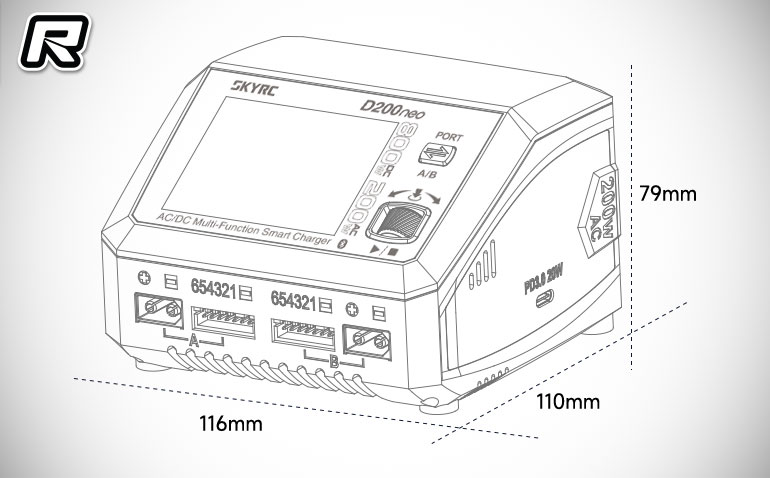

Case Size: 116*110*79mm
Weight: 602g

Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240×320 Pixel
Number of Colours: 262K

Power
DC Input Voltage: 10-30V
AC Input Voltage : 100-240V

Charger power:
AC: 100W MAX * 2
DC: 400W MAX * 2

Discharge power:
Main port: 10W
Balance port: 37W MAX
External discharge: 350W MAX

20W USB-C Power Delivery:
QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A 18W
PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A 20W

Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 4-15cells
Pb: 3S/6S/12S

Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A
Parallel：20.0-35.0A

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
External discharge：0.1-40.0A

Balance current
LiPo/LiFe/LiIon/LiHV：1.5A MAX

Operation
LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel
NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
Pb: Normal, AGM Charge, Cold Charge, Discharge

Source: SkyRC [skyrc.com]
