RUDDOG AC/DC Chargers

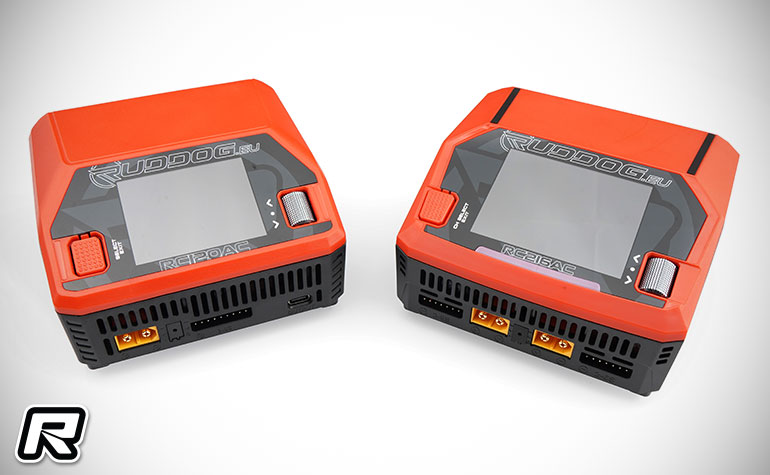

RUDDOG has introduced two new compact AC/DC chargers for your LiPo packs.  The RC216AC has up to 16 A per channel (up from 15 A on the RC215AC) for faster turnarounds while the RC120AC is a compact single-channel charger that delivers up to 20 A and 600 W on DC input.  Both feature an integrated AC power supply that lets you plug straight into the wall without extra bricks or cables.  They also have a crisp colour display with simple menu navigation makes setup quick, and a 65 W USB-C port keeps phones, radios, or action cams topped up.  The RC216AC has a built-in Qi pad can top up your phone or radio alongside a 65 W USB-C port.

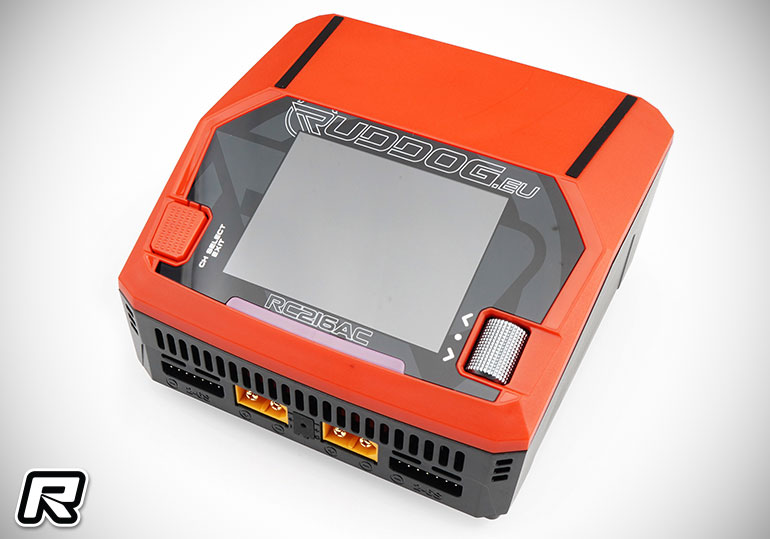

RC216AC Features
• Dual independent channels up to 16 A / 400 W each

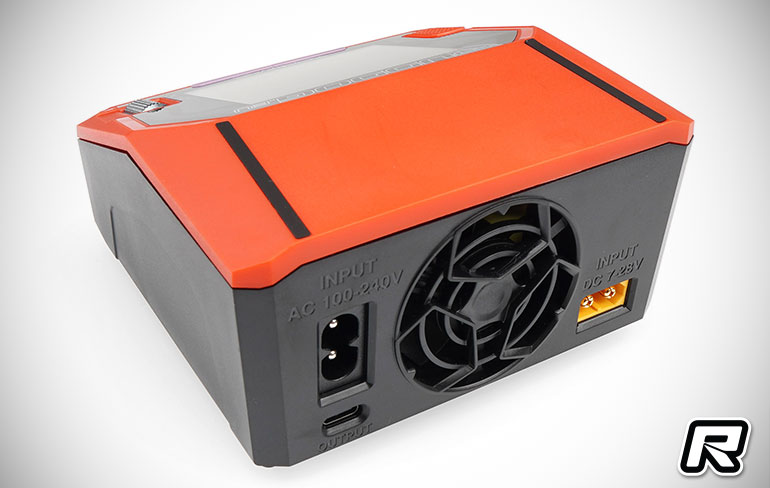

• AC/DC operation with integrated mains power supply (no external brick)
• Clear colour UI with metal control dial for fast navigation
• USB-C fast charging up to 65 W (PD)
• Integrated Qi wireless charging for phone or transmitter
• Chemistry support: LiPo/LiHV/LiIon/LTO 1–6S; Pb 1–10S
• Discharge modes including regenerative (recycle)
• Inputs: DC 7–28 V (up to 32 A), AC 100–240 V

Technical data
• Charge current: 0.1–16 A (@ 400 W per channel)
• Discharge power: 0.1–3 A (@ 15 W per channel)
• Recycle/regenerative discharge: 0.1–16 A (@ 400 W per channel)
• Built-in wireless charging
• Built-in 300 W power supply
• Input voltage (AC): 100–240 V max @ 3.3 A
• Input voltage (DC): 7–28 V max @ 32 A
• Battery types: LiPo, LiHV, LiIon, LTO 1–6S; NiMH 1–16S; Pb 1–10S
• USB-C output: 65 W max (20 V / 3.25 A)

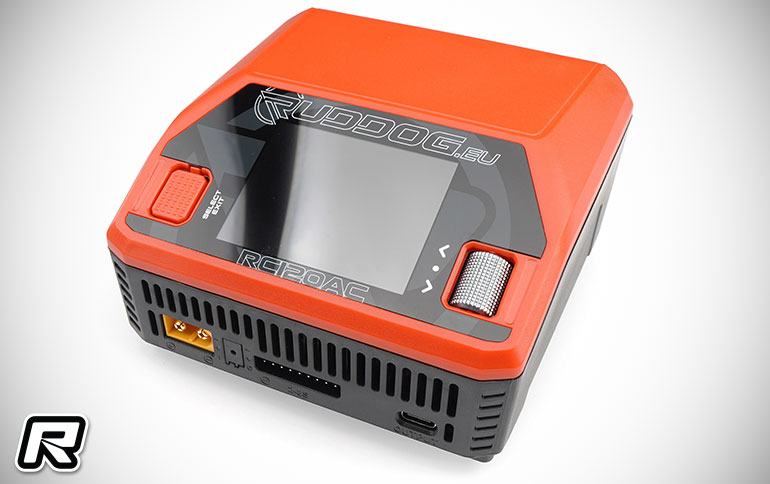

RC120AC Features
• Single channel up to 20 A

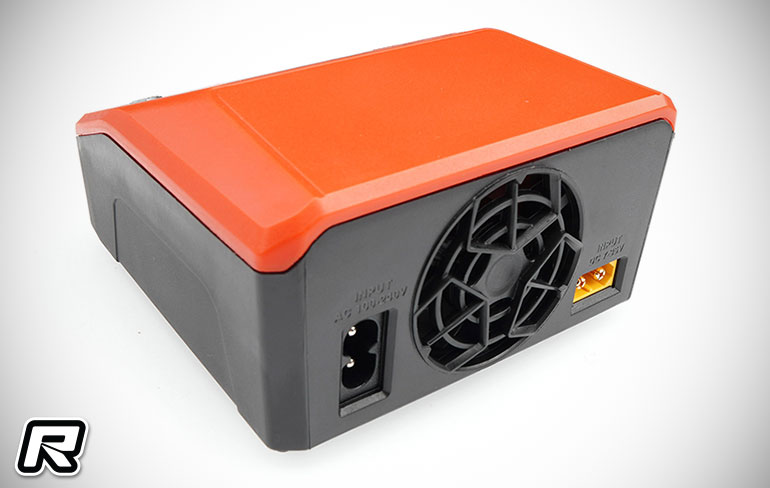

• AC/DC operation with integrated mains power supply
• 2.4″ IPS colour display with intuitive menu dial
• USB-C fast charging up to 65 W (PD)
• Chemistry support: LiPo/LiHV/LiIon/LTO 1–6S; Pb 1–10S
• Discharge modes: normal 20 W, regenerative recycle up to 600 W
• High-precision balancing (1000 mA, <0.005 V)
• Compact footprint; XT60 output with dedicated balance port

Technical data
• Charge current: 0.1–20 A (Up to 600W DC Power)
• Discharge power: 0.1–3 A (@20 W) | 0.1–20 A (@600 W in recycle mode)
• Built-in power supply: 200 W
• Input voltage (AC): 100–240 V max @ 2.5 A
• Input voltage (DC): 7–28 V max @ 25 A
• Battery types: LiPo, LiHV, LiIon, LTO 1–6S; NiMH 1–16S; Pb 1–10S
• USB-C output: 65 W max (20 V / 3.25 A)
• Display: 2.4″ IPS LCD, 320×240 px
• Balance current / accuracy: 1000 mA, <0.005 V
• Dimensions / weight: 108×113×62 mm / 500 g
• Connectors: XT60 output, XH balance port

Source: Ruddog [ruddog.eu]
