Infinity IF18-3 Suspension Parts

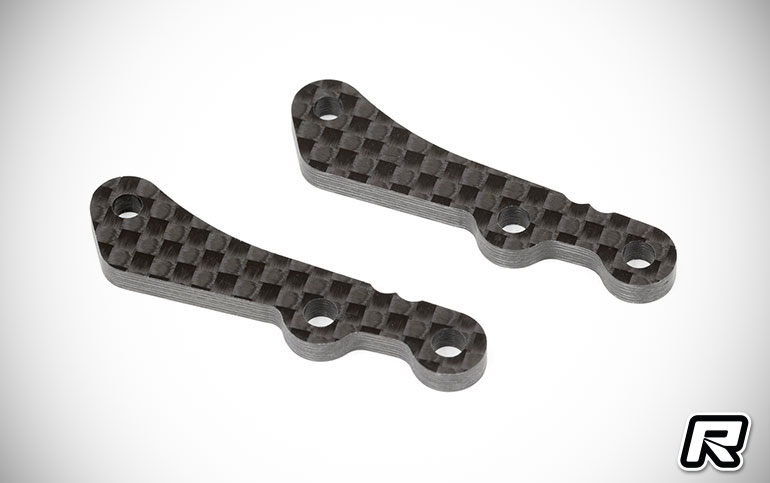

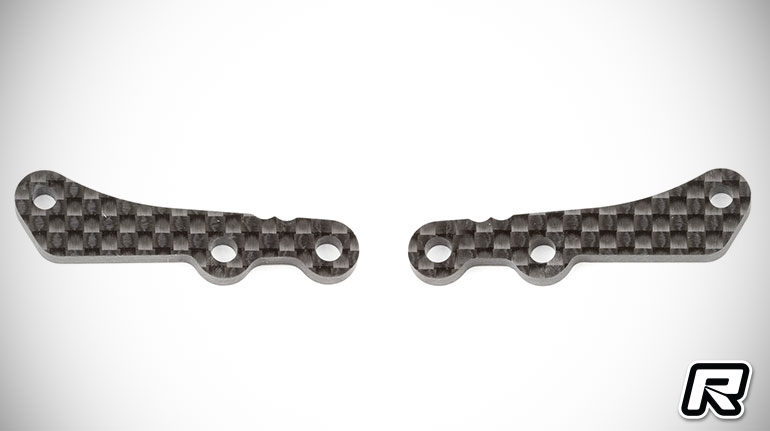

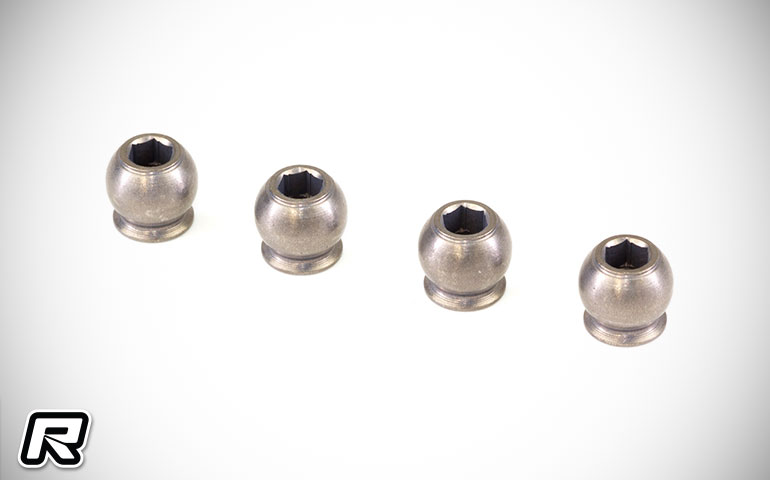

Infinity has introduced two new parts designed to enhance the performance and competitiveness of the suspension system on its IF18-3 1:8 Onroad chassis.  Updated carbon lower shock mounts are machined from approximately 0.1mm thicker plate to ensure greater strength and precision in set-up.  New low-friction treated balls for the lower uniball have also been developed, with revised dimensions to eliminate any possible interference with the wheels.  Special surface treatment significantly reduces friction, enabling smooth suspension operation while the ball centre height is set lower at 2.95mm compared to 3.1mm for the previous model.  The prevents interference with the wheel and is also ideal when converting the IF15-2 rear upper rod to 5.8mm.  The flange diameter at the base is reduced by 1mm to ensure clearance with the wheel.  The inner side features a low-profile design that increases the slant angle, enhancing grip performance during acceleration.

Source: Creation Model [creationmodel.net]
