September 25, 2025

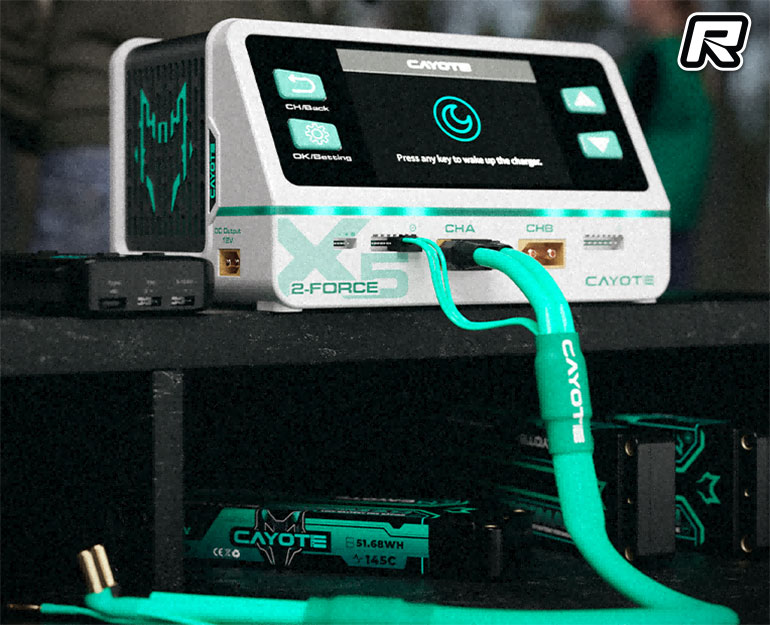

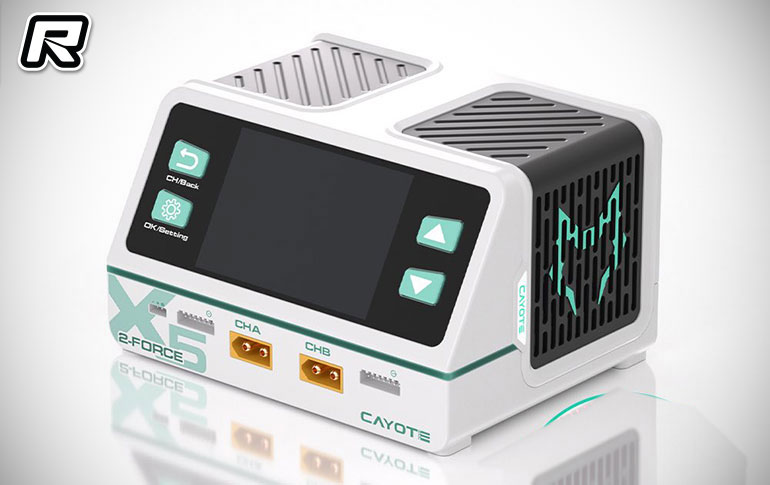

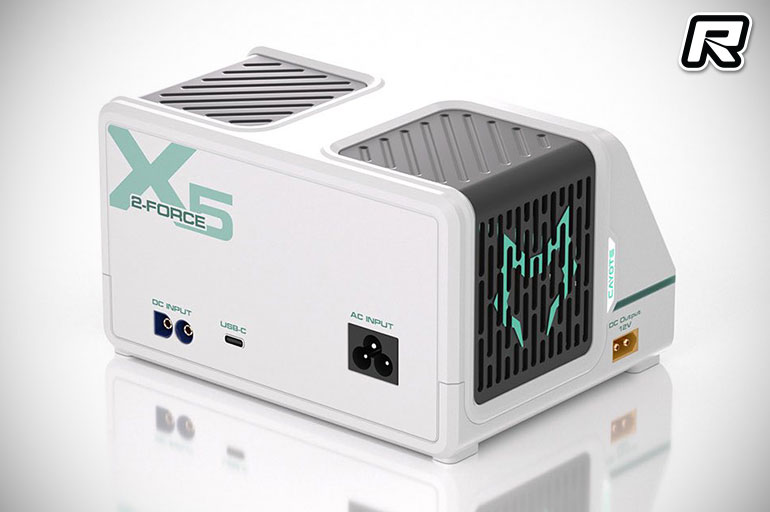

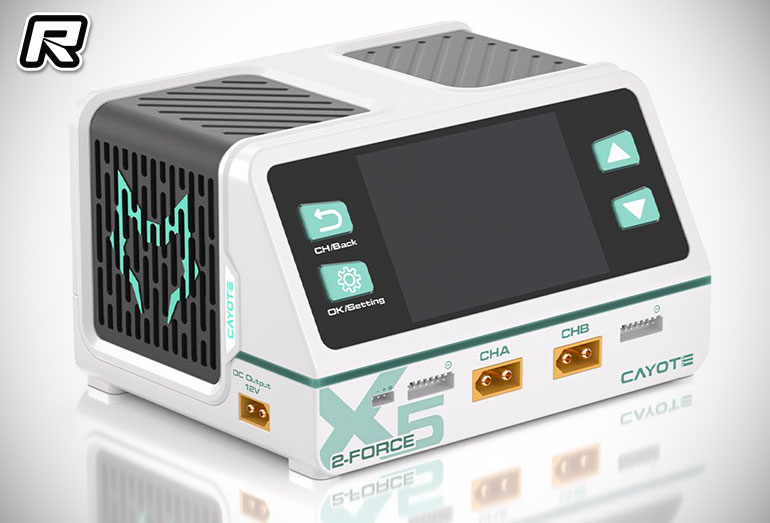

Team Cayote 2‑Force X5 Dual Channel Smart Charger

Having had it on display at the recent eBuggy World Championship in Portugal, Team Cayote has officially released its 2-Force X5 dual-channel smart charger.  Designed for professional RC model racing users, it combines high-performance power management technology, exceptional user interaction, and a variety of operational modes.  Weighing only 1.5 kg is features high-gloss coated polymer shell with scratch-resistant surface treatment, providing a glossy and sleek exterior that reflect quality and style.  3.5”IPS screen provides clear visibility even under direct sunlight while a newly designed UI with 4 functional buttons offer intuitive and smooth operation.  Supporting LiPo, LiHV, LiFe, NiMH, and Li-Ion Battery Types, it also features a servo test port & 12V DC output.

Cayote 2-Force X5 Specs
Input Voltage: AC 100-240V 50/60Hz 6.5A (Max)DC 12-30V 65A (Max)
Output Voltage: DC 5-30V
Max Charging Power: AC 500W / DC 700W × 2(AC charging limited to 400W when DC 12V output is active)
Max Charging Current: 40A (normal), 55A (Synchronous)
Max Discharge Power: 70W × 2 (internal), 500W (external)
Max Discharge Current: 8A
Balancing Current: 2A / Cell Max
Supported Battery Types: 1-6S LiPo / LiFe / LiIon / LiHV1-18S NiMH
USB-C Output: 5V / 2A (10W)
XT60 DC Output: 12V / 100W
Servo Test Port Output: 5V / 0.5A (2.5W)
LCD Screen: 3.5-inch IPS sunlight-readable display
Operating Temperature: -10℃ ~ 45℃
Storage Temperature: -20℃ ~ 60℃

Source: Team Cayote [cayote.com]
