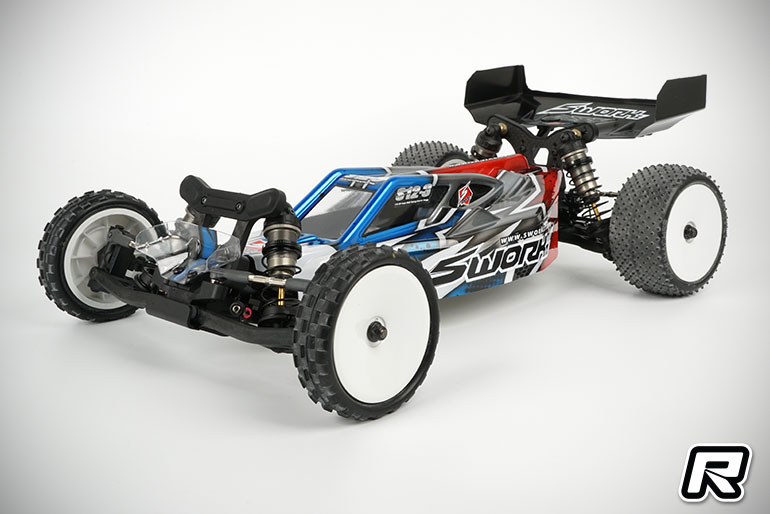

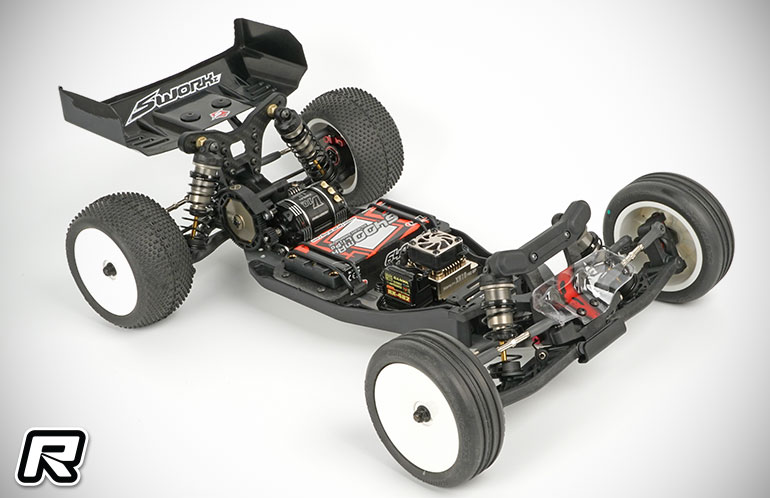

Sworkz S12-3C 1:10 2WD Carpet Buggy

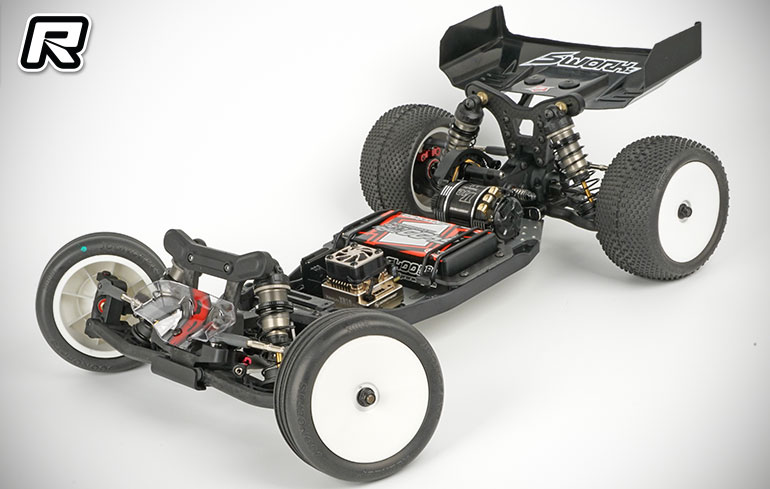

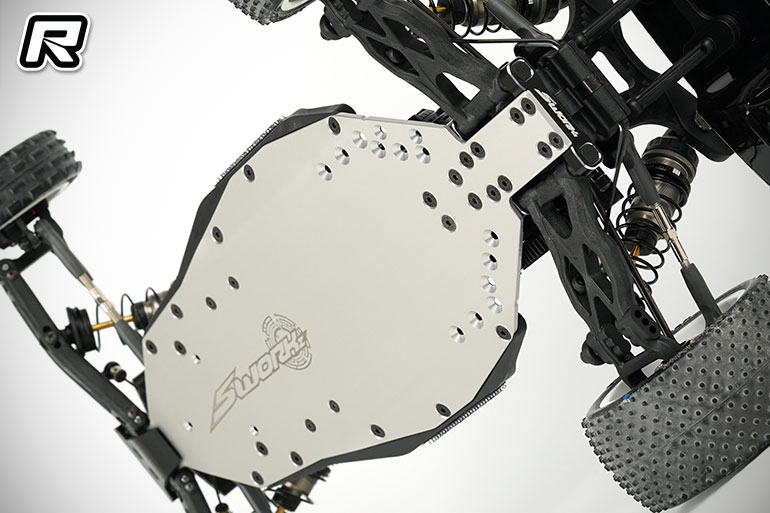

New from Sworkz comes their latest 1:10 2WD Buggy kit offering the S12-3C (Carpet Edition). Building on the success of the S12-2C EVO platform, this model represents a complete redesign, delivering enhanced cornering speed and effortless handling on carpet and high-traction surfaces. At the core of the S12-3C is a precision-engineered T7075 silver anodised aluminium chassis, designed for optimal performance and flexibility. The gearbox can now be additionally mounted to the chassis to fine-tune flex characteristics. Optional tuning plates allow for further customisation of chassis flex, giving racers the ability to adapt the car’s behaviour to different track conditions. The lightweight chassis also supports up to six different battery placement configurations, enabling precise balance adjustments, making the S12-3C a versatile platform for competitive carpet racing. The S12-3C features Sworkz’s newly designed 13mm BBS Big Bore Shock System, equipped with Emulsion Precision Plastic Shock Caps and reinforced shock pistons for improved durability. Teflon-coated shock shafts ensure ultra-smooth damping response, while the included 4mm carbon shock towers provide exceptional strength. The kit also includes protective shock tower covers and the latest 13mm BBS Black Line springs with rotation-fixed spring holders for consistent performance and a huge improvement on handling of jumps.

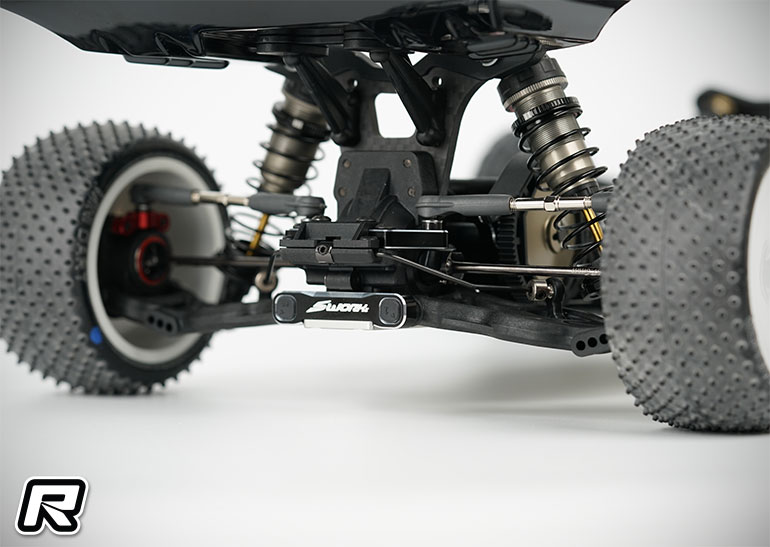

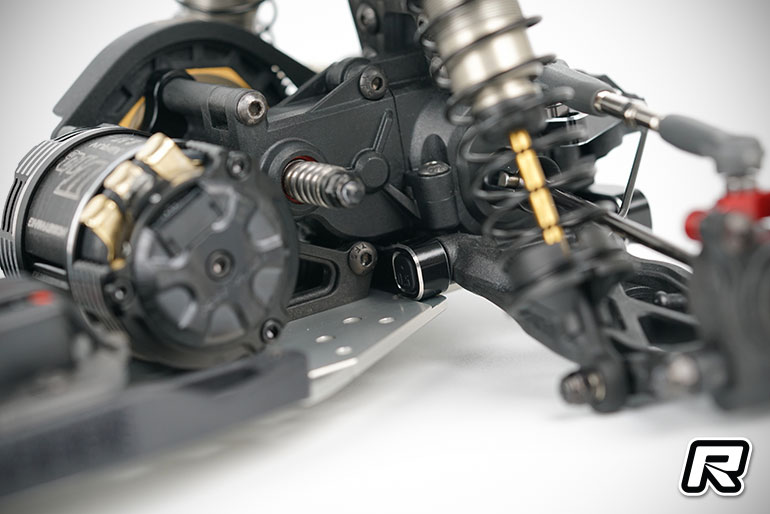

A new 5.5mm linkage ball stud and a robust 3.5mm turnbuckle system enhance steering precision and overall stability. The full aluminium adjustable Ackermann and steering plates offer fine-tuned and smooth control in high bite conditions. The quick-release gear differential system can be mounted in four different positions, offering flexibility for various track setups. The 2-pad slipper clutch features hard-anodised plates, heat-resistant pads, and a spur gear protector engraved with the Sworkz logo. Angled lower arms lower the shock mounting position, reducing the centre of gravity and improving stability. The gearbox has been optimised for ideal weight distribution, balancing size and strength. The rear hub height can be modified using the innovative Synthesis Rear Hub System and modular rear CVDs. A newly designed front and rear sway bar holder systems are included for enhanced cornering control.
S12-3C Kit Features
T7075 silver anodised & lightened aluminium chassis
Adjustable flex system

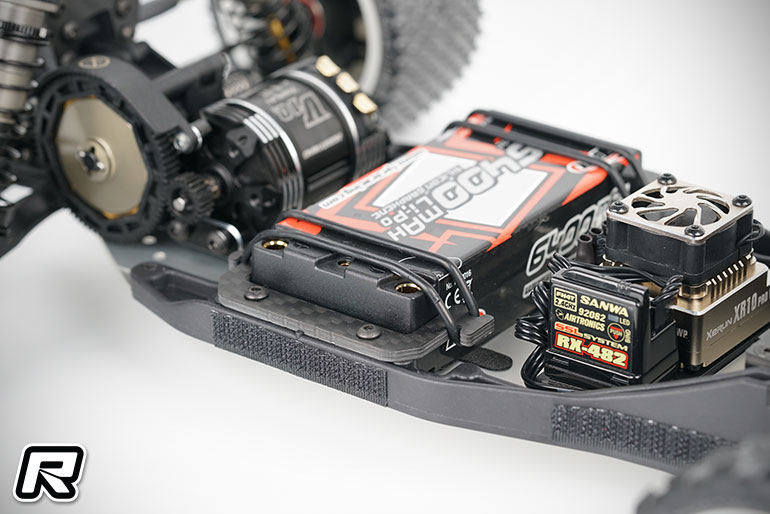

6 different battery positions
Quick release carbon battery mount
Gear Differential with aluminium cover
Strong and Quality optimised laydown gearbox
Balanced motor position for all grip conditions
Quick differential release system
Adjustable differential position

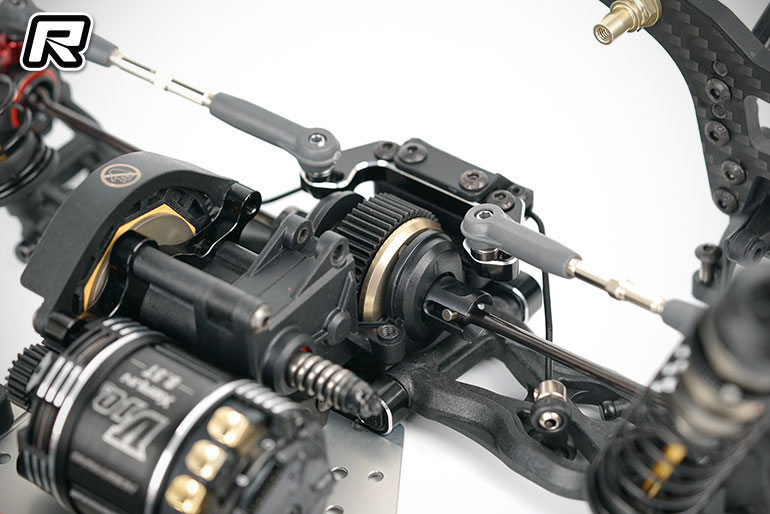

2 Pad Slipper System with hard anodised plates
Slipper Anti-Clock rotation adjustment
High temperature resistant slipper pads
Spur gear protection with laser Logo

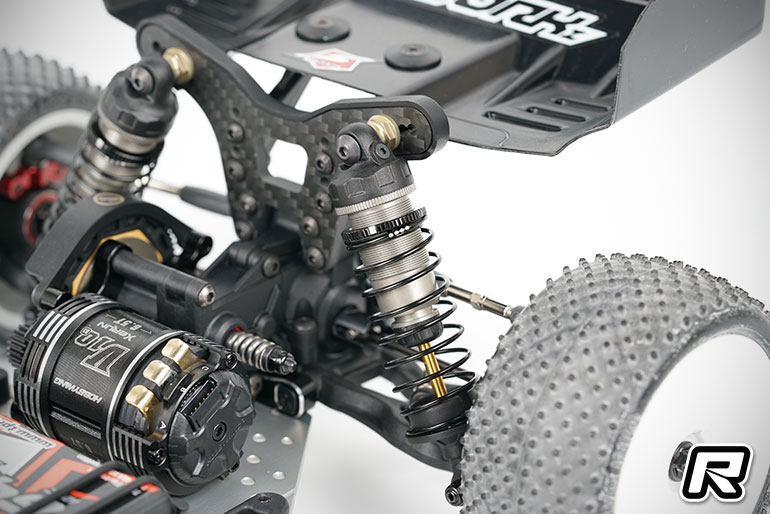

Brand new design SWORKz 1/10 BBS 13mm Big Bore Shock System
New 13mm BBS Black line shock springs
Precision plastic emulsion shock cap system
Teflon hard coated shock shaft
Hard coated shock body
Hard anodised stock studs
Unique designed shock stud screws

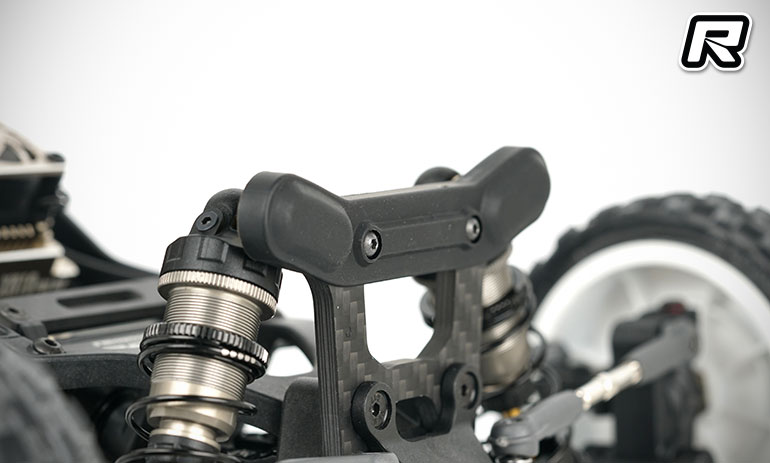

New Front and Rear 4mm carbon shock towers with wide design
Aluminium Ackerman rack and steering arms
Carbon steering knuckle plates
New carbon servo mount
Super light anodised front wheel axles with adjustable hex system
Front and Rear lower arms in longer, angled design
Narrow front and rear bulkhead design
Fully adjustable square aluminium front and rear toe in plates
New Synthesis Rear Hub System with aluminium linkage holders
Rear adjustable hubs system with CVD drive shafts

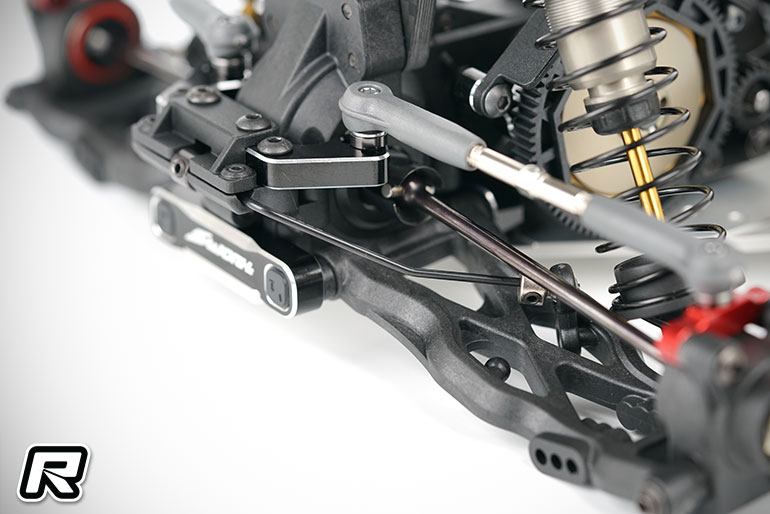

New designed front and rear sway bar holder
5.5mm ball stud system
Strong 3.5mm turnbuckle system

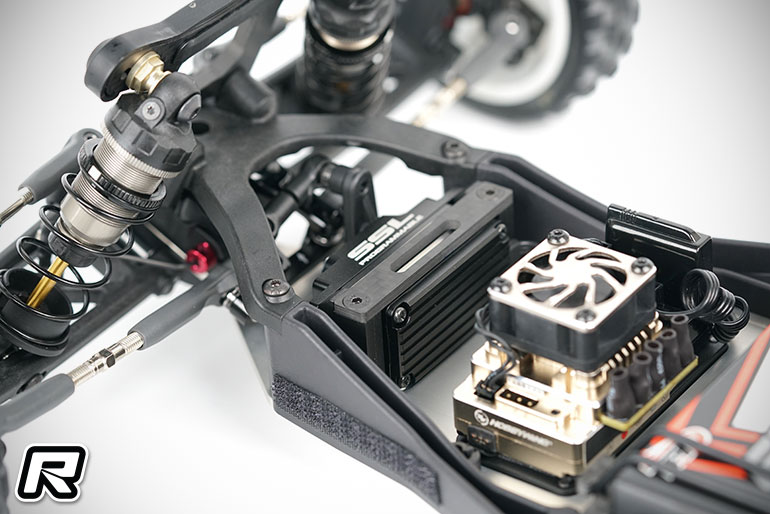

Quick release electronic plate
Optional Servo balance weight plates
Adjustable rear wing height and angle
Front wing mount with 65mm front wing
New Body shell with optimised aerodynamic design
Source: Sworkz [sworkz.com]
