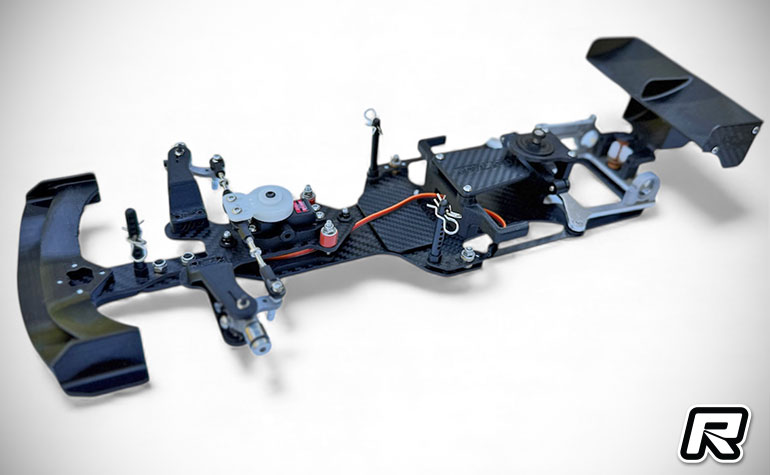

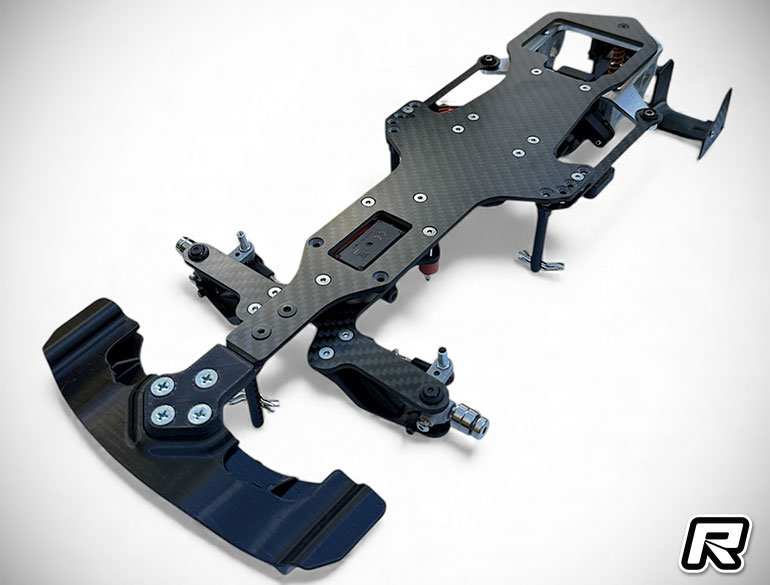

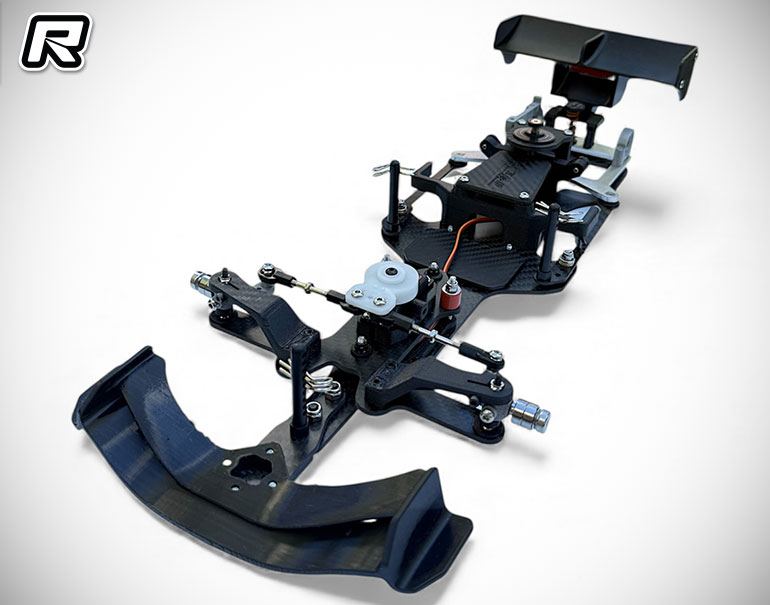

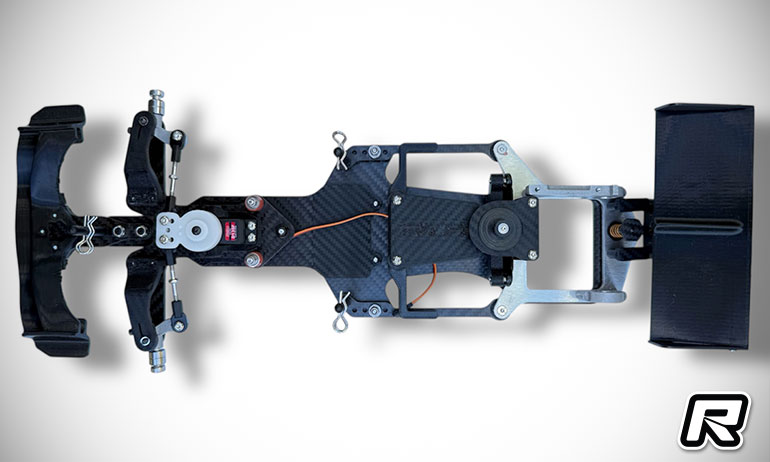

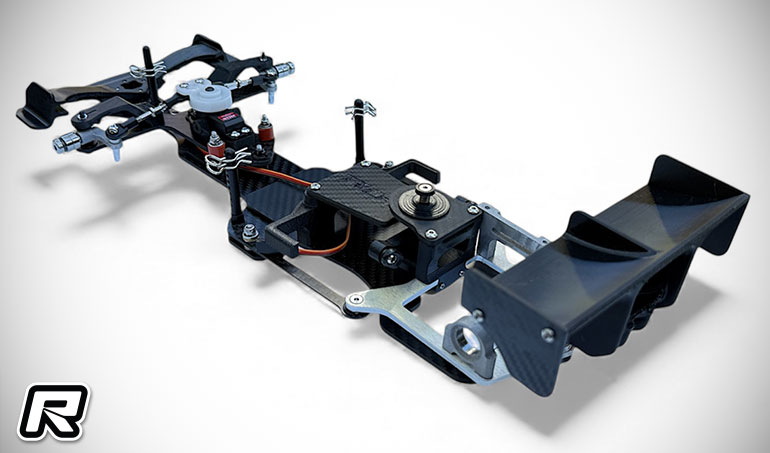

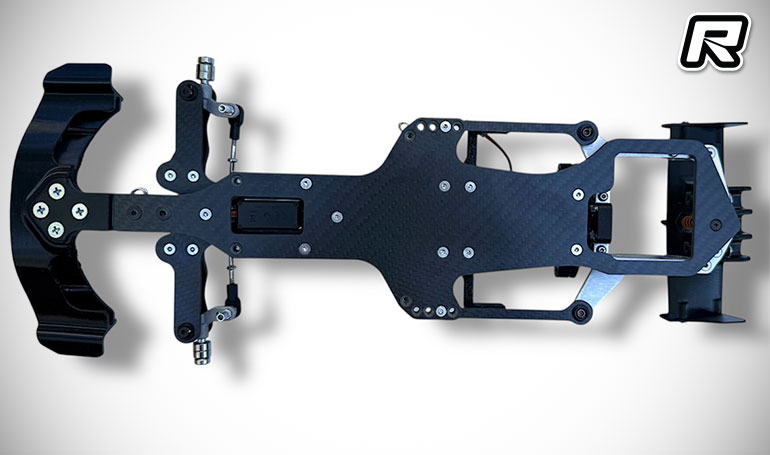

ALF1 ’26 1:10 Formula 1 Chassis

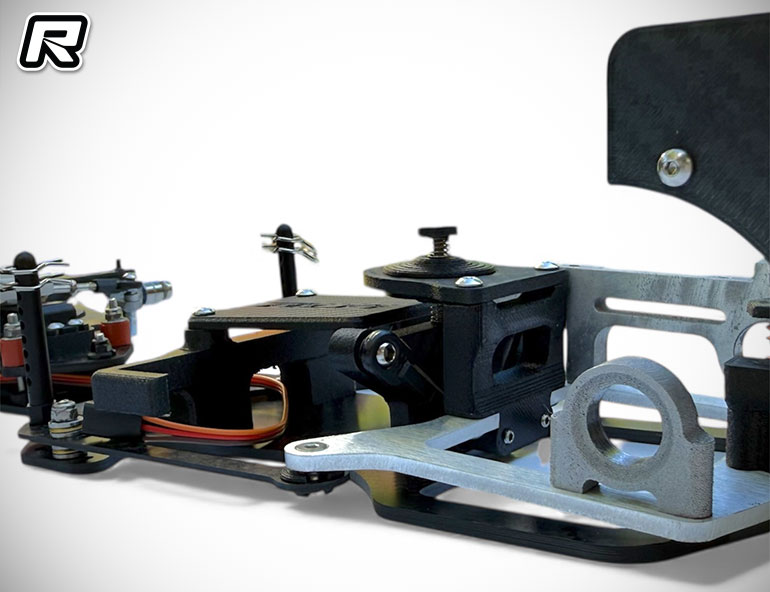

New from Californian brand ALF1 Racing Designs comes their ALF1 ’26 1:10 Formula 1 Chassis Kit.  Designed for the serious racer, they say the new kit combines cutting-edge materials like carbon fibre, 7075 aluminium, and advanced 3D-printed composites to deliver an unparalleled balance of low centre of gravity, rigidity, and tunability.  With each bespoke kit meticulously packaged to order, it features a one piece carbon fibre chassis design and floating rear pod design with included rear bump springs.  The Rear V-link design has adjustable rear roll-centre towers.  Up front there is a Single plane front suspension design with silicone roll dampers with soft, medium, hard front silicone dampers options included.  With durable one piece upper arms, 6,7,8 degree caster arms are included in the kit.  Shipping with a servo include you get a 1:12 scale mini servo for reduced weight and lower centre of gravity.

Addition ALF1 ’26 Kit Features
Removable electronics tray
Adjustable shorty battery box [standard and LCG included]
Adjustable rear damper disc
Includes soft, medium, hard front silicone dampers
Adjustable front roll center standoffs [includes +1,0,-1mm]

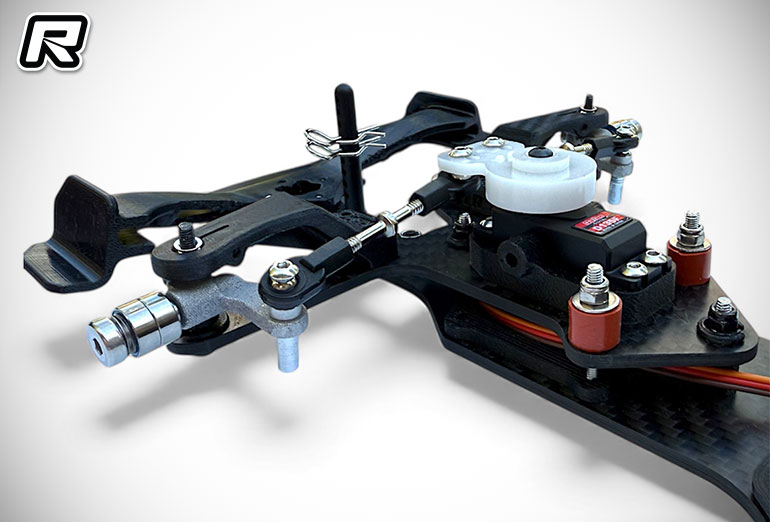

Front trailing axles [3mm]
Machined and ground front axle bolts with 1mm adjustable trackwidth
TPU front and rear wings included
Injection molded body posts
Compatible with 0.25” rear axle designs [axle not included]
Compatible with 10th scale F1 bodies [body not included]
Compatible with 104 style front and rear wings

Source: ALF1 Racing Designs [alf1racingdesigns.square.site]
