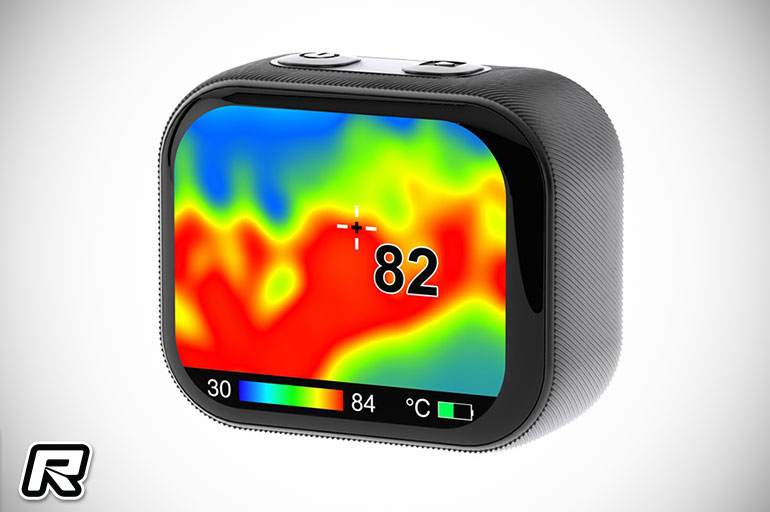

SkyRC ITV500 Compact Handheld Thermal Imager

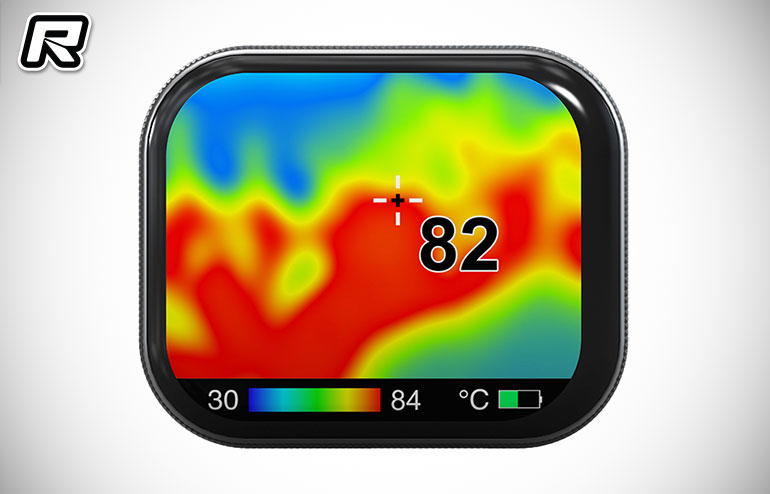

SkyRC has added this compact handheld thermal imager to its product line-up, the ITV500 designed to help RC drivers identify heat-related issues before failure occurs.  Using FIR thermal imaging technology, the ITV500 visualises temperature differences across motors, ESCs, batteries, and connectors in real time, allowing drivers to see the temperature instantly and detect hidden hotspots.  With contact-free temperature measurement and a touch-based interface, it provides a practical tool for identifying abnormal heat buildup during setup, testing, and trackside maintenance.  Rechargeable via USB-C and upgrade firmware effortlessly with UF2 drag-and-drop, the ITV500 weighs just 38 grams and features a bright 1.83″ touch display.

SkyRC ITV500 Specs

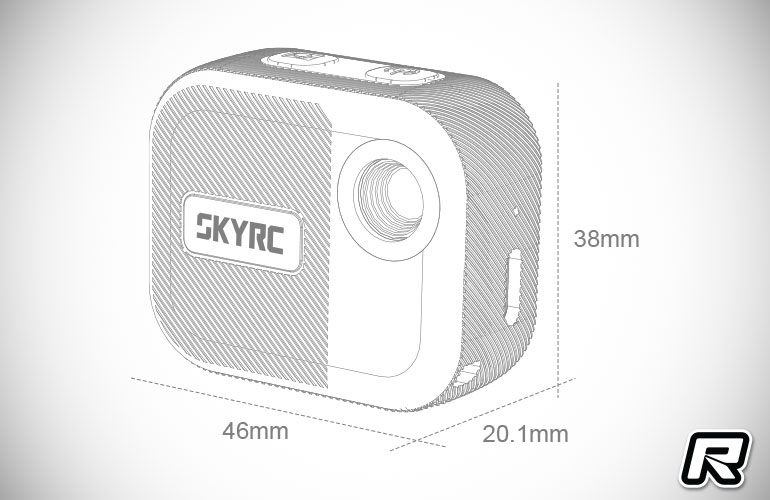

Size: 46 × 38 × 20.1 mm
Weight: 38 grams (Approx)
Display Type: 1.83″ capacitive touch screen 240 × 284 pixels
IR Resolution: 32 × 24 pixels
Thermal Sensitivity: 100mK @ 1Hz
Field of View: 55° × 35°
Frame Rate: 8 FPS
LCD Display: 240 × 284 pixels
Battery: 600 mAh rechargeable lithium battery
Charging Interface: USB Type-C
Charging Input Voltage: DC 5V
Temperature Measurement Range: -20°C(-4℉) ~ 300°C(572℉)
Measurement Accuracy: ±2.0℃(3.6℉)
Measuring Distance: <5 m (for high accuracy, within <20 cm)
Languages: EN / CN / FR / DE / ES / JP

Source: SkyRC [skyrc.com]
