Team Orion fuel systems

Team Orion fuel systems

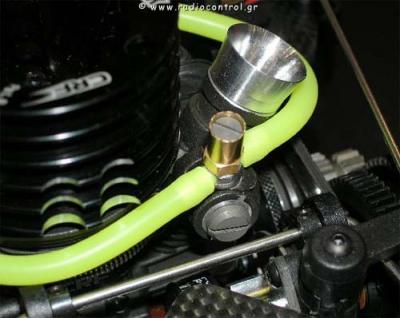

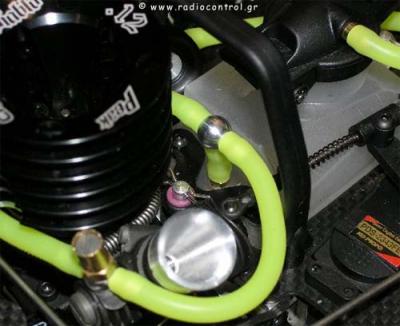

Team Orion seem to have been thinking a lot about fuel lines and back pressure lines, what with the release of their constant pressure device (CPD) that we showed you yesterday and now this multiple line fuel tubing system. The system uses a t-shaped nipple to split the fuel from the tank and then a 2 ended fuel inlet nipple on the carburettor which together tries to ensure that the fuel makes it from the tank to the engine even when going through the fastest of bends. How legal this is i dont know, as the tech inspection at events usually measure the tank capacity along with the fuel line to the carburettor and with 2 lines it may pose a problem?

Click more to see more pics of the system…

Team Orion fuel systems

Team Orion fuel systems

Image: Radio Control [radiocontrol.gr]
