Greyscale Racing MRCG

Greyscale Racing MRCG

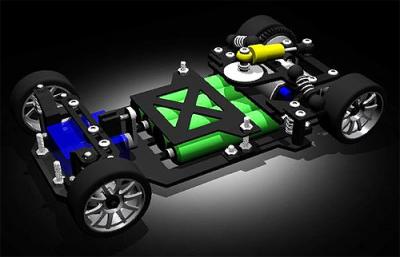

Coming soon from Greyscale Racing is the MRCG, a pan chassis aimed at open-class racers who need a lower CG, more responsive handling, and more tuning options than a standard Mini-Z. Based on the Mini-Z MR02, the car features a mid motor layout and narrow battery configuration for more responsive handling as well as dual flex plate suspension, similar to that seen in the Mini-Z F1 cars. This is a true race car, with the ability to adjust the weight bias by adjusting the placement of the cells, while the front end of the car allows adjustment of the ride height, independant of the spring preload.

Click here for the full feature list…

– Mid-motor configuration for agile handling
– Narrowest battery configuration possible to increase responsiveness
– Dual flex-plate suspension similar to Mini-Z F1
– Compatability with many rear suspension configurations: side springs, tri-shock system, disk damper, oil damper, or any combination of those
– Battery pack placed far more rearward than in Mini-Z MR02
– Adjustable weight bias by shifting battery pack fore and aft
– Electronics plate cinches down on any AAA or lithium-polymer pack that fits
– Unique 3-piece front end allows ride height to be adjusted fully independently of spring preload and front end maintenance without kingpin removal
– Thin fiberglass tierod and electronics plate, lots of Delrin and minimal hardware used in order to keep chassis weight low
– Compatability with many servos and electronics packages
– 98mm wheelbase

Parts included:
– G10 fiberglass chassis pieces: Main chassis, Front lower bulkhead, 0°, -1° and 1° tierods, Electronics plate, Rear body/damper mount, Body mount clips (2), Flex plates (2), Rear pod bottom plate, Rear pod top plate (for disk damper), Rear pod top plate (no disk damper)
– Delrin pieces: 0° caster blocks, servo mounts, tierod horn, standoffs, differential height adjusters (for rear pod; 4 settings)
– Aluminum pieces: Rear pod left and right side plates
– Hardware: Stainless steel screws and nuts

Additional parts required:
– Mini-Z MR015/02 front knuckles, kingpins, springs, spring perches, c-clips, rear ball differential
– Mini-Z MR01/015/02 wheels, tires, bearings
– Micro servo (no wider than 23mm), servo saver
– Receiver and ESC (or combo), compatible transmitter
– Mounting tape for electronics
– 130-size motor, 48dp 2mm shaft pinion
– Battery pack
– Body
